Pendock Washroom - Education Cubicle & Washroom Systems

Verified by manufacturer 5 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Education cubicle and washroom system.

Jump to:
+44 (0)1952 580 590 Website

Application

Suitable for infant school washrooms.

Description

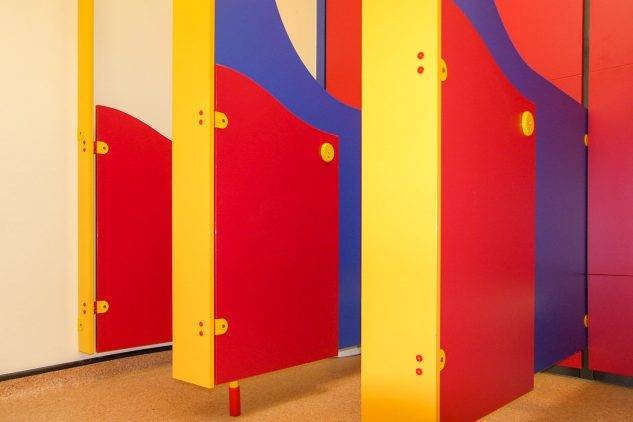

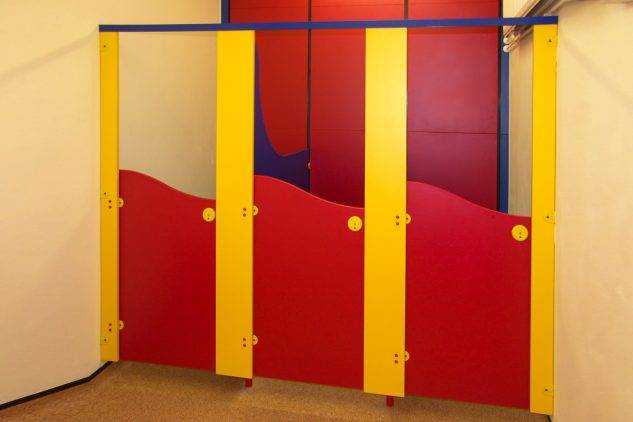

From nursery and pre-school through to sixth-form college and beyond, educational washrooms have their own specific requirements. Pendock's dedicated washrooms for education range is designed to meet the highest standards of manufacture and quality while complying with prevailing regulations and offering a wide choice of design options.


Flexibility of design and the ability to customise the panel finishes help to improve the educational washrooms. By creating attractive and practical designs specifically for use by children and young people, which are durable, hygienic, safe and affordable, the washroom provides a range of solutions. The range can be specified using 18 mm thick melamine or high-pressure laminate-faced chipboard (MFC and HPL), as well as 12 mm thick compact laminate to meet all budgets and specifications while allowing maximum freedom.


To complement the education cubicle, vanity units and back panels are also available, which are designed to fully integrate fully with our cubicle ranges. Resin and other material options can also be specified. Using specialist forming and finishing techniques, the vanity unit tops are manufactured as a single piece for strength and durability, whilst a flexible manufacturing processes and material options allows bespoke panelling to match any cubicle.


With a range of panel materials, laminate finishes and colour options available, Education cubicles provide a versatile and stylish addition to any washroom specification.


Features and benefits:

  • Versatile and stylish.
  • Colour options.
  • Flexibility of design.
  • Ability to customise the panel finishes using graphics, photographs and other distinctive colourways.
  • Option of materials to meet all budgets.
  • Aluminium or stainless steel ironmongery (includes fixed or adjustable support feet, brackets, hinges, indicator bolts and header rails).
  • Complies with the relevant sections of the DfE’s Advice on standards for school premises and BS 6465.
  • DDA and Approved Document M compliant cubicles and fittings are available as options within the range.

General information

Color

Red

Yellow

Blue

Other

Finish

Laminated

Material

High pressure laminate (HPL)

Laminate

MFC

Shape

Rectangle

Length

1500 mm

Width

850 mm

Bespoke

Height

1800 mm

Bespoke

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/120 Panel cubicles

K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels

Melamine faced chipboard (MFC).

Guidance for specification option:

18 mm thick.

High pressure laminate (HPL).

Guidance for specification option:

18 mm thick.

Compact laminate (CL).

Guidance for specification option:

12 mm thick.

Panel supports

Aluminium support foot.

Aluminium low support foot.

Stainless steel support foot.

Doors

Melamine faced chipboard (MFC).

Guidance for specification option:

18 mm thick.

High pressure laminate (HPL).

Guidance for specification option:

18 mm thick.

Compact laminate (CL).

Guidance for specification option:

12 mm thick.

Hardware

Aluminium indicator bolt 'standard'.

Guidance for specification option:

Consult manufacturer for details.

Aluminium indicator bolt 'optional'.

Guidance for specification option:

Consult manufacturer for details.

Stainless steel indicator bolt.

System accessories

Not required.

Coat hooks.

Toilet roll holders.

Grab rails.

Lockers.

Benches.

Bracket

Aluminium channel bracket.

Stainless steel channel bracket.

Hinges

Aluminium 'D' hinge.

Stainless steel 'D' hinge.

Stainless steel dual bolt hinge.

Stainless steel gravity hinge.

Headrail

Aluminium 'D' header rail.

Stainless steel 'D' header rail.

Stainless steel channel header rail.

Overall size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

95

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold
