Pendock Washroom - Classic Plus Cubicles & Washroom Systems - Washroom & Cubicle Systems

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Cubicles and washroom system.

Jump to:
+44 (0)1952 580 590 Website

Application

Suitable for use in medium to high-traffic dry washroom applications.

Description

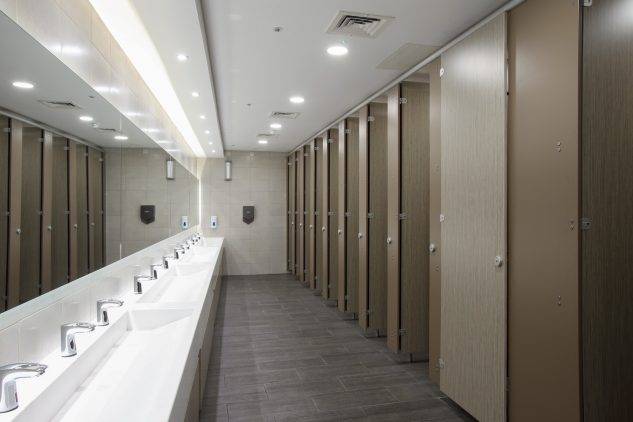

The Classic Plus range is manufactured using the same durable core as the Classic cubicles, but is faced with a harder wearing, more resilient high-pressure laminate (HPL) material and finished with 2 mm PVC edging. Featuring a range of standard finish options and durable ironmongery, Classic Plus is a highly versatile solution for single and multiple cubicle installations in corner, island or between wall configurations.


The use of HPL laminate allows the cubicles to be installed in medium to high-traffic applications that demand a more durable and impact-resistant finish. The tough HPL surface is bonded to a UKTR compliant moisture resistant MFC core and should be specified for use in dry washrooms only. They are not recommended for high humidity or wet environments.


To complement the Robust cubicle, vanity units and back panels are also available, which are designed to fully integrate fully with our cubicle ranges. Resin and other material options can also be specified. Using specialist forming and finishing techniques, the vanity unit tops are manufactured as a single piece for strength and durability, whilst a flexible manufacturing processes and material options allows bespoke panelling to match any cubicle.


Features and benefits:

  • A range of finish and colour options.
  • Durable ironmongery.
  • Highly versatile.
  • Stylish.
  • Standard and bespoke options.
  • Aluminium ironmongery as standard and the option of stainless steel for increased durability.
  • UKTR compliant moisture resistant MFC core.
  • DDA and Approved Document M compliant cubicles and fittings are available as part of the Classic range.

General information

Color

Other

Finish

Laminated

Material

Chipboard

High pressure laminate (HPL)

MFC

Shape

Rectangle

Length

Bespoke

Width

850 mm

Guidance for specification option:

Standard.

Bespoke

Height

1950 mm

Guidance for specification option:

Standard.

Bespoke

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/120 Panel cubicles

K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels

High-pressure laminate (HPL) boards.

Panel supports

Aluminium support foot.

Aluminium low support foot.

Stainless steel support foot.

Doors

High-pressure laminate (HPL) boards.

Hardware

Aluminium indicator bolt 'standard'.

Guidance for specification option:

Consult manufacturer for details.

Aluminium indicator bolt 'optional'.

Guidance for specification option:

Consult manufacturer for details.

Stainless steel indicator bolt.

System accessories

Not required.

Vanity units.

Solid surface wash troughs.

IPS duct panels and back panels.

Coat hooks.

Toilet roll holders.

Grab rails.

Ambulant cubicle accessories.

Thickness (overall)

18 mm.

Edge sealing

2 mm thick PVC.

Brackets

Aluminium channel bracket.

Stainless steel channel bracket.

Hinges

Aluminium 'D' hinge.

Stainless steel 'D' hinge.

Stainless steel dual bolt hinge.

Stainless steel gravity hinge.

Headrail

Aluminium 'D' header rail.

Stainless steel 'D' header rail.

Stainless steel channel header rail.

Overall size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

95

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold
