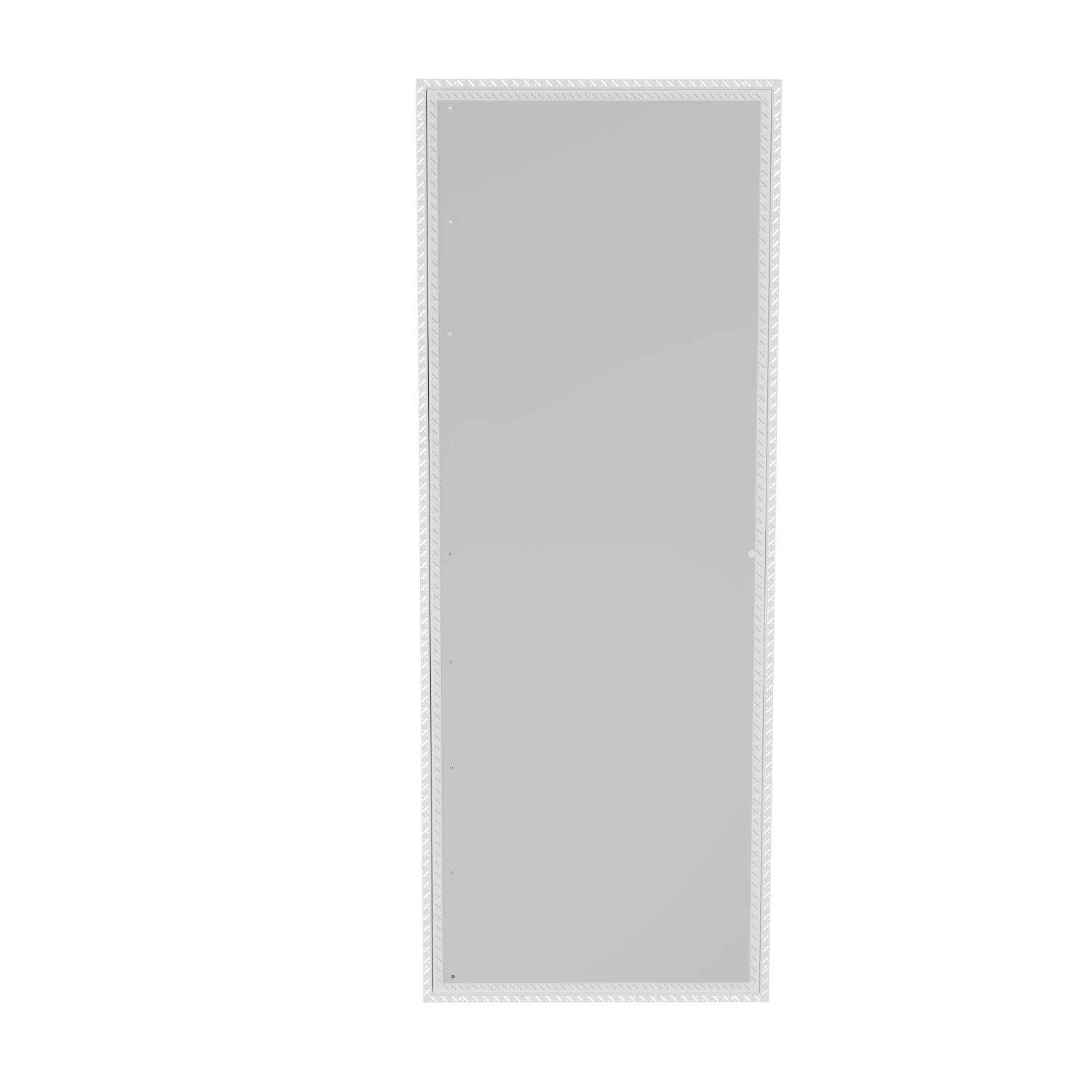

Plasterboard Riser Door (EX53 Range) - Beaded Frame - 2 Hour Fire Rated - Wall Access Panel

Verified by manufacturer 2 months ago

Exitile Access Ltd

Riser Door with Plasterboard Infill, 2 Hour Fire Tested, Beaded Frame, 3 Point Locking System.

Jump to:
BOS
+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall systems.

Description

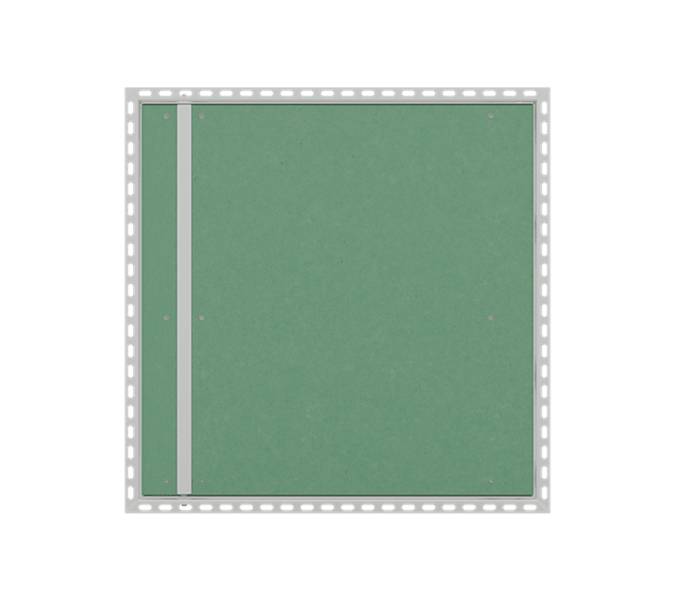

This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a beaded frame for tape and jointing or skim-coat plastering. The panel has a plasterboard faced door for tape and jointing or skim coat plastering. The door leaf is locked in place via a three-point locking system with other lock options available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.


Features and benefits:

  • The panel is two-hour fire rated (up to 2000 x 900 mm in a wall application).
  • Manufactured from Zintec steel with a 0.9 mm thick door and a 1.2 mm frame.
  • The panel's door leaf is hinged by a fast fit hinge system which saves time on fitting compared to a full piano hinge.

General information

Color

White

Finish

Powder-coated

Material

Steel

Plasterboard

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

120 minutes integrity to BS 476-22:1987.

Guidance for specification option:

Up to 2000 x 900 mm.

Position

Wall-mounted.

Size

-

Manufacturer guidance

  • Bespoke sizes available, insert requirements.
  • This product is manufactured in the UK and can be made to any bespoke size between 300 x 300 mm (minimum) and 2400 x 900 mm (maximum).
  • The average lead time is 3–5 working days.

Frame

Bead for taping and jointing or skim coat plastering.

Panel

-

Material

Steel with plasterboard infill.

Integral finish

Powder-coated.

Latch or lock type

Low level security 3-way lock.

Medium level security IP65 key-retaining tamper-proof lock.

High level security 3-way Euro profile cylinder lock.

Other.

Guidance for specification option:

Other lock options are available on request. Consult manufacturer and insert requirements.

Operation

Concealed hinges, outward opening.

Colour/ Finish

RAL 9010, 30% gloss.

Other.

Guidance for specification option:

Other colours are available on request. Consult manufacturer and insert requirements.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

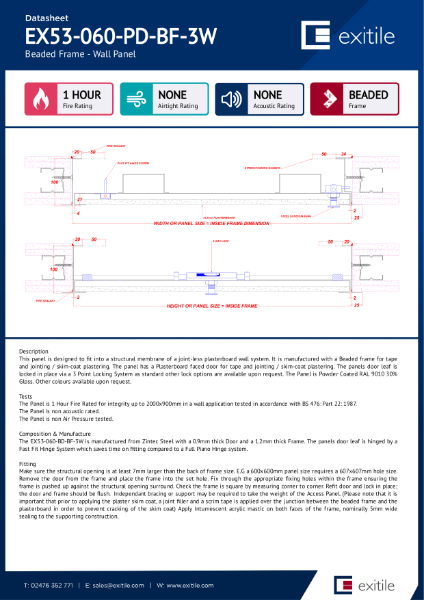

Datasheet - Plasterboard Riser Door (Range 53) - Beaded Frame - 1 Hour Fire Rated - 3 Way Lock
