Plateau Rooflight Added Security
Verified by manufacturer 13 days ago
pl600
pl600

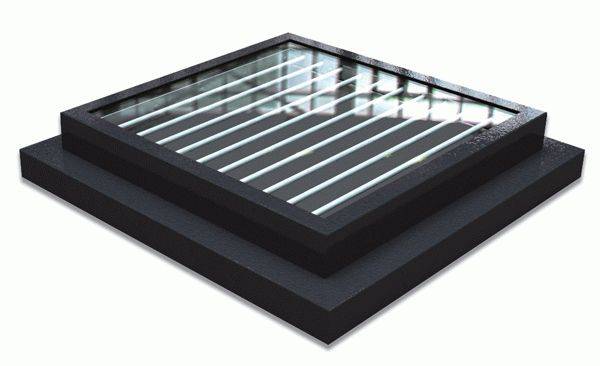

Low profile secure rooflight with thermally decoupled liner.
Application
Suitable for most nominally flat roof constructions and coverings, e.g. lead, copper, zinc, sedum, standing seam and asphaltic material.
Description
The Added Security Rooflight provides complete peace of mind with options to meet the specific needs of a project.
Features and benefits:
- Designed for buildings where security is paramount.
- Low profile: 95 mm above kerb height.
- Protective stainless steel glazing guard to increase security.
- Carbon steel sections, with a protective polyester powder coating.
- Integral Thermoliner® PVC-U decoupled lining improves thermal performance and drains away condensation.
- Tamper proof hinges and security bars.
General information
Color | Black Guidance for specification option: RAL9005. Grey Guidance for specification option: Light Grey (BS00A09), Dark Grey (BS00A13). White Guidance for specification option: RAL9010. Other Guidance for specification option: As per manufacturer and includes BS, RAL, and other special colours to match roof covering available on request. |
Finish | Powder-coated |
Material | Glass Steel |
Shape | Square Rectangle |
Length | Bespoke Guidance for specification option: Non-standard sizes are available on request. 600 mm 900 mm 1200 mm |
Width | Bespoke Guidance for specification option: Non-standard sizes are available on request. 600 mm 900 mm 1200 mm |
Height | Bespoke |
Warranty description | One year Guidance for specification option: On ancillary items. Five year Guidance for specification option: On glass. Ten year Guidance for specification option: On frames upon the rooflights being registered for free, online via the manufacturer website. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Product range |
Specification data - Framed rooflights
Form | Flat. |
Size | 600 x 600 mm. |
Product performance | |
Whole window U-value | 1.4 W/m²K.Guidance for specification option: Based on manufacturer's standard specification. Whole unit U-values will vary depending on specification. |
Frame | |
Material | Carbon steel.Stainless steel.Guidance for specification option: Optional. Other.Guidance for specification option: Different material specifications are available for applications in industrial or maritime locations. |
Finish | |
Coating | Polyester powder coating. |
Colour | Black (RAL 9005).Dark Grey (BS 00A13).Light Grey (BS 00A09).White (RAL 9010).Any BS.Guidance for specification option: Inset requirements. Any RAL.Guidance for specification option: Inset requirements. As drawing.As schedule.Manufacturer guidanceFour standard colours are available with matching glazing beading and Thermoliner®. |
Glazing or infill | |
Type | Insulating glass units. |
Construction | 4 mm SGG Planilux Toughened Outer, 16 mm 90% Argon Cavity, 6.4 mm SGG Stadip (Laminate) Planitherm One (Low E) Inner.Guidance for specification option: Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, passive solar gain and decorative options are available. Consult manufacturer for details. |
Colour | Clear.Opal.Bronze tint.Blue tint.Grey tint.Diffused. |
Coating | Low emissivity.Solar control.UV protection. |
Integral kerb | Insulated.Guidance for specification option: Insulated timber kerb to be formed on site. |
Operation | |
Type | Electric openings.Electric chain actuator.Electric linear actuator.Electric rack actuator.Hand winder.Manual openings (within reach).Manual openings (without of reach).Pole winder and winding crank. |
Control | Rain sensors.Remote control.Switch control.Link to BMS. |
Accessories | Not required.An on/ off switch is required.Guidance for specification option: Consult manufacturer for details. Coated stainless intruder security bars.Fixed shut.Guidance for specification option: No hinge posts. Perimeter covers and security bars.Guidance for specification option: All available as an option. Rain temperature and smoke sensors.Guidance for specification option: Are available on request. Tamper proof hinges. |
Electric actuators | Guidance for specification option:
|
Standard | To BS EN1279-2. |
Third-party certification | BSI Kitemark and KM 93754. |
Sustainability data
Material | Glass Steel |
