PL01

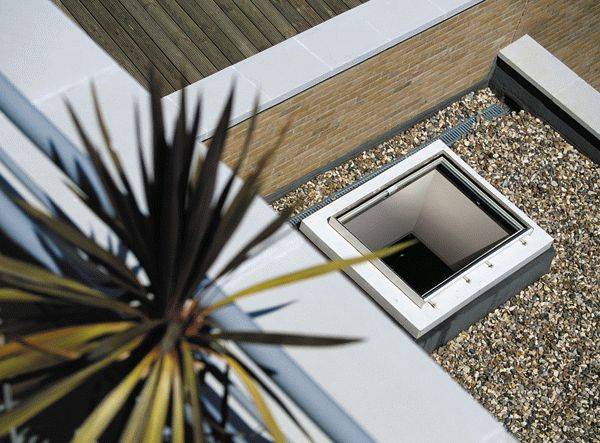

Low profile rooflight for flat roofs with thermally decoupled liner.
Suitable for all nominally flat roof constructions (3° - 20°) and coverings e.g. lead, copper, zinc, sedum, standing seam and asphaltic material.
Low profile rooflight for flat roofs with thermally decoupled liner.
Features and benefits:
Color | Black Guidance for specification option: RAL9005. Grey Guidance for specification option: Light Grey (BS00A09), Dark Grey (BS00A13). White Guidance for specification option: RAL9010. Other Guidance for specification option: As per manufacturer and includes BS and RAL colours available on request. |
Finish | Powder coated Semi-gloss Painted |
Material | Glass Steel |
Shape | Rectangle Square |
Size | Manufacturer guidanceTen standard and five egress/ access sizes are available. Non-standard sizes are available on request. |
Warranty description | Guidance for specification option: Rooflights must be registered online to receive the full warranty. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Product range |
Form | Flat. |
Size | 600 x 600 mm.Manufacturer guidanceNon-standard sizes are available on request. |
Frame | |
Material | Steel.Other.Guidance for specification option: Different material specifications (e.g. stainless steel) are available for applications in industrial or maritime locations. Consult manufacturer for details. |
Finish | |
Coating | Polyester powder coating to BS EN ISO 12944. |
Colour | Black (RAL 9005).Dark Grey (BS 00A13).Light Grey (BS 00A09).White (RAL 9010).Any BS.Guidance for specification option: Insert colour requirement. Any RAL.Guidance for specification option: Insert colour requirement. Manufacturer guidancePaint Colours are available with matching glazing silicone beading |
Glazing or infill | |
Type | Insulating glass units. |
Construction | 4 mm SGG Planilux toughened outer with 16 mm 90% argon cavity and 6.4 mm SGG Stadip (laminate) Planitherm one inner.Manufacturer guidanceEnhanced glazing specifications incorporating thermal, acoustic, security, light transmission, passive solar gain and decorative options are available. Consult manufacturer for details. |
Integral kerb | Insulated timber kerb to be formed on site. |
Operation | |
Type | Electric openings.Electric chain actuator.Electric linear actuator.Electric rack actuator.Hand winder.Manual openings (within reach).Manual openings (out of reach).Pole winder and winding cranks. |
Accessories | Not required.An on/ off switch is required.Guidance for specification option: Consult manufacturer for details. Rain temperature and smoke sensors.Guidance for specification option: Available on request. |
Electric actuators | Guidance for specification option:
|
Hinge | Standard. |
Glazing bar | Not required. |
Standard | To BS EN 1279-2. |
Third-party certification | BSI Kitemark and KM 93754. |
