Porta 100 H (Sliding Door Hardware)
Verified by manufacturer 3 months ago
EPD
Certificate type

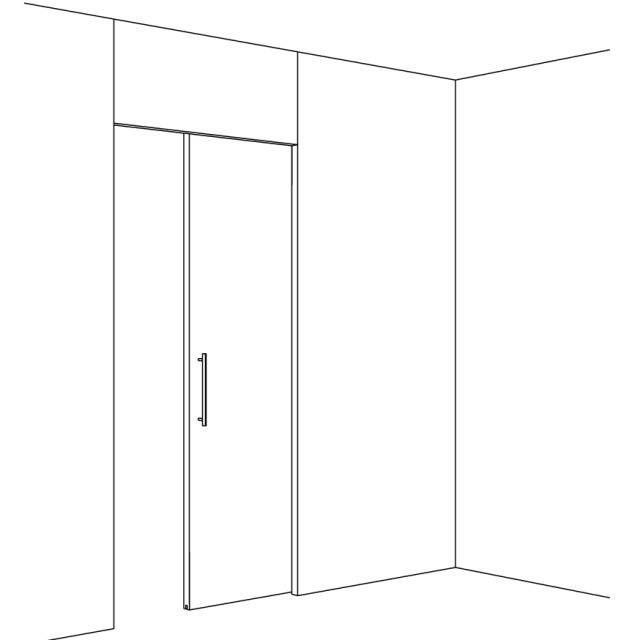

Sliding door mechanism designed for use with one wooden door weighing up to 100 kg.
Application
Suitable for sliding wooden doors in locations such as:
- Private living areas.
- Private and public offices.
- Interior furnishings.
Description
Sliding door mechanism designed for use with one wooden door weighing up to 100 kg.
Features and benefits:
- Ceiling or wall mounting.
- Adjustable stopper force.
- Ball-bearing running gear.
- Installation height: 53–59 mm.
- Tested in accordance with DIN EN 1527.
Suitable for use with door panels:
- Panel thickness: 30–40 mm.
- Maximum panel width: 1600 mm.
- Maximum panel height: 2700 mm.
- Maximum panel weight: 100 kg.
Components:
Quantities of each component may vary, consult manufacturer for details.
- Fittings available individually or in set with track.
- Spare parts available on request.
- Running track.
- Four-wheeled trolley x 2, with ball bearings and plastic rollers.
- Support bracket both vertically and laterally adjustable (zinc-plated steel x 2).
- Adjustable plastic floor-guide with roller (anthracite finish).
- Plastic stopper with retention spring x 2 (grey finish).
- Supplied with plastic brush for track cleaning.
General information
Color | Grey |
Finish | Anodized |
Material | Aluminium |
Shape | Rectangle |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear N10/110 Purpose-made N10/10 Purpose-made |
Product range |
Specification data - Door track and running gear
Standard | To EN 1527. |
Third-party certification | Bern University of Applied Science, Biel, Switzerland. |
Classification grades (minimum) | |
Durability | 6. |
Door mass | 2. |
Initial friction | 3. |
Form | Aluminium, plain anodized, pre-drilled, top hung running track. |
Mounting | Ceiling. Guidance for specification option: Standard. Wall. |
Running track | 2000 mm. Guidance for specification option: Standard. 2500 mm. 6000 mm. Manufacturer guidancePre-drilled. |
Accessories/ Other requirements | Not required. Assembly opening and cover cap. Guidance for specification option: For 2500 mm running track only. Manufacturer guidanceOther accessories and spares are also available, consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Third party certifications
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature

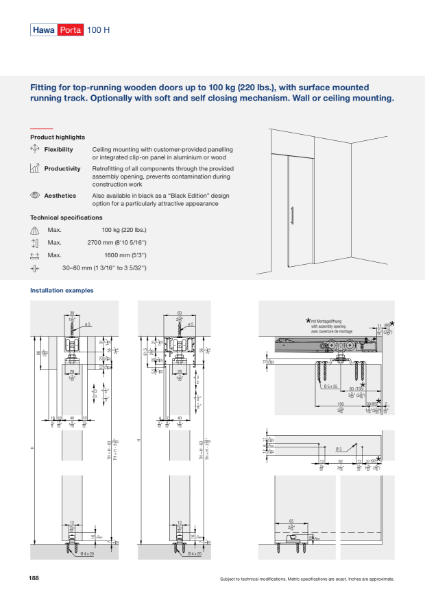

CAT_EN_Hawa_Porta_100_H
