Porta 100 HMD Acoustics (Sliding Door Hardware)

Verified by manufacturer 3 months ago

Hawa Sliding Solutions AG Third party certifications:
  • EPD

    EPD

    Certificate type

Wall mounted sliding door mechanism with low installation height and, designed for use with one wooden door weighing up to 100 kg.

Jump to:
+41 44 787 17 17 Website

Application

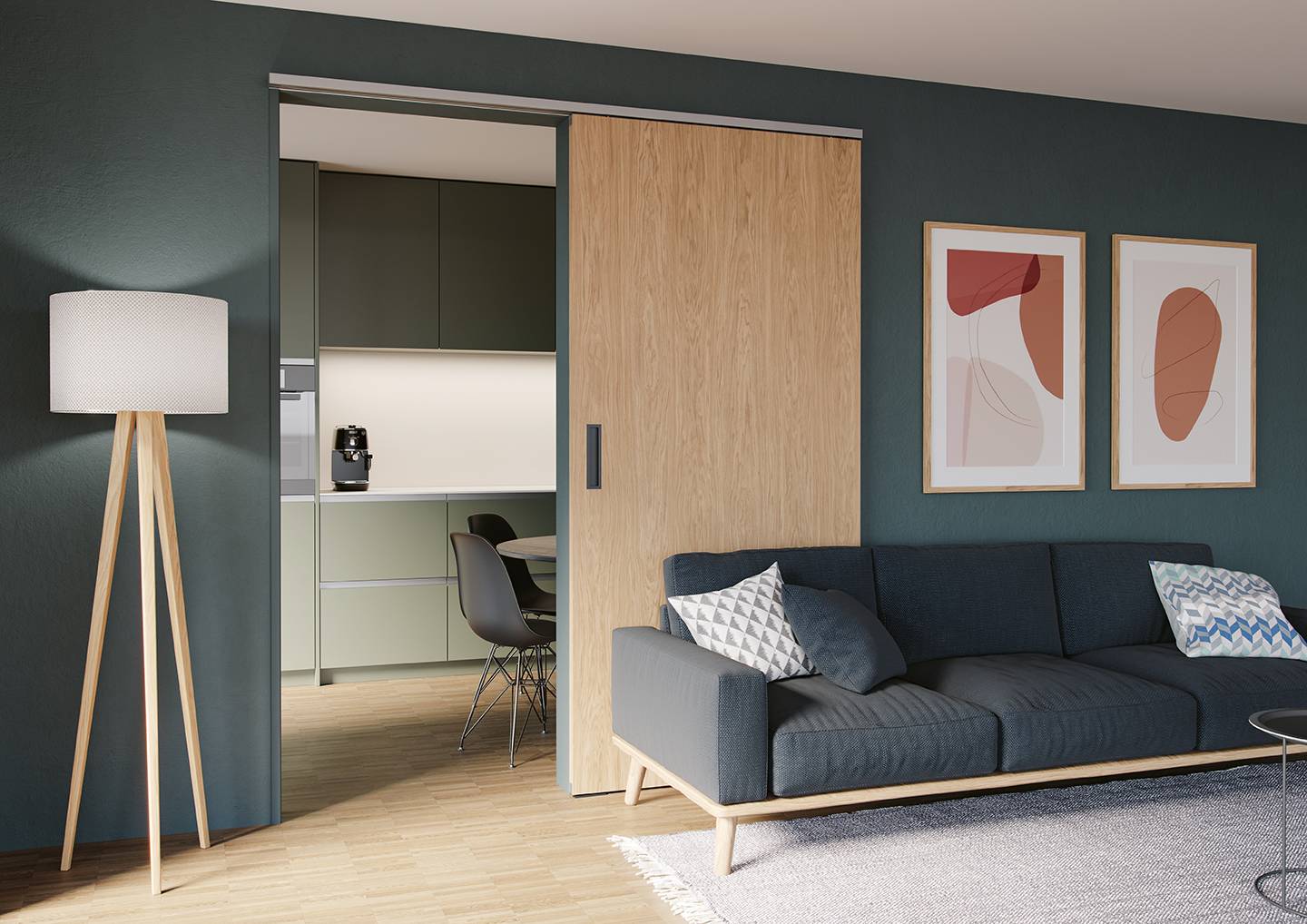

Suitable for sliding wooden doors in locations such as:

  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

Description

Fitting for top-running wooden doors up to 100 kg, with surface mounted running track. Sound attenuation. Wall mounting. Minimal installation height.


Features and benefits:

  • Outstanding living comfort thanks to effective exclusion of sound, drafts, odors and unwanted light incidence.
  • Aluminium panel or customer-provided wooden paneling integrated in the system.
  •  Tool-less door mounting.
  • Stopper with retention spring.
  • Ball-bearing running gear.
  • Installation height (minimum): 31 mm.
  • Tested in accordance with DIN EN 1527.


Suitable for use with door panels:

  • Panel thickness: 39–45 mm.
  • Maximum panel width: 1400 mm.
  • Maximum panel height: 2500 mm.
  • Maximum panel weight: 100 kg.

General information

Color

Grey

Black

Finish

Anodized

Material

Aluminium

Wood

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

N10/110 Purpose-made

N10/10 Purpose-made

Specification data - Door track and running gear

Standard

To DIN EN 1527.

Third-party certification

Internal testing.

Classification grades (minimum)

-

Durability

6.

Door mass

2.

Corrosion resistance

2.

Initial friction

3.

Form

Hawa Porta 100 HMD Acoustics consisting of running track, running gear with ball bearing rollers, SoftStop, stopper with retention spring, running gear support, horizontal seal set, vertical seal.

Mounting

Wall.

Running track

Anodized aluminium, 2500 mm.

Anodized aluminium, 3500 mm.

Anodized aluminium, 6000 mm.

Anodized aluminium, cut to size.

Manufacturer guidance

Pre-drilled.

Accessories

Seal.

Guidance for specification option:

Insert requirements for size and left or right version.

Track cleaner.

Guidance for specification option:

Plastic.

Key for dismounting.

Guidance for specification option:

Zinc coated steel.

Clip-on panel.

Guidance for specification option:

Wall mounted, aluminium

Cover cap.

Guidance for specification option:

Plastic

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

Aluminium

Wood

Recyclability

Yes

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Hawa EPD Sliding door gear EN

Literature

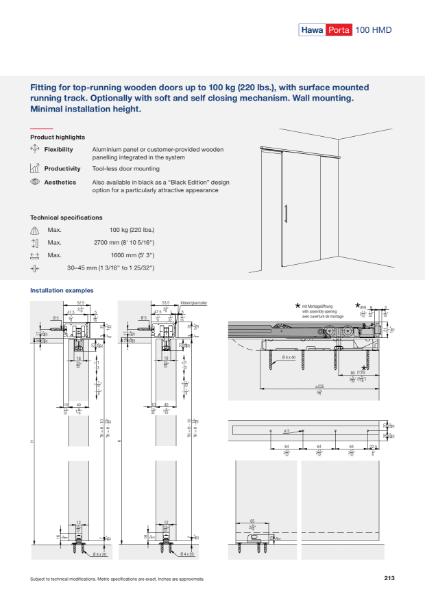

CAT_EN_Hawa_Porta_100_HMD

CAT_EN_Hawa_Porta_100_HMD
