ProTherm XPS X MK WFRL

Verified by manufacturer 3 months ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

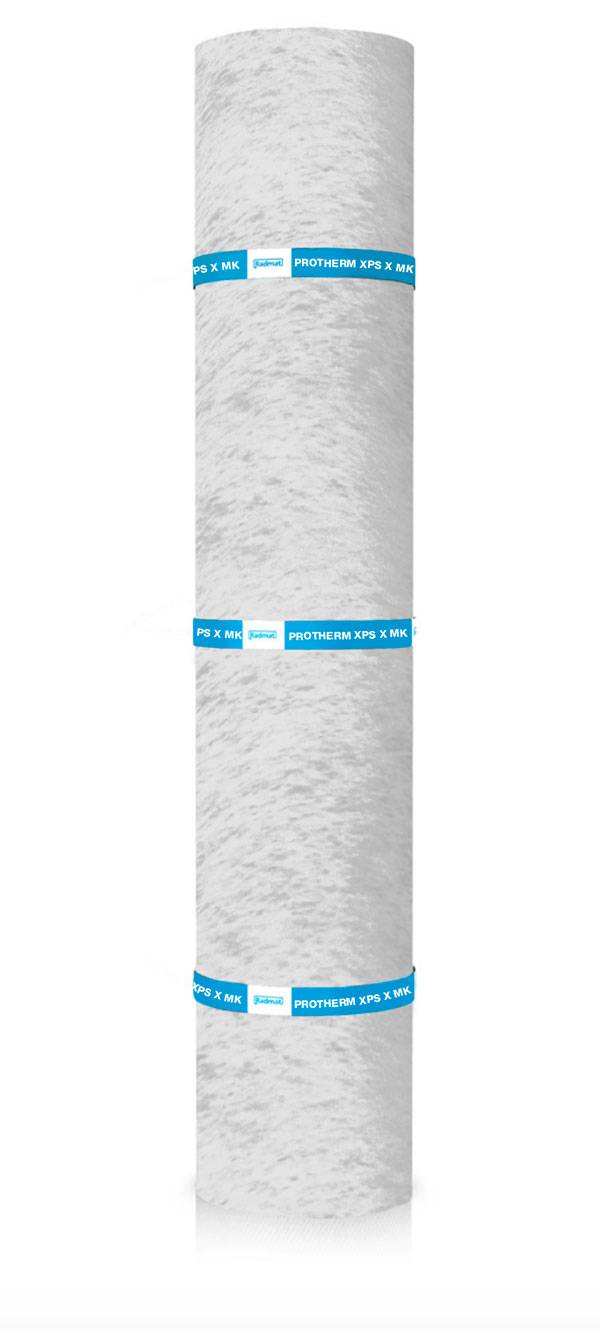

A waterproof and vapour permeable polyethylene geotextile. This layer is referred to as the WFRL (Water Flow Reducing Layer) and acts as the Principal Water Collection Layer in an inverted roof.

Jump to:
+44 (0)1858 410372 Website

Application

For use with PermaQuik PQ6100, EshaUniversal, EshaFlex and ParaFlex Inverted Roofing Systems.

For a comprehensive NBS specification contract Radmat Building Products.

Description

A spun bonded polyethylene geotextile based upon Tyvek® by DuPont that is waterproof and vapour permeable


Features and benefits:

  • Replaces the usual separating layer laid between the insulation and ballast, prevented from reaching the waterproofing layer and almost completely eliminating the rainwater cooling effect.
  • When installed with ProTherm XPS Inverted Roof Insulations or ProTherm Quantum PLUS+ Inverted Roof Insulation in an inverted roof, it reduces the rainwater cooling, reducing the required insulation thickness by 2%.
  • Certificates ISO 9001: 2008 Quality Management System, ISO 14001: 2004 Environmental Management System, EPD as per ISO 14025 and EN 15804.

General information

Color

Grey

Material

Polyethene

Length

100000 mm

Width

3000 mm

Warranty description

40 year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary
Pr_25_71_63_29 Extruded polystyrene (XPS) boards

CAWS

J31/390 Water flow-reducing layer

J41/390 Water flow-reducing layer

Specification data - Vapour-permeable sheets

Standard

To BS 3177: 1959.

Third-party certification

ISO 9001: 2008 Quality Management System, ISO 14001: 2004 Environmental Management System, EPD as per ISO 14025 and EN 15804.

Performance criteria

-

Water vapour properties

Water vapour transmission (Sd): 0.01 m as per EN ISO 12572 (C).
Water resistance: Sustains 1.5 m head of water.

Form

Spun-bonded.

Weight (minimum)

Fabric weight: ~63 g/m²;
Weight per roll: ~19 kg.

Manufacturer guidance

Fabric weight.

Tear resistance

Nail Shank (MD): 55 ±20 N;
Nail Shank (XD): 50 ±20 N as per EN 12310-1.

UV Resistance – Stable

Up to 4 months.

Manufacturer guidance

Exposure

Performance characteristics

Melts and shrinks away from a heat source (unclassifiable as regards Building Regulations).

Manufacturer guidance

(Fire performance)

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

19/5648 ProTherm G XPS X 300 SL

BBA Agrément Certificate

BBA Agrément Certificate

BBA-20-5769-Quantum Plus+Pure PS1-Inverted Roof Insulation System

BBA Agrément Certificate

BBA Agrément Certificate

BBA-20-5769-Quantum Plus+Hybrid PS2-Inverted Roof Insulation System

BBA Agrément Certificate

BBA Agrément Certificate

BBA-21-5952-ProTherm XPS X Ultra 300 SL Inverted Roof Insulation

BBA Agrément Certificate

BBA Agrément Certificate

BBA-21-5902-Radmat ProTherm G XPS X 300SL Inverted Roof Insulation

Literature

ProTherm XPS X MK Water Flow Reducing Layer Product Data Sheet

ProTherm XPS X MK Water Flow Reducing Layer Product Data Sheet
