Q Max - WC Cubicle System

Verified by manufacturer 9 months ago

Willis Systems

A premier high pressure laminate cubicle range, available in standard and tall units.

Jump to:
BOS
+44 (0) 29 2079 6518 Website

Application

Suitable for public washrooms and in accommodation facilities.

Description

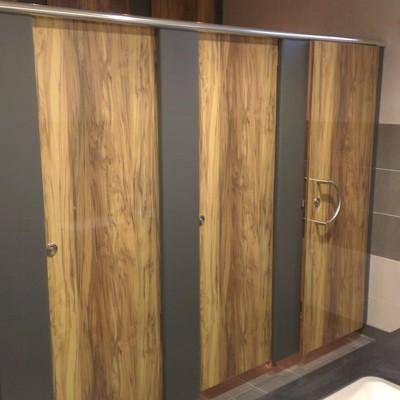

A selection of toilet cubicles which can be customized to enhance design and project dimensions, available in standard and tall units.


Features and benefits:

  • Available in Q-Max and Q-Max Tall.
  • Faced in decorative and durable high-pressure laminate.
  • Available in a choice of HPL patterns and colours, which help to achieve the specifier’s vision.
  • Surfaces are heat, scratch, impact and cigarette burn resistant.
  • The pilasters have a 19 mm edge lipped with 2 mm matching/ contrasting radiused PVC to present the optimal aesthetic appeal. Partitions manufactured from 17 mm moisture resistant chipboard and are faced on both sides with high-pressure laminate, to give an overall thickness of 19 mm.
  • Q-Max Tall: A full height version incorporating most the features of the Q-MAX but with 25 mm clearance top and bottom for unisex toilet use.

General information

Color

Other

Finish

Polished

Material

Steel

Aluminium

Laminate

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/112 Fully framed panel cubicles

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

Compact or solid grade high-pressure laminate (HPL) boards.

Doors

High pressure laminate.

Lippings

Required.

Hardware

Head rail.

System accessories

Toilet roll holders.

Guidance for specification option:

Standard.

Clothes hooks.

Guidance for specification option:

Standard.

Lock with circular face.

Guidance for specification option:

Thumb turn action.

Frame

Stainless steel.

Colour and finish

Guidance for specification option:

Insert requirement. Consult manufacturer for full list of colours and finishes.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
