Q13 - Wc Cubicle System

Verified by manufacturer 9 months ago

Q13

Willis Systems Variant:

A panel cubicle system which can withstand harsh environments and vandalism while maintaining user privacy.

Jump to:
BOS
+44 (0) 29 2079 6518 Website

Application

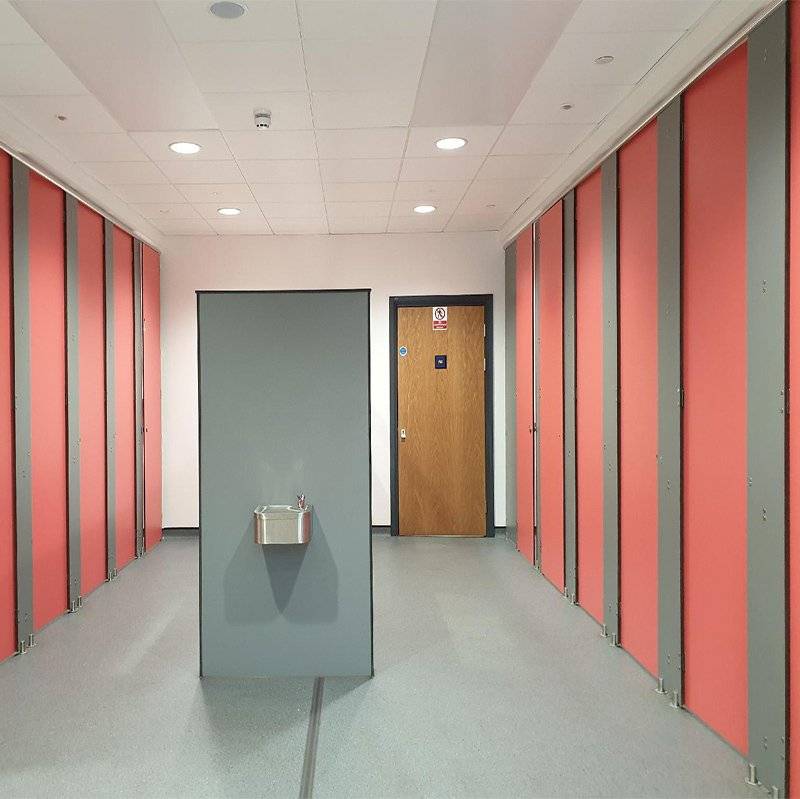

Suitable for use in wet areas, such as swimming pools and saunas, and areas of high abuse, such as schools, sports stadiums, military establishments and prisons.

Description

A panel cubicle system which can withstand harsh environments and vandalism while maintaining user privacy.


Features and benefits:

  • Available in Q-13 and Q-13 Tall units to fit project dimensions.
  • Can withstand cleaning with high-power hoses.
  • Can withstand bacteria and fungi build up and will remain undamaged when in contact with common chemicals.
  • Will not degrade where water is constantly present.
  • Toilet rolls and coat hooks come as standard.
  • SAA ironmongery as standard other finishes available.
  • Lock with circular face and sliding bolt action latch.
  • Headrail in a SAA aluminium U section with option of tubular rail and clamp fixings.
  • Pilaster supporting 150mm high leg Q-13 or a 25 mm high leg with Q-13 Tall version.
  • Partitions 13 mm thick securely fixed to pilasters and rear wall with U brackets.
  • Outward opening doors complete with back to back D handles.

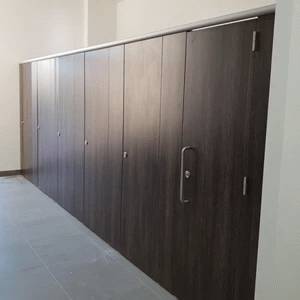

  • Q-13 Tall: Designed with a 25 mm clearance top and bottom, suitable for gender neutral/ unisex changing facilities and washrooms to ensure maximum privacy.

General information

Color

Other

Guidance for specification option:

Available in a choice of anti-vandal colours and patterns for the most challenging environments.

Material

Solid grade laminate (SGL)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

K32/112 Fully framed panel cubicles

Specification data - Panel cubicle systems

Panels

Solid grade laminate panel.

Guidance for specification option:

13 mm.

Pilasters

150 mm.

Guidance for specification option:

High leg.

Doors

Outward opening.

Hardware

Headrail.

Guidance for specification option:

Headrail in a SAA aluminium U-section. Option of tubular rail and clamp fixings.

System accessories

Clothes hooks.

Toilet roll holders.

Male/ Female pictograms.

Guidance for specification option:

Optional at additional cost.

Ironmongery

SAA ironmongery.

Guidance for specification option:

as standard.

Colour

Guidance for specification option:

Available in a choice of anti-vandal colours and patterns for the most challenging environments.

Partition thickness

13 mm.

Guidance for specification option:

Securely fixed to pilasters and rear wall with U-brackets.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

United Kingdom

Recyclability

YES

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
