Quartzglide 4 - Double Glazed Pocket Sliding Door - Acoustic Sliding Door, glass door,
Verified by manufacturer 5 months ago

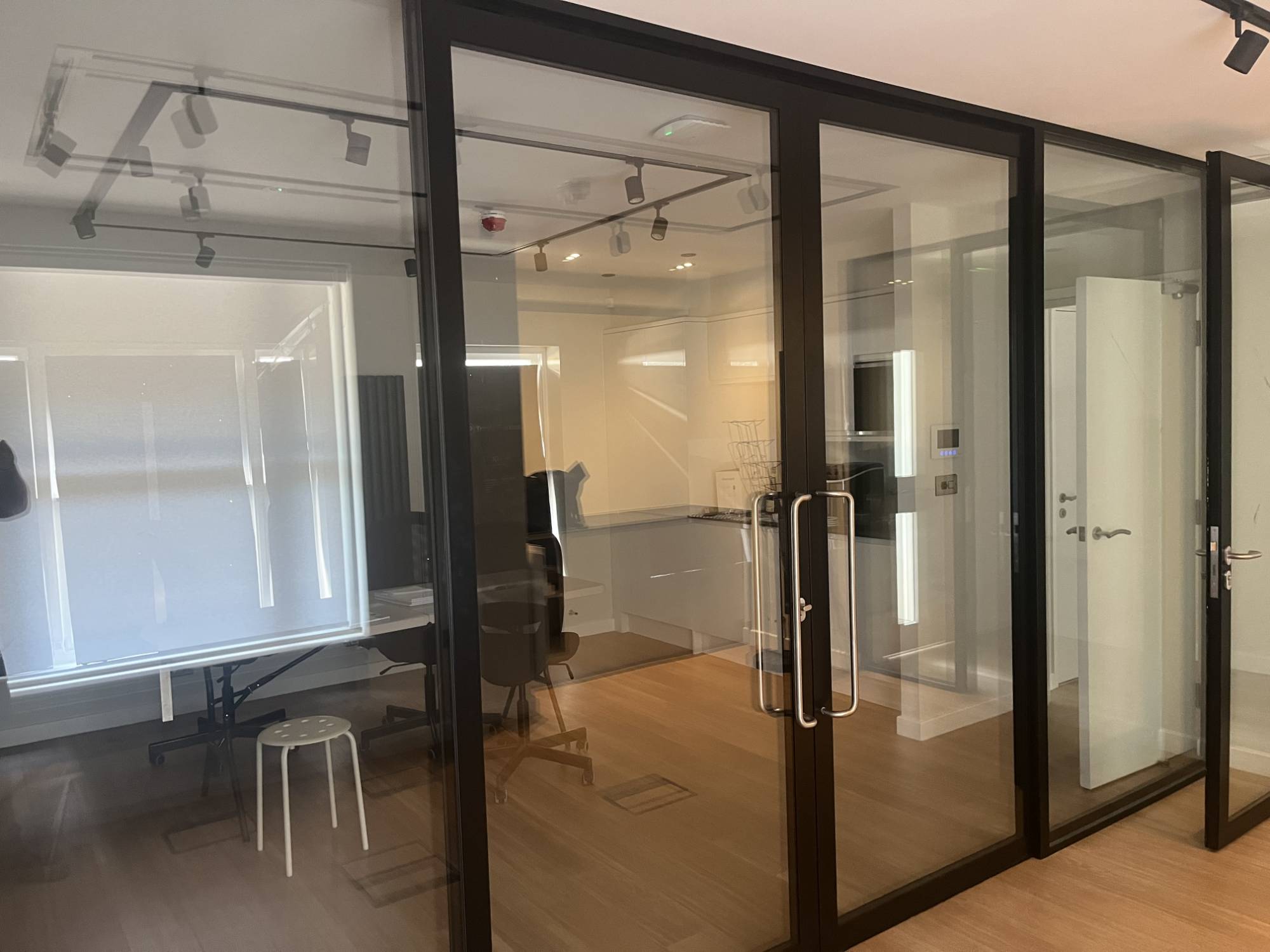

Sliding High Acoustic Double Glazed glass door offering up to 39dB (Rw) acoustic isolation.
Application

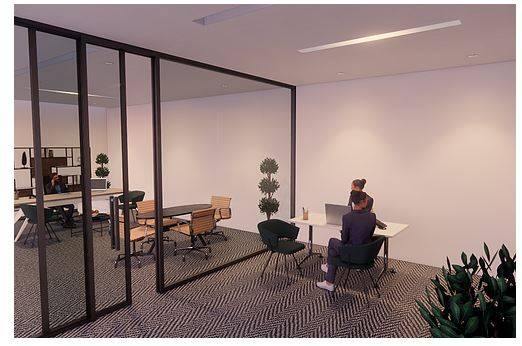

Open-plan commercial offices and workplace environments.
Description
QuartzGlide 4 delivers exceptional acoustic resistance and a premium performance to workspaces around the world. Designed to incorporate our MK2 aluminium framed double glazed acoustic door, this system excels in both functionality and style, offering a smooth sliding function alongside top notch acoustic properties.
Features and benefits:
- 70mm x 40mm Aluminium profile
- Up to 39dB (Rw) of Acoustic Resistance is achievable with two 10.8mm acoustic laminate glass panes
- Heavy duty sliding option available
- Customisable design options with switch glass and internal Aluminium bars available
- Supplied with a High Acoustic Door Frame to ensure quality sound performance
General information
Color | Clear Silver Other Black White |
Finish | Glazed Laminated Guidance for specification option: Toughened. Anodized Satin Powder-coated Guidance for specification option: Inquire with manufacturer for available polyester powder coated options. |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/460 Frameless glass doors L20/520 Sliding doors L20/525 Sliding pocket doors L20/65 Sliding pocket doors |
Specification data - Sliding door and partition sets
Performance | Sound-resistant. |
Arrangement | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Track system | Aluminium, top-hung. |
Door leaves | |
Construction | 100 x 43 mm aluminium profiles. |
Finish and colour | Powder coated. Guidance for specification option: Insert requirements; contact manufacturer for more details. Satin. Guidance for specification option: Anodized aluminium. Anodized. Guidance for specification option: Inquire with manufacturer for special anodized finish options. |
Operation | Manual. |
Hardware | Manufacturer guidanceA wide range of hardware options are available. |
Standards | To BS EN ISO 140, BS EN ISO 717, BS5234, BS6180 and BS6399. Guidance for specification option: British standards:
|
Height | Manufacturer guidanceAvailable height up to 3000 mm. |
Glass thickness | 6 mm toughened, 10 mm toughened; 10.8 Acoustic Laminate. |
AcousticRating | Up to 39 dB (Rw). |
Glass type | Toughened/ laminated. Manufacturer guidanceAvailable ‘Switch Glass’ option; contact manufacturer. |
Glazing | Double glazed. |
Manifestation | Not required. Required. Manufacturer guidanceOptional manifestations and graphics. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass Aluminium |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Sliding Door Quartzglide 4-Double Glazed pocket
