Rainline Natural Copper Rainwater System

Verified by manufacturer 2 months ago

Lindab Ltd

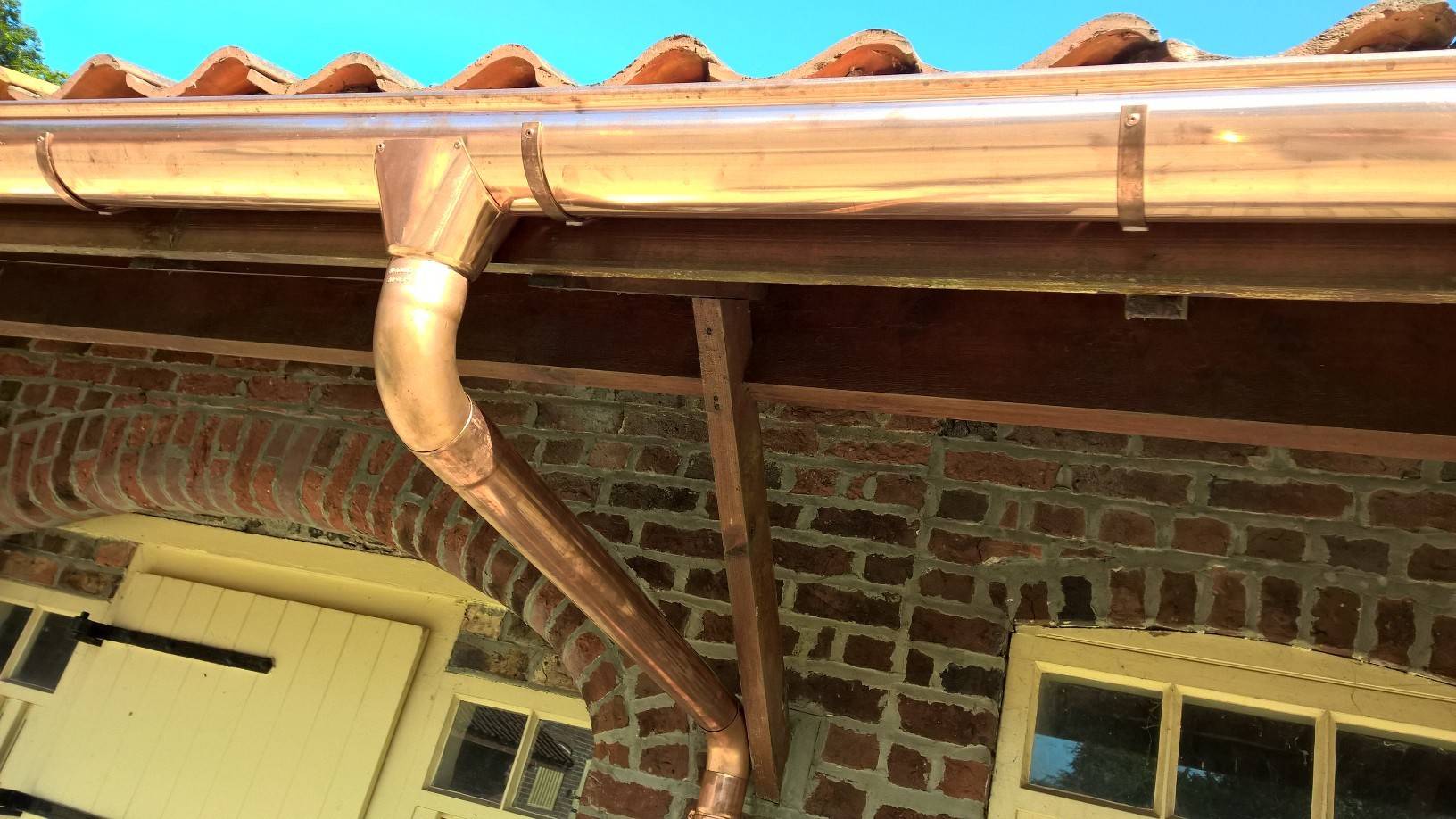

Rainline gutter and pipe system in uncoated copper.

Jump to:
+44 (0)1604 788350 Website

Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.



When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline gutter and pipe system in uncoated copper.



Features and benefits:

  • Provides a high level of corrosion resistance.
  • Will transition to a greenish verdigris patina.
  • Low carbon footprint and low overall environmental impact.
  • Durable and flexible.
  • Minimal maintenance required.
  • Highly resistant to vandal attack; further reinforcement can be added if required.
  • UV-stable.
  • Gutters available in four sizes, pipes available in four sizes.
  • Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
  • Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color

Copper

Finish

Copper

Material

Copper

Shape

Circle

Length

3000 mm

Width

100 mm

125 mm

150 mm

Height

100 mm

125 mm

150 mm

Warranty description

Other

Uniclass

Ss_50_30_02_28 External gravity rainwater drainage systemsPrimary

CAWS

R10/110 Gravity rainwater drainage system

Specification data - External gravity rainwater drainage systems

System performance

To BS EN 12056-3: 2000.

Eaves gutters

-

Gutters

-

Gutter types

Rainline Natural Copper Gutters Half-round - 100 mm.

Rainline Natural Copper Gutters Half-round - 125 mm.

Rainline Natural Copper Gutters Half-round - 150 mm.

Rainline Natural Copper Gutters Half-round - 190 mm.

Rainline Natural Copper Gutters Rectangular - 140 mm.

External rainwater pipework

-

Rainwater downpipes

-

Downpipe types

Rainline Natural Copper Rainwater Downpipe, 75 mm.

Rainline Natural Copper Rainwater Downpipe, 87 mm.

Rainline Natural Copper Rainwater Downpipe, 100 mm.

Rainline Natural Copper Rainwater Downpipe, 120 mm.

Manufacturer guidance

Available in 1000 or 3000 mm lengths. Insert requirements.

Supports

-

Brackets and clips

SHVA downpipe bracket.

System accessories

-

Manufacturer guidance

Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes etc are available dependent on size. Consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Material

Copper

Manufacturing plant location

Recyclability

Fully recycleable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Expected Life

40 year
