Rainline Painted Steel Rainwater System

Verified by manufacturer 4 months ago

Lindab Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Rainline steel gutter and pipe system painted in a range of 15 colours and finishes.

Jump to:
+44 (0)1604 788350 Website

Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.



When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline steel gutter and pipe system painted in a range of 15 colours and finishes.



Features and benefits:

  • Low carbon footprint and low overall environmental impact.
  • Durable and flexible.
  • Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
  • Minimal maintenance required.
  • Highly resistant to vandal attack; further reinforcement can be added if required.
  • UV stable.
  • Gutters available in two shapes, five sizes. Pipes available in four sizes.
  • Twelve gloss colour options and three matte colour options are available.
  • Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
  • Supplied with a 15-year warranty.
  • Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color

Finish

Galvanized

Painted

Material

Steel

Guidance for specification option:

Roll formed, 0.6 mm steel with solid seam.

Length

3000 mm

2000 mm

Width

100 mm

125 mm

150 mm

190 mm

Warranty description

15 year

Uniclass

Ss_50_30_02_28 External gravity rainwater drainage systemsPrimary

CAWS

R10/110 Gravity rainwater drainage system

Specification data - External gravity rainwater drainage systems

System performance

To BS EN 12056-3: 2000.

Eaves gutters

-

Gutters

-

Gutter types

Rainline Painted Gutter Half-round - 100 mm.

Rainline Painted Gutter Half-round - 125 mm.

Rainline Painted Gutter Half-round - 150 mm.

Rainline Painted Gutter Half-round - 190 mm.

Rainline Painted Gutter Rectangular - 140 mm.

Jointing

RSK gutter joint with rubber seal.

Guidance for specification option:

For Half round.

RTSK rectangular gutter joint with rubber seal, 140 mm.

Guidance for specification option:

For RTSK rectangular gutter joint with rubber seal, 140 mm.

Supports

-

Brackets

K07 70 mm flex-fit fascia bracket, 100 mm.

K16 160 mm flex-fit rafter bracket, 100 mm.

KFK fascia bracket, 100 mm.

KFL 200 mm rafter bracket, 100 mm.

KLK adjustable fascia bracket, 100 mm.

RFKF rise and fall bracket, 100 mm.

RTK07 rectangular 70 mm flex-fit fascia bracket, 140 mm.

Guidance for specification option:

For RTSK rectangular gutter joint with rubber seal, 140 mm.

RTK21 rectangular 210 mm rafter bracket, 140 mm.

Guidance for specification option:

For RTSK rectangular gutter joint with rubber seal, 140 mm.

Chutes

-

Materials

Steel, OMV/OK gutter outlet, 100 x 75 mm.

Steel, OMV/OK gutter outlet, 100 x 87 mm.

Steel, RTOK rectangular outlet, 140 x 75 mm.

Guidance for specification option:

For RTSK rectangular gutter joint with rubber seal, 140 mm.

Steel, RTOK rectangular outlet, 140 x 87 mm.

Guidance for specification option:

For RTSK rectangular gutter joint with rubber seal, 140 mm.

Steel, RTOK rectangular outlet, 140 x 100 mm.

Guidance for specification option:

For RTSK rectangular gutter joint with rubber seal, 140 mm.

External rainwater pipework

-

Rainwater downpipes

-

Downpipe types

Rainline Rainwater Downpipe, 75 mm.

Rainline Rainwater Downpipe, 87 mm.

Rainline Rainwater Downpipe, 100 mm.

Supports

-

Brackets and clips

SST spike for pipe bracket, 125 mm.

SST spike for pipe bracket, 175 mm.

SST spike for pipe bracket, 250 mm.

SST spike for pipe bracket, 300 mm.

SSVU universal pipe bracket.

System accessories

-

Manufacturer guidance

Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes etc are available dependent on size. Consult manufacturer for details.

Colour/ Finish

Painted, RAL 7016 gloss finish.

Painted, RAL 9007 metallic finish.

Painted, RAL 9002 gloss finish.

Painted, RAL 9011 gloss finish.

Painted, RAL 8017 gloss finish.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Material

Steel

Guidance for specification option:

Roll formed, 0.6 mm steel with solid seam.

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Expected Life

60 year

Third party certifications

Third party certifications

EPD

Lindab Rainline EPD

Literature

Rainwater Vandal Range

Rainwater Vandal Range

Rainwater Inspiration

Rainwater Inspiration

Rainwater Assembly Instuctions

Rainwater Assembly Instuctions

Lindab Rainline Technical Guide

Lindab Rainline Technical Guide

Lindab Painted Steel Technical Guide

Lindab Painted Steel Technical Guide

Lindab HBP Technical Guide

Lindab HBP Technical Guide

Case studies

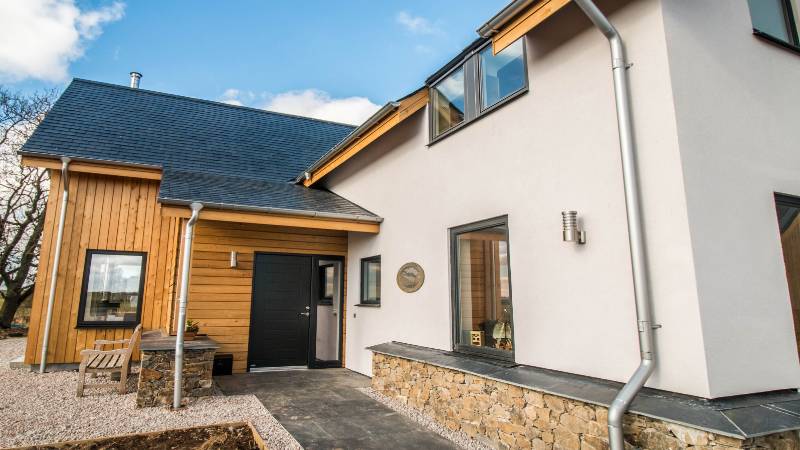

21st Century Family Home

21st Century Family Home

Ackerley Modern Farmhouse

Ackerley Modern Farmhouse

Appletree Cottage

Appletree Cottage

Bullocks Barns

Bullocks Barns

Gardens Sorted

Gardens Sorted

Grant House

Grant House

Queens Court

Queens Court

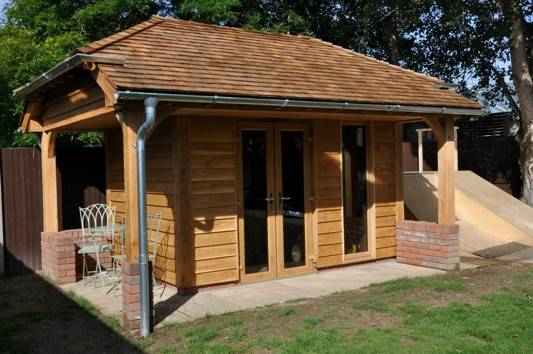

Skate Park Garden Room

Skate Park Garden Room

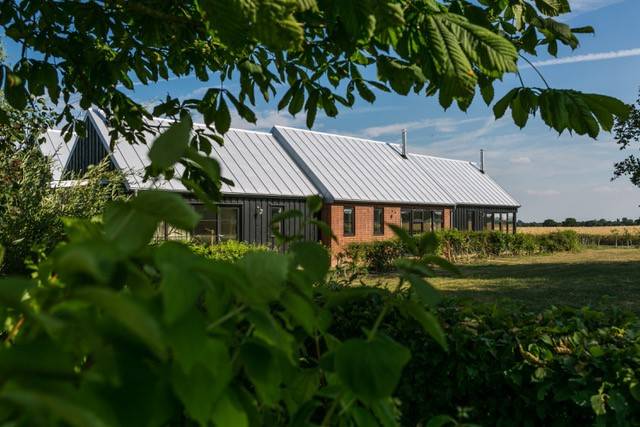

Steel Farm
