Riga Pattern+ - Specialist Veneer Plywood

Verified by manufacturer 6 months ago

6.5 mm

Riga Wood Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • FSC

    FSC

    Certificate type

  • PEFC

    PEFC

    Certificate type

Birch throughout plywood, overlaid with a hard wearing film that combines the latest decorative industry techniques with exceptional flexibility in diverse range of textures and colours.

Jump to:
+44 (0)1959 565300 Website

Application

Riga Pattern+ is a durable panel for applications, where highly decorative surfaces in a variety of textures and colours are required.


Light building:

  • Decorative wall and ceiling linings.
  • Joinery, furniture and shop fittings.
  • Stage systems.

Packaging:

  • High-end packaging for flight cases.

Road transport:

  • Light commercial vehicles.

Description

A birch throughout plywood, overlaid with a hard wearing film that combines the latest decorative industry techniques with exceptional flexibility. This technique enables customers to explore a diverse range of textures and colours, enabling the creation of truly innovative designs on direct-pressed birch plywood surfaces.


Features and benefits:

  • Maximum combination possibilities between textures and colours.
  • High wear resistance, durable and heavy-duty surface.
  • Aesthetic and visually attractive.
  • Excellent strength-to-weight ratio.
  • Weather resistant gluing and water resistant surface.
  • Surface is resistant to commonly used chemicals and surface impact, easy to clean.
  • Sustainable product with long life span.


Overlaying:

Overlaid with resin impregnated film which is hot-pressed using specialized press plates. Depending on the application, films impregnated with modified phenolic or melamine resins can be applied and performance further enhanced with multiple overlays.


Surface properties:

The new Riga Pattern+ overlay provides a decorative, textured appearance. The surface resists abrasion, commonly used chemicals, and is weather and moisture resistant. It can be easily cleaned with water or steam. The reverse side is smooth, overlaid with resin impregnated film. Riga Wood experts will advise the most appropriate overlay depending on the end use.


Texture selection:

Riga Pattern+ offers a selection of standard textures (leather, rock, slatewood) for design flexibility. The direct-pressed surfaces allow for seamless integration of various textures and colours. Contact us to explore the possibilities of customizable textures to meet specific project needs.

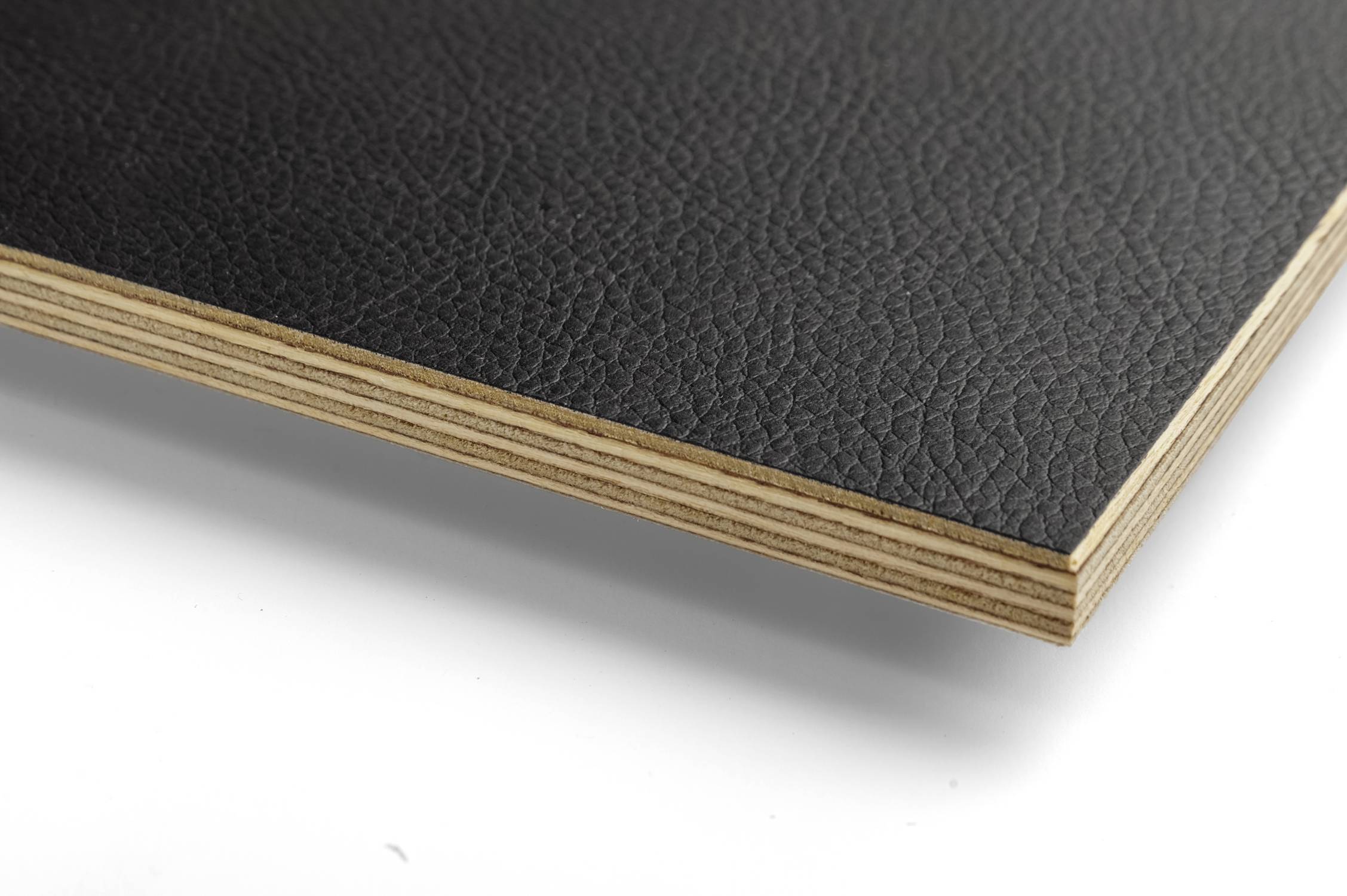

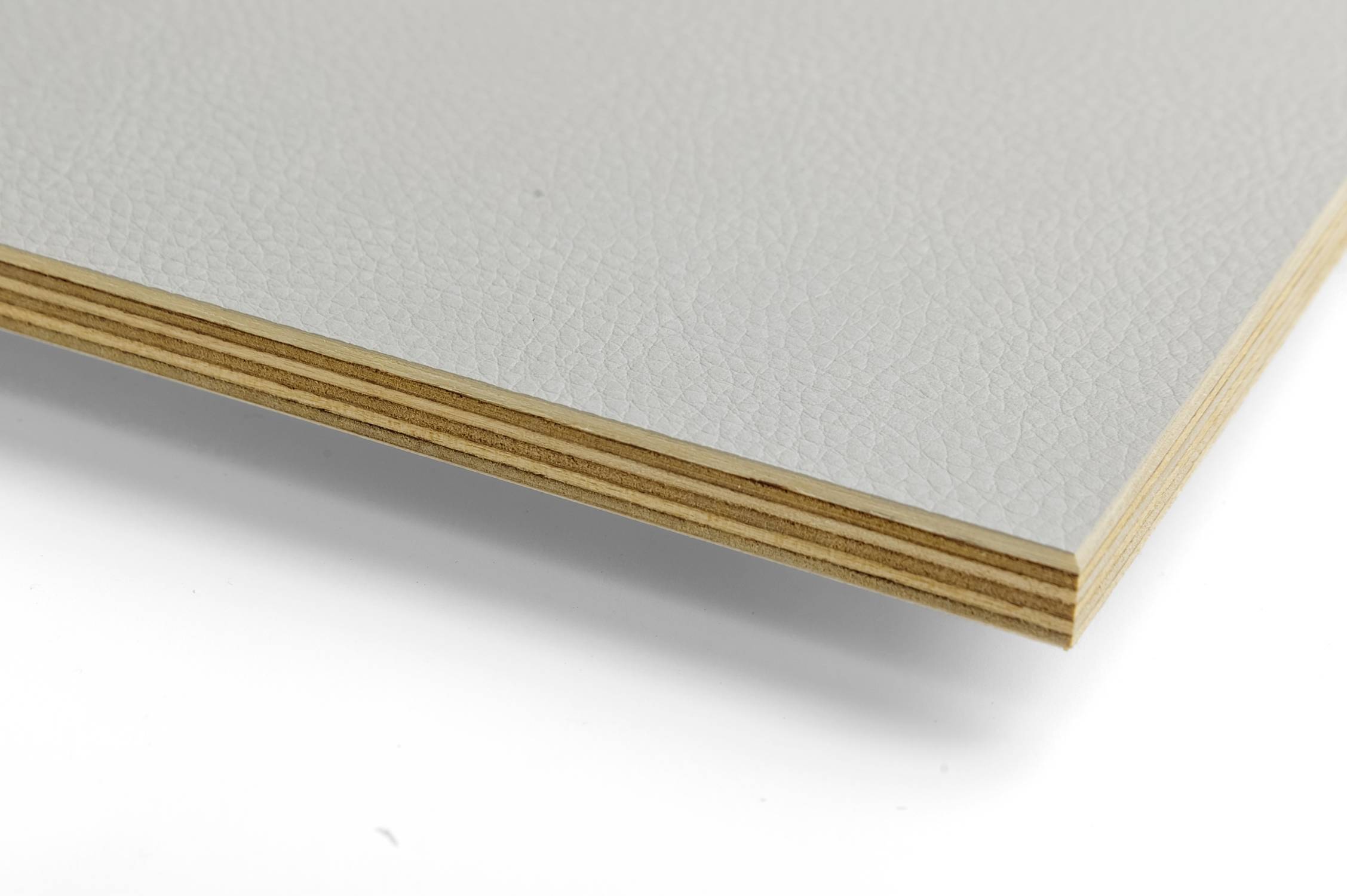

  • Riga Pattern+ Leather;
  • Riga Pattern+ Slatewood;
  • Riga Pattern+ Rock.


Further processing:

Riga Pattern+ can be further processed according to customer's specification with: cut-to-size, CNC, drilling, milling, jointing, edge machining and assembling in sets.


Wear resistance:

Taber test (EN 438-2) up to 2,500 revolutions depending on the coating.


Film colour:

Based on phenolic resin:

  • Dark brown;
  • Black.

Based on melamine resin:

  • Silver grey;
  • Light grey;
  • White.

Film weights from 220 g/m² to 440 g/m².


Edge sealing:

The edges are sealed with colour matched moisture resistant paint. Other colours are available upon request.

General information

Color

Brown

Black

Silver

Grey

White

Finish

Textured

Film

Wood grain

Woodgrain

Material

Plywood

Shape

Rectangle

Square

Other

Length

1220 mm

1250 mm

1500 mm

Guidance for specification option:

Riga Pattern+ Slatewood not available in this size.

1525 mm

Guidance for specification option:

Riga Pattern+ Slatewood not available in this size.

Bespoke

Guidance for specification option:

Riga Pattern+ Slatewood available just in 1220/1250 mm.

Manufacturer guidance

Other sizes available on request.

Riga Pattern+ Slatewood available just in 1220/1250 mm.

Width

2440 mm

2500 mm

2750 mm

3000 mm

3050 mm

Show more

Manufacturer guidance

Other sizes available on request.

Height

6.5 mm

9 mm

12 mm

15 mm

18 mm

Show more

Uniclass

Pr_25_71_97_85 Specialist veneer plywoodsPrimary

CAWS

K11/37 Plywood flooring

K11/315 Plywood flooring

Specification data - Specialist veneer plywoods

Standards

To BS EN 13986.

Third-party certification

EPD, FSC, PEFC.

Characteristics

Flexible.

Material

-

Type

Birch plywood.

Face veneer

European birch, overlaid with a hard wearing film.

Bonding quality

To BS EN 314-2, Class 3.

Guidance for specification option:

Riga Wood birch plywood is glued with weather and boil proof phenol formaldehyde or lignin phenol formaldehyde resin adhesive according to EN 314/Class 3 Exterior.

To BS EN 314-2, Class 1 and BS 1203, H1.

Guidance for specification option:

Bonding with moisture resistant low emission melamine urea-formaldehyde resin according to EN 314/ Class 1 and BS 1203 / H1 possible.

Surface appearance

Leather.

Slatewood.

Rock.

Number of plies

5.

Nominal thickness

6.5 mm.

Sheet size

1220 x 2440 mm.

1220 x 2500 mm.

1220 x 2750 mm.

1220 x 3000 mm.

1220 x 3050 mm.

1250 x 2440 mm.

1250 x 2500 mm.

1250 x 2750 mm.

1250 x 3000 mm.

1250 x 3050 mm.

1500 x 2440 mm.

1500 x 2500 mm.

1500 x 2750 mm.

1500 x 3000 mm.

1500 x 3050 mm.

1525 x 2440 mm.

1525 x 2500 mm.

1525 x 2750 mm.

1525 x 3000 mm.

1525 x 3050 mm.

Bespoke.

Guidance for specification option:

Other sizes available on request, consult manufacturer and insert requirements.

Manufacturer guidance

Riga Pattern+ Slatewood available just in 1220/1250 mm.

Edges

Square.

Recycled content

0%.

Colour/ Finish

Dark brown.

Black.

Silver grey.

Light grey.

White.

Wear resistance

To EN 438-2, up to 2500 revolutions.

Guidance for specification option:

Depending on coating.

Sustainability data

Contains Red List materials

Yes

Guidance for specification option:

Formaldehyde.

Country of material origin

Europe

Guidance for specification option:

Grown, harvested and processed in the European Union.

Country of product manufacture

Europe

Guidance for specification option:

Grown, harvested and processed in the European Union.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-750 kg CO₂ eq/unit

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration (EPD) Riga Wood overlaid birch plywood

FSC

FSC

FSC certificate

PEFC

PEFC

PEFC certificate

Literature

Attestation Production Control Certificate

Attestation Production Control Certificate

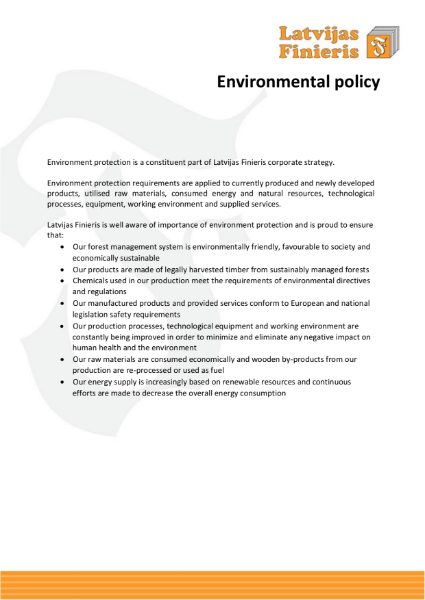

Environmental Policy - Riga Wood

Environmental Policy - Riga Wood

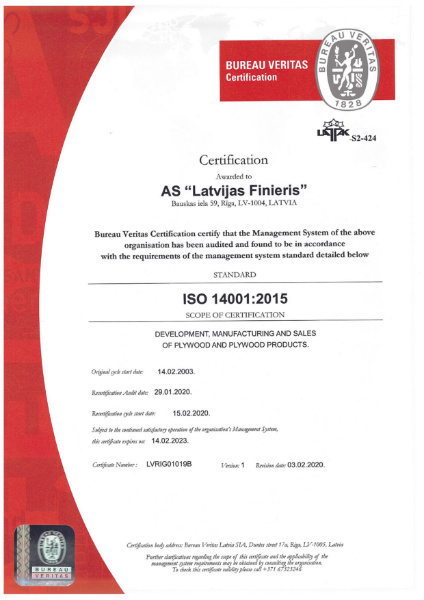

ISO 14001:2015 Certificate

ISO 14001:2015 Certificate

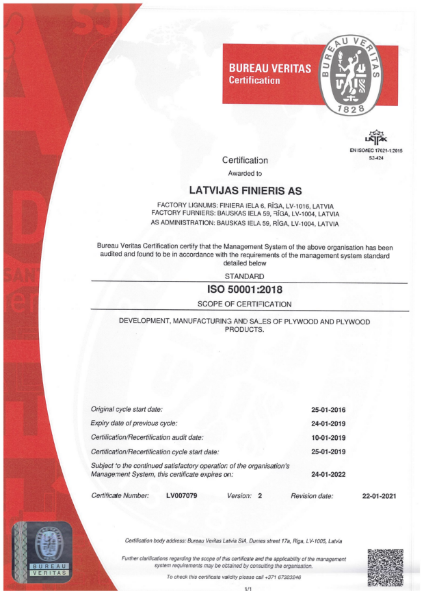

ISO 50001:2018 Certificate

ISO 50001:2018 Certificate

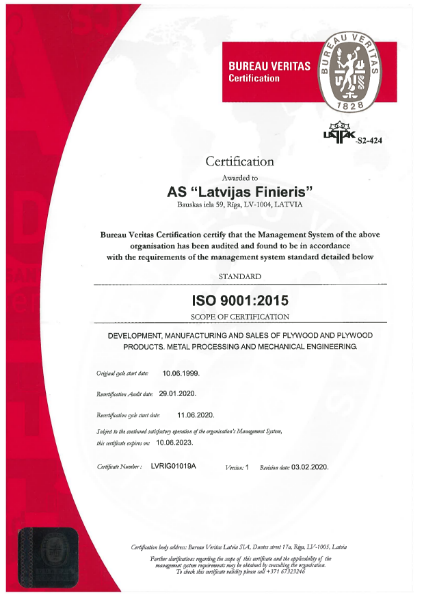

ISO 9001:2015 Certificate

ISO 9001:2015 Certificate

Plywood Handbook 2022 - Riga Wood

Plywood Handbook 2022 - Riga Wood

Plywood Processing Options - Riga Wood

Plywood Processing Options - Riga Wood

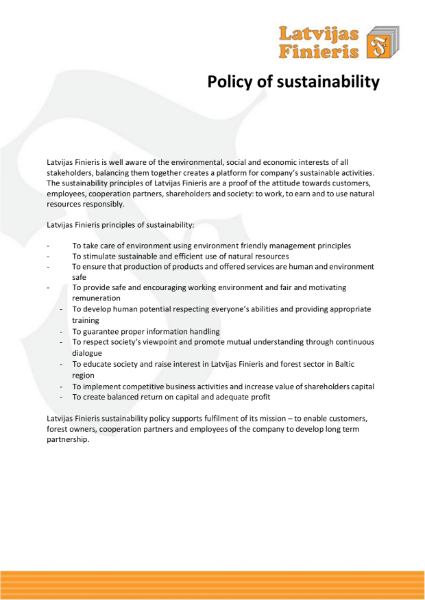

Policy of Sustainability - Riga Wood

Policy of Sustainability - Riga Wood

Riga ECOlogical - Riga Wood

Riga ECOlogical - Riga Wood

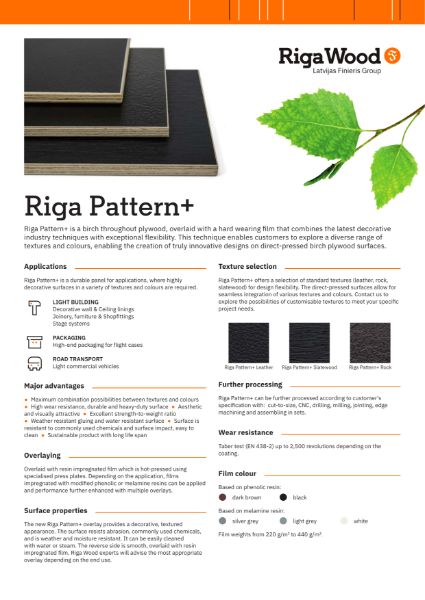

Riga Pattern+ - Datasheet - Riga Wood
