Riga Smooth Mesh - Specialist Veneer Plywood

Verified by manufacturer 6 months ago

6.5 mm

Riga Wood Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • FSC

    FSC

    Certificate type

  • PEFC

    PEFC

    Certificate type

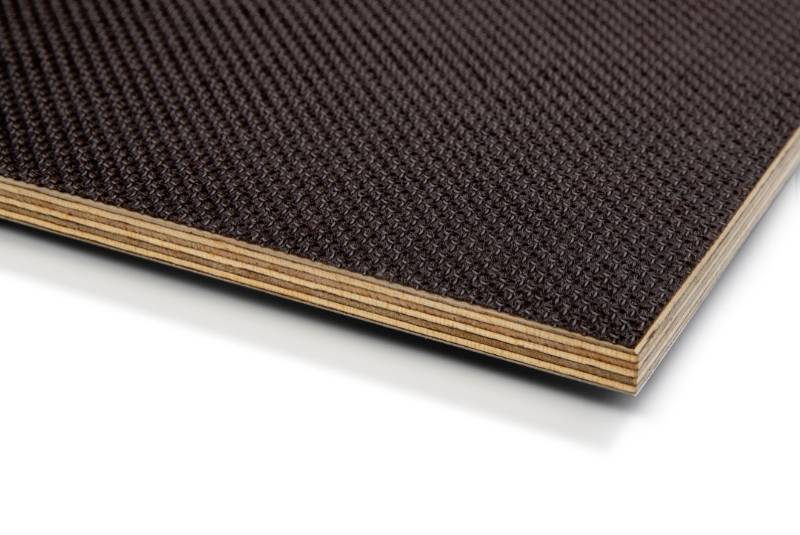

A birch throughout plywood, overlaid with a hard wearing special smooth wire mesh phenol pattern, combining both functionality and a decorative visual appearance.

Jump to:
+44 (0)1959 565300 Website

Application

Light building

  • Industrial wall and ceiling linings;
  • High-end flooring;
  • Joinery, furniture and shopfittings;
  • Stage systems and industrial flooring;
  • Outdoor solutions.


Road transport

  • Passenger cars.

Description

Riga Smooth Mesh is a durable panel for demanding applications; it can be used anywhere a heavy-duty, high wear-resistant and decorative appearance is required.


Features and benefits:

  • Decorative finish with smooth, visually attractive surface
  • Durable and heavy-duty with high wear resistance.
  • Excellent strength-to-weight ratio.
  • Weather resistant gluing and water resistant surface.
  • Surface is resistant to commonly used chemicals and surface impact, easy to clean for repeated uses.
  • Sustainable product with long life span.


Further processing

Riga Smooth Mesh can be further processed according to customer's specification with cut-to-size, CNC, drilling, milling, jointing, edge machining, and assembling in sets.


Surface properties

The wire mesh overlay improves panel resistance against mechanical damage and wear. It resists abrasion, and commonly used chemicals and is weather and moisture resistant. Depending on the film used (modified phenolic or melamine), abrasion, crack, UV resistance and other properties can be significantly improved. Riga Wood experts will advise the most appropriate overlay depending on the end use.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Finish

Film

Smooth

Textured

Material

Birch plywood

Shape

Rectangle

Square

Other

Length

1220 mm

1250 mm

1500 mm

1525 mm

Bespoke

Width

2440 mm

2500 mm

2745 mm

2750 mm

3000 mm

Show more

Height

6.5 mm

9 mm

12 mm

15 mm

18 mm

Show more

Uniclass

Pr_25_71_97_85 Specialist veneer plywoodsPrimary

CAWS

K11/38 Plywood wall sheathing

K11/815 Plywood

K11/37 Plywood flooring

K11/315 Plywood flooring

Specification data - Specialist veneer plywoods

Standards

BS EN 13986.

Third-party certification

EPD, FSC, PEFC.

Characteristics

Highly wear-resistant.

Material

-

Type

Birch plywood.

Face veneer

European birch, overlaid with resin impregnated film with wire mesh pattern (small).

Guidance for specification option:

4.5 mesh per 1 cm.

European birch, overlaid with resin impregnated film with wire mesh pattern (large).

Guidance for specification option:

2.5 mesh per 1 cm.

Balancing veneer

European birch, overlaid with smooth resin impregnated film.

As per face veneer.

Bonding quality

To BS EN 314-2, Class 3.

Guidance for specification option:

As standard.

To BS EN 314-2, Class 1 and BS 1203, H1.

Manufacturer guidance

Riga Wood birch plywood is glued with weather and boil-proof phenol formaldehyde or lignin phenol formaldehyde resin adhesive according to EN 314 Class 3 Exterior.

Bonding with moisture resistant low emission melamine-urea formaldehyde resin according to EN 314 Class 1 and BS 1203 H1 possible.

VOC emissions

To EN 13986, Class E1 and complies with EPA TSCA Title VI and CARB Phase 2.

Number of plies

5.

Nominal thickness

6.5 mm.

Sheet size

1220 x 2440 mm.

1220 x 2500 mm.

1220 x 2745 mm.

1220 x 2750 mm.

1220 x 3000 mm.

1220 x 3050 mm.

1250 x 2440 mm.

1250 x 2500 mm.

1250 x 2745 mm.

1250 x 2750 mm.

1250 x 3000 mm.

1250 x 3050 mm.

1500 x 2440 mm.

1500 x 2500 mm.

1500 x 2745 mm.

1500 x 2750 mm.

1500 x 3000 mm.

1500 x 3050 mm.

1525 x 2440 mm.

1525 x 2500 mm.

1525 x 2745 mm.

1525 x 2750 mm.

1525 x 3000 mm.

1525 x 3050 mm.

Bespoke.

Edges

Square.

Colour/ Finish

Dark brown.

Black.

Green.

Guidance for specification option:

BB grade veneer under this translucent film.

Light brown.

Yellow.

Show more

Manufacturer guidance

Based on phenolic resin: Dark brown, black, green, light brown, yellow.

Based on melamine resin: Silver grey, honey, opal white, light grey, blue.

Film weights from 120 g/m2 to 440 g/m2.

The edges are sealed with colour matched moisture resistant paint. Other colours are available upon request.

Wear resistance

Taber test to EN 438-2, up to 2500 revolutions.

Guidance for specification option:

  • Dark brown 120 g/m2 up to 400 revolutions.
  • Dark brown 220 g/m2 up to 900 revolutions.
  • Dark brown 440 g/m2 up to 2500 revolutions.

Manufacturer guidance

Depending on the coating.

Sustainability data

Contains Red List materials

Yes

Guidance for specification option:

Formaldehyde.

Country of material origin

Europe

Guidance for specification option:

Grown, harvested and processed in the European Union.

Country of product manufacture

Europe

Guidance for specification option:

Grown, harvested and processed in the European Union.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-750 kg CO₂ eq/unit

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

EPD

EPD

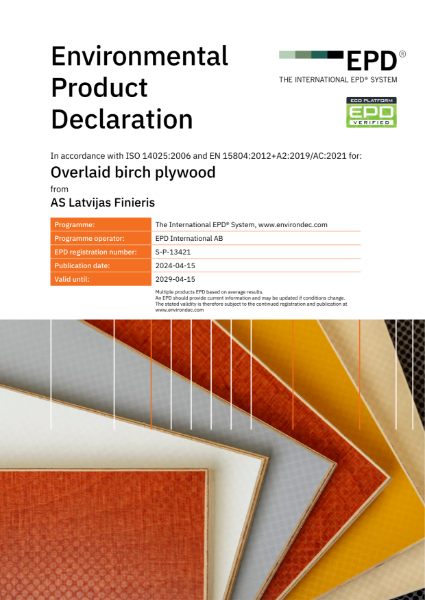

Environmental Product Declaration (EPD) Riga Wood overlaid birch plywood

FSC

FSC

FSC certificate

PEFC

PEFC

PEFC certificate

Literature

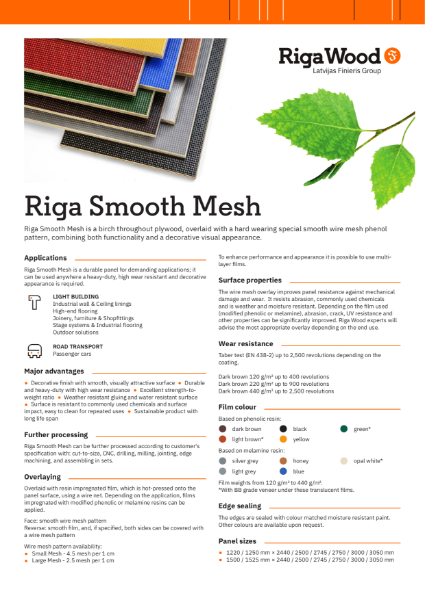

Riga Smooth Mesh - Datasheet - Riga Wood

Riga Smooth Mesh - Datasheet - Riga Wood

Plywood Handbook 2022 - Riga Wood

Plywood Handbook 2022 - Riga Wood

Plywood Processing Options - Riga Wood

Plywood Processing Options - Riga Wood
