Application

For the flexible connection of 6–12 mm thick tiled surfaces to building fixtures such as baths, shower trays, door and window frames.

Description

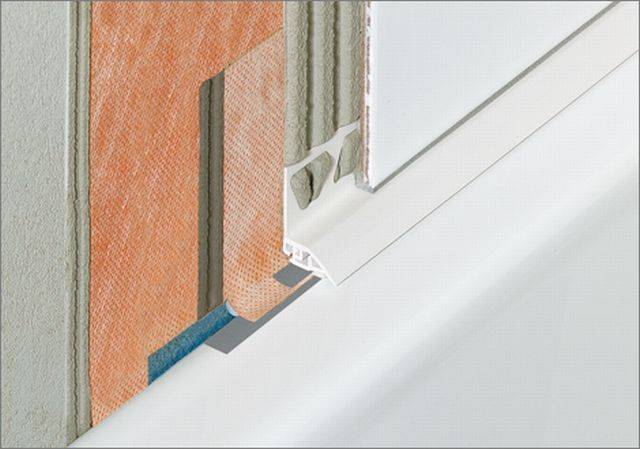

A perimeter joint profile with a rigid PVC anchoring leg and a flexible joining leg with self-adhesive tape to bond the profile to fixed building elements. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Designed to allow movement and reduce stress in large, tiled areas.
  • Eliminates the need for caulking.
  • Prevents cracking and delamination of tiles.
  • Ideal for applications such as bathtubs, shower trays, door and window frames.
  • Isolates the tile covering from fixed building elements.

General information

Shape

L-shaped

Color

White

Material

Polyvinyl chloride (PVC)

Warranty description

Five years

Size

20 x 2500 mm

Uniclass

Pr_35_90_22_66 Preformed tiling strip jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Preformed tiling strip joints

Material

Rigid PVC-U.

Finish or colour

White.

Size

-

Length (minimum)

2.5 m.

Depth

20 mm.

Product Reference

Schlüter®-DILEX-AS

Accessories

Not required.

End covers.

Internal corners.
