Schlüter®-DILEX-HKS
Verified by manufacturer 5 months ago

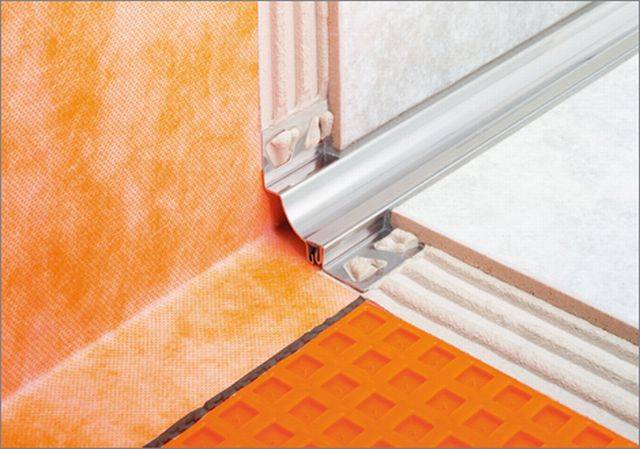

A stainless steel 18.5 mm radius cove-shaped profile with maintenance free movement zone.
Application
For facilitating the maintenance of internal corners of ceramic and natural stone wall surfaces where stringent hygienic requirements must be met and where limited movement is expected.
Description
A stainless steel 18.5 mm, radius cove shaped profile, with trapezoid-perforated anchoring legs. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:
- Features an 11 mm wide maintenance free movement zone made of synthetic rubber to absorb movements at wall/ floor transitions and at internal wall corners.
- End covers, connectors, two-way external corners and two- or three-way internal corners are available.
General information
Color | Grey Black Beige |
Material | Steel Guidance for specification option: Stainless steel V2A – 1.4301 or stainless steel V4A - 1.4404. |
Shape | Other |
Length | 2500 mm |
Width | 18.5 mm Guidance for specification option: Coved radius is 18.5 mm Manufacturer guidanceCoved radius is 18.5 mm |
Height | 8 mm 10 mm 12.5 mm 14 mm 16 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to M40/80 Strip movement joints M40/825 Strip movement joints |
Product range |
Specification data - Preformed tiling strip joints
Material | Stainless steel V2A- 1.4301.Stainless steel V4A- 1.4404/ Rubber. |
Finish or colour | Grey (RAL 7030).Black (RAL 9011).Light beige (RAL 1019).Pastel grey (no RAL). |
Size | |
Length (minimum) | 2.5 m. |
Product Reference | Schlüter®-DILEX-HKS |
To suit tile thickness (floor/wall) | 8/7 mm. Guidance for specification option: Available in V4A stainless steel 10/7 mm. Guidance for specification option: Available in V4A stainless steel 12.5/7 mm. Guidance for specification option: Available in V4A stainless steel 14/7 mm. Guidance for specification option: Available in V4A stainless steel 16/7 mm. Guidance for specification option: Available in V4A stainless steel |
Accessories | Not required. Two-way external corner. Two-way internal corners. Three-way internal corners. Connectors. |
Fixings | Adhesive. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel Guidance for specification option: Stainless steel V2A – 1.4301 or stainless steel V4A - 1.4404. |
Manufacturing plant location | |
Recyclability | Material can be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option: >90% by weight pre-consumer content Manufacturer guidanceWaste and reclaimed material can be recycled where facilities exist. |
Expected Life | 25 year |
