Application

For use in tiled coverings to provide a flexible connection to the buildings fixed elements, such as bathtubs, shower trays, and door and window frames.

Suitable for both residential use and medium-duty commercial applications.

Description

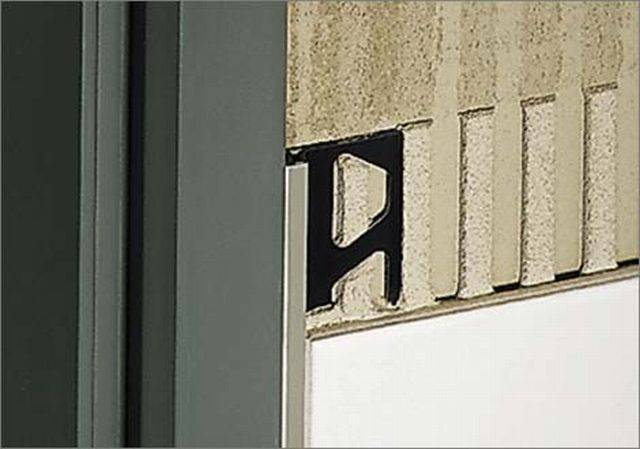

A perimeter joint profile with a rigid PVC anchoring leg and a 3/16” (5 mm)-wide, soft CPE movement zone that isolates the tile covering from fixed building elements.

Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Designed to allow movement and reduce stress in large, tiled areas.
  • Eliminates the need for caulking.
  • Prevents cracking and delamination of tiles.
  • Features a dovetailed channel made of rigid PVC that can be bonded to fixed building elements.
  • Movement zone is available in different colors to match the grout.

General information

Shape

L-shaped

Color

White

Grey

Beige

Black

Material

Polyvinyl chloride (PVC)

Warranty description

Five years

Uniclass

Pr_35_90_22_66 Preformed tiling strip jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Preformed tiling strip joints

Material

Rigid PVC-U.

Finish or colour

Brilliant white (RAL 9003).

Cream (no RAL).

Dark anthracite (no RAL).

Joint grey (no RAL).

Grey (RAL 7030).

Black (RAL 9011).

Light beige (RAL 1019).

Pastel grey (no RAL).

Stone grey (no RAL).

Size

-

Length (minimum)

2.5 m.

Depth

4.5 mm.

6 mm.

8 mm.

10 mm.

12.5 mm.

Product Reference

Schlüter®-DILEX-BWA

Sustainability data

Country of material origin

Germany
