Schlüter®-DILEX-BT/ -BTS/ -BT/O

Verified by manufacturer 4 months ago

Schlüter-Systems Ltd

A range of maintenance-free, structural expansion joint profiles.

Jump to:
+44 (0)1530 813396 Website

Application

For tile, natural stone and surface coatings.

Used to create expansion joints at wall/ floor transitions.

Can be added after the completion of surface coverings.

Description

A range of maintenance-free, structural expansion joint profiles.

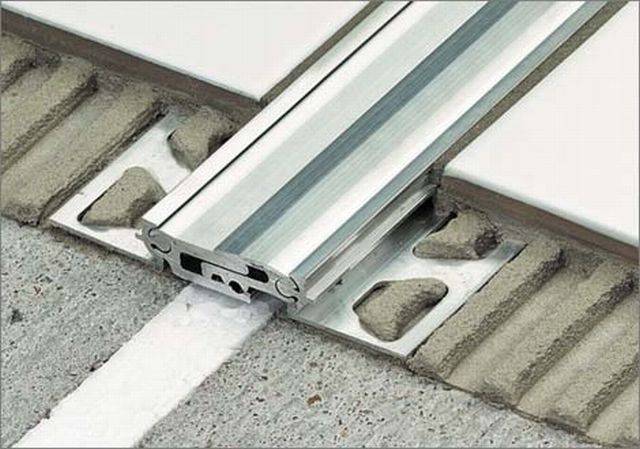

Schluter®-DILEX-BT is a heavy-duty expansion joint profile that bridges expansion joints and accommodates movement via the 1-3/16” (30 mm)-wide telescopic center section, which also forms the visible surface.

Schluter®-DILEX-BTO is an expansion joint profile that bridges expansion joints at floor/wall transitions and accommodates movement via the 1-3/16” (30 mm)-wide telescopic center section, which also forms the visible surface.

Schluter®-DILEX-BTS is a heavy-duty expansion joint profile that bridges expansion joints and accommodates movement via the 1-3/16” (30 mm)-wide telescopic center section, which also forms the visible surface.

Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Designed to allow movement and reduce stress in large, tiled areas.
  • Eliminates the need for caulking.
  • Prevents cracking and delamination of tiles.
  • Maintenance-free.

General information

Shape

T-shaped

Color

Grey

Material

Aluminium

Brass

Warranty description

Five years

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Metal section movement joints

Joint width (nominal)

30 mm.

Guidance for specification option:

BTO.

43 mm.

Guidance for specification option:

BT.

102 mm.

Guidance for specification option:

BTS.

Edging

-

Material

Aluminium.

Finish

Natural.

Anodised.

Colour

Natural.

Product Reference

Schlüter®-DILEX-BT

Schlüter®-DILEX-BTO

Schlüter®-DILEX-BTS

Height

8 mm.

10 mm.

12.5 mm.

17.5 mm.

20 mm.

Length

2.5 m.

Sustainability data

Country of material origin

Germany
