Schlüter®-DILEX-EDP

Verified by manufacturer 4 months ago

Schlüter-Systems Ltd

A 12 mm visible maintenance free stainless steel movement profile.

Jump to:
+44 (0)1530 813396 Website

Application

Suitable for tile and natural stone surfaces subjected to heavy use.

Description

A 12 mm visible maintenance free stainless steel movement profile which allows horizontal movement through a tongue and groove mechanism. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Trapezoid perforated anchoring legs offer secure edge protection for surfaces exposed to continuous vehicle traffic.
  • Due to the tongue and groove mechanism, the profile cannot absorb vertical movement, therefore appropriate measures must be taken to prevent vertical movement of the screed.

General information

Color

Grey

Finish

Stainless steel

Material

Stainless steel

Shape

Other

Length

2500 mm

Width

12 mm

Height

8 mm

9 mm

10 mm

11 mm

12.5 mm

Show more

Warranty description

Five year

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Metal section movement joints

Joint width (nominal)

12 mm.

Edging

-

Material

Stainless steel V2A – 1.4301.

Finish

Natural.

Colour

Natural.

Insert

-

Material

Stainless steel V2A – 1.4301.

Colour

Natural.

Product Reference

Schlüter®-DILEX-EDP

Profile heights

8 mm.

9 mm.

10 mm.

11 mm.

12.5 mm.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Stainless steel

Manufacturing plant location

Recyclability

Material can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Guidance for specification option:

>90% by weight pre-consumer content

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.

Expected Life

Five year

Similar products from Schlüter-Systems Ltd

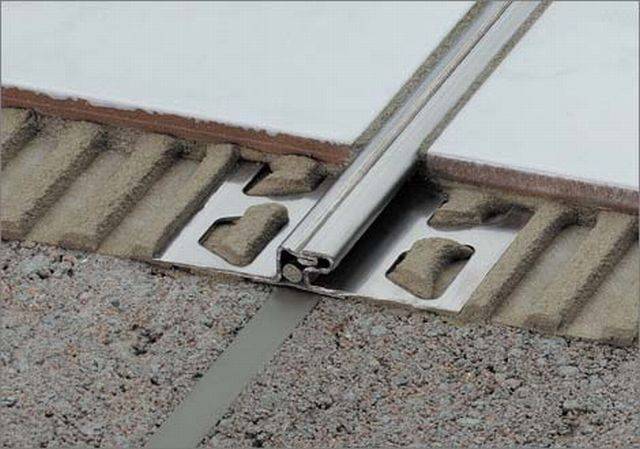

Schlüter®-DILEX-AKWS - Movement joint for tile and stone
