Sikaplan®-1651 Loose VOC Gas Barrier

Name: Sikaplan®-1651 Loose VOC Gas Barrier
Brand: Sika Limited
SKU: 6Nv83ufv3EzAv9T3ZWcL9s

Verified by manufacturer 3 months ago

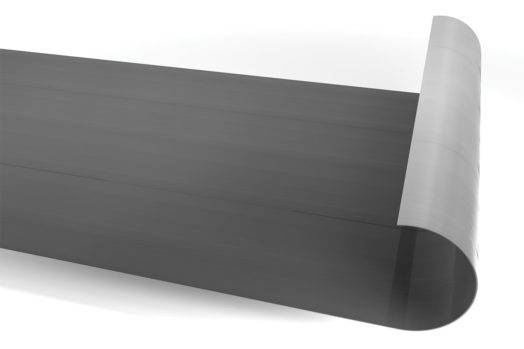

A loose laid, multi-layer, polyethylene membrane for ground level waterproofing and gas protection. It has exceptionally high resistance to ground gas and VOCs.

Jump to:

+44 (0)1707 394444 Website

Application

Suitable for use as ground gas, hydrocarbon protection and waterproofing at ground level or below ground installations.

Description

Sikaplan®-1651 Loose VOC Gas Barrier is specifically designed, manufactured, tested and certified to perform as a methane, carbon dioxide, radon, ground gas, VOC, air and moisture and hydrocarbon protection system. It is typically used for the gas and waterproofing of ground-level structures where harmful ground gases are anticipated.

Features and benefits:

Quick and easy installation.
A fully welded system.
High resistance to ground gases.
Exceptional chemical resistance.
Manufactured to meet the most up-to-date British Standards and guidance.
Long term durability (performance guarantees for the lifetime of the building).

Approvals/ standards:

Conforms to the requirements of EN13967:2012.
NHBC Standards Compliant.
CIRIA C748 Compliant (VOC barrier).
BS 8485:2015 + A1:2019 Compliant (methane and carbon dioxide barrier).
BBA Certified – Certificate No: 20/5738.

For full durability and chemical resistance information, please consult manufacturer.

General information

Color	Grey
Finish	Other
Material	Polyethylene
Shape	Other
Length	50000 mm
Width	2000 mm
Height	0.5 mm

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	D21/38 Gas-retardant membranes J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/145 Loose-laid weldable polyethylene gas-retardant membranes J40/35 Loose-laid plastics or rubber gas-retardant membranes

Product range	Waterproofing

Specification data - Plastics sheets

Material	Polyethylene.
Purpose	Ground level waterproofing and gas protection.
Standard	To BS EN 13967.
Performance characteristics	-
Tensile strength (minimum)	To EN 12311-1, 550 N/50 mm (MD); 400 N/50 mm (CMD).
Tear resistance	To EN 12310-1, 300% (MD and CMD). Manufacturer guidance Resistance to tearing (nail shank).
Resistant to underground gases	BS EN 13967.
Water vapour resistance (minimum)	To EN 1931, 0.93–0.95 g/m²/day. Manufacturer guidance Water vapour transmission.
Fire performance	To EN 13501-1, Class E.
Third-party certification	British Board of Agrément (BBA) certificate. Guidance for specification option: Certificate number 19/5681.
Physical properties	-
Colour	Grey.
Weight (minimum)	500 g/m². Manufacturer guidance To EN 1849-2.
Dimensions	-
Thickness (minimum)	0.5 mm. Manufacturer guidance To EN 1849-2.
Width (minimum)	2 m. Manufacturer guidance To EN 1849-2.
Roll length (minimum)	50 m. Manufacturer guidance To EN 1849-2.

Resistance to impact	To EN 12691-B, 650 mm.
Static load resistance	To EN 12730-B, ≥20 Kg.
Puncture resistance	To EN 12236, ≥2.0 kN. Manufacturer guidance Resistance to static puncture.
Watertightness	To EN 1928, Pass. Manufacturer guidance Watertightness 60 kPa and 196 kPa - 20 m water head (basement application).
Chemical resistance	To EN 1847 and EN 1928, Pass.
Methane permeability	To BS EN ISO 15105-1, 0.13 ml/m²/day/atm.
Carbon dioxide permeability	To BS EN ISO 15105-1, 3.01 ml/m²/day/atm.
Radon permeability	To K124/02/95, 1.0 x 10-¹² m²/s.

Literature

SikaPlan VOC & Gas Barrier Brochure
