Verified by manufacturer 6 months ago

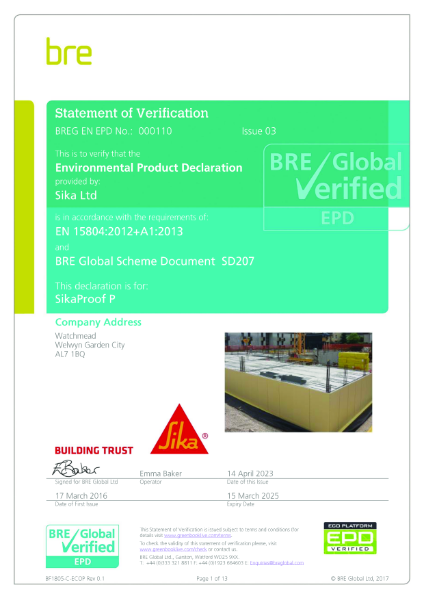

EPD
Certificate type
Flexible polyolefin (FPO) self-adhesive sheet membrane for post-applied fully bonded below ground waterproofing.
Damp-proofing, waterproofing and concrete protection for basements and other below ground structures against ground water ingress. Suitable for use on:

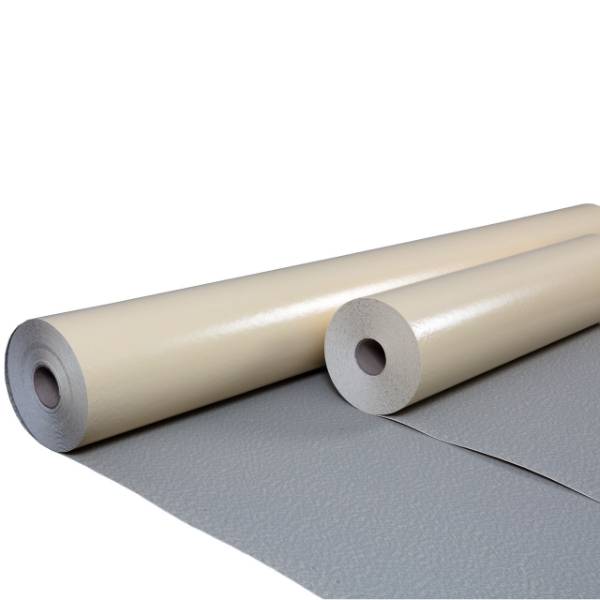

SikaProof® P-12 is a flexible polyolefin (FPO) self-adhesive sheet membrane for post-applied, fully bonded below ground waterproofing of existing reinforced concrete structures. It is pre-coated with an adhesive sealant layer and is cold applied onto primed concrete structure by a simple peel and stick process by using SikaProof® Primer-01 as a system primer.
Features and benefits:
Approvals/ standards:
Color | Yellow White Manufacturer guidanceLight yellow sheet membrane with a white release film on the adhesive side. |
Material | Flexible polyolefin (FPO) Guidance for specification option: Membrane layer. Polyolefin Guidance for specification option: Sealant/ adhesive. |
Shape | Formless |
Length | 20000 mm |
Width | 1000 mm |
Height | 1.2 mm Guidance for specification option: Total thickness. 0.6 mm Guidance for specification option: Membrane thickness. |
Uniclass | |
CAWS | J40/20 Loose-laid plastics or rubber sheet damp-proofing J40/120 Loose-laid plastics or rubber sheet damp-proofing J40/35 Loose-laid plastics or rubber gas-retardant membranes J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes |
Product range |
Material | Flexible polyolefin (FPO). |
Purpose | Waterproofing. |
Standard | To BS EN 13967. |
Performance characteristics | |
Tensile strength (minimum) | To EN 12311-2, ≥6.0 N/mm².Manufacturer guidanceMachine direction and cross direction. |
Tear resistance | To EN 12310-1, ≥200 N.Manufacturer guidanceResistance to tearing (nail shank). Machine direction and cross direction. |
Elongation to break | To EN 12311-2, ≥350%.Manufacturer guidanceMachine direction and cross direction. |
Resistant to underground gases | Radon. |
Water vapour resistance (minimum) | To EN 1931, 0.50 g/m² x 24h. |
Fire performance | To EN 13501-1, Class E.Manufacturer guidanceReaction to fire. |
Third-party certification | British Board of Agrément (BBA) certificate. |
Form | Non-woven. |
Physical properties | |
Colour | Light yellow.Guidance for specification option: Light yellow sheet membrane with a white release film on the adhesive side. |
Weight (minimum) | 1.20 kg/m² (-5 /+10%). |
Dimensions | |
Thickness (minimum) | 1.2 mm. |
Width (minimum) | 1 m. |
Roll length (minimum) | 20 m. |
Primer | SikaProof® Primer-01. Guidance for specification option:
|
Resistance to impact | To EN 12691 (Method A), ≥200 mm. |
Static load resistance | To EN 12730 (Method B), ≥20 kg. |
Modulus of elasticity | To EN ISO 527-3, ≤35 N/mm² (+/- 10%). |
Adhesion | To EN 1372, ≥100 N/50 mm (on primed concrete). Manufacturer guidanceAdhesion in peel. |
Shear resistance of joints (to EN 12317-2) | ≥125 N/50 mm. |
Crack bridging | To DIN EN 1062-7, Class A 5, no cracks. Manufacturer guidanceCrack bridging ability. |
Watertightness | To EN 1928, Pass (Method B, 24h/60 kPa). |
Material | Flexible polyolefin (FPO) Guidance for specification option: Membrane layer. Polyolefin Guidance for specification option: Sealant/ adhesive. |
