Single Glazed - No Fire Rating - Frameless glass partition

Verified by manufacturer 2 months ago

Life Pure 620

Lindner Group Variant:
Third party certifications:
  • ISO 14021:2016

    Certificate type

A range of single glazed, demountable glass partitions.

Jump to:
020 8246 6333 Website

Application

  • Office and conference rooms.
  • Industrial and factory areas.
  • Training and research facilities.

Description

With the continuous and frameless glazing Lindner Life Pure 620, a transparent and open room is created.

Aluminium profiles with powder-coated or anodised finishes provide horizontal and vertical connection to the building structure.


The partition system Lindner Life Nature is a new addition to Lindner's product portfolio. The symbiosis of wood and glass offers completely new design options, both for classically held interiors and for modern, alternate room concepts.


Features and benefits:

  • Customized, project-specific solutions are possible.
  • DGNB, LEED and C2C compliant.

General information

Color

Clear

Finish

Other

Material

Glass

Aluminium

Wood

Shape

Rectangle

Width

1500 mm

1250 mm

Manufacturer guidance

Up to.

Height

3500 mm

Guidance for specification option:

depending on glass thickness

3000 mm

Manufacturer guidance

Up to.


Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Product range

Partitions

Specification data - Partition panels

Unit size

-

Thickness

Manufacturer's standard.

Partition height (nominal)

Guidance for specification option:

Insert requirements, maximum 3500 mm.

Width (nominal)

Guidance for specification option:

Insert requirements, maximum 1500 mm.

Deflection allowance (maximum)

-

Head

+5 mm/ -15 mm.

Verticals

±10 mm.

Framing, fixing points and joints

Frameless. Substructure: Aluminum profiles.

Joint treatment

-

Type

Transparent tape.

Silicone.

Finish and colour

Clear.

Glazed panels

-

Type

Single glazed.

Additional features

None.

Glass finish - foils.

Glass finish - screen printing.

Glass finish - enamel.

Door arrangement

-

Type

-

Manufacturer guidance

Frame and door leaf system possible. Consult manufacturer for details.

Door frames

-

Manufacturer guidance

Frame and door leaf system possible. Consult manufacturer for details.

Other features

Not required.

Lindner Plus Acoustic Metal.

Lindner Plus Acoustic Textile.

MUTE+ board.

MUTE+ skin.

Calculated weighted sound reduction index (Rw)

40 dB.

Manufacturer guidance

To DIN EN ISO 717-1, up to.

Joint width

3 mm.

Performance

Structural performance (tested in accordance with DIN 4103, installation areas 1 and 2), non load-bearing.

Glass thickness

10 mm.

12 mm.

16 mm.

Sustainability data

Material

Glass

Aluminium

Wood

Recyclability

Most of the components can be reused/reprocessed

Expected Life

50 year

Third party certifications

ISO 14021:2016

ISO 14021:2016

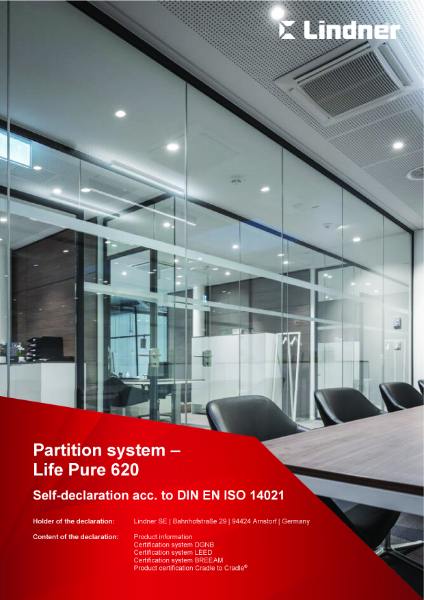

Lindner Life Pure 620 - Self-declaration

ISO 14021:2016

ISO 14021:2016

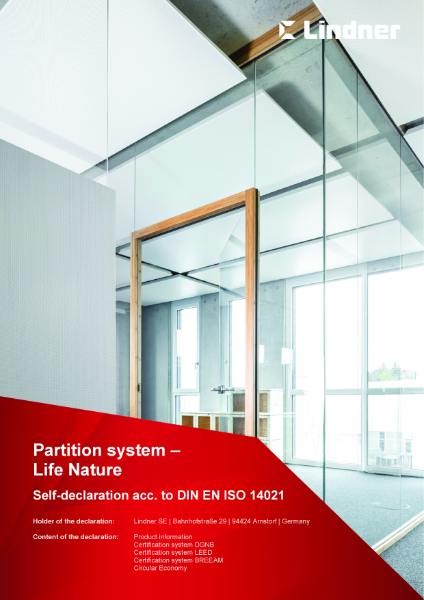

Lindner Life Nature - Self-declaration

Literature

Lindner Life Pure 620 - Data sheet

Lindner Life Pure 620 - Data sheet

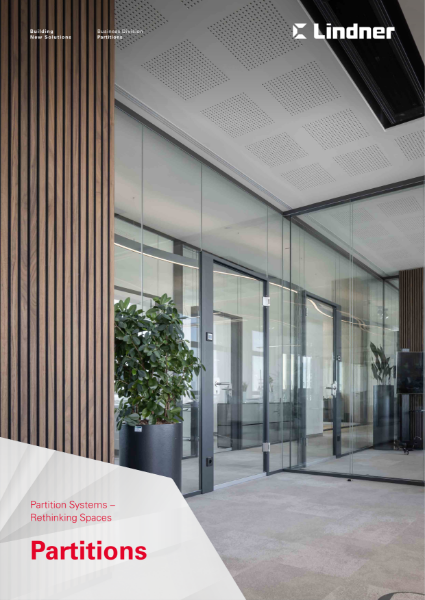

Lindner Partition systems and doors - Brochure

Lindner Partition systems and doors - Brochure

Lindner Life Nature - Data sheet

Lindner Life Nature - Data sheet

Case studies

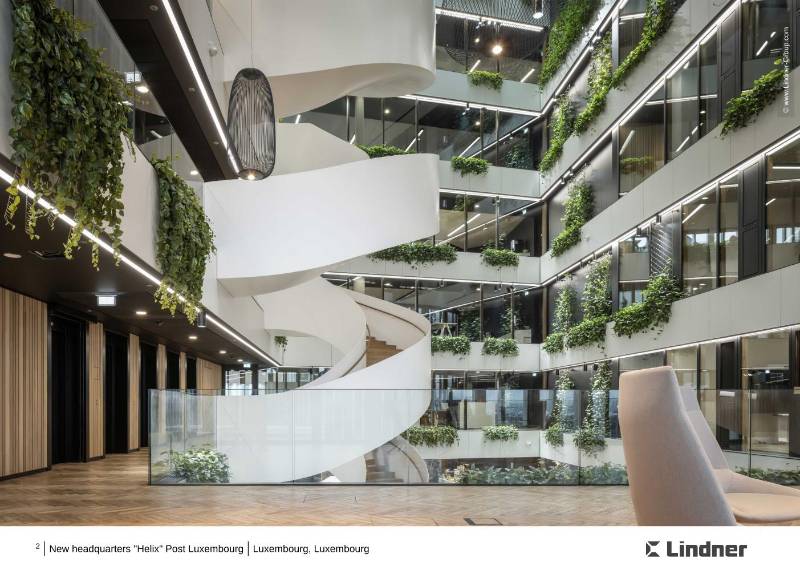

New headquarters "Helix" Post Luxembourg -> Partitions -> Floors

New headquarters "Helix" Post Luxembourg -> Partitions -> Floors

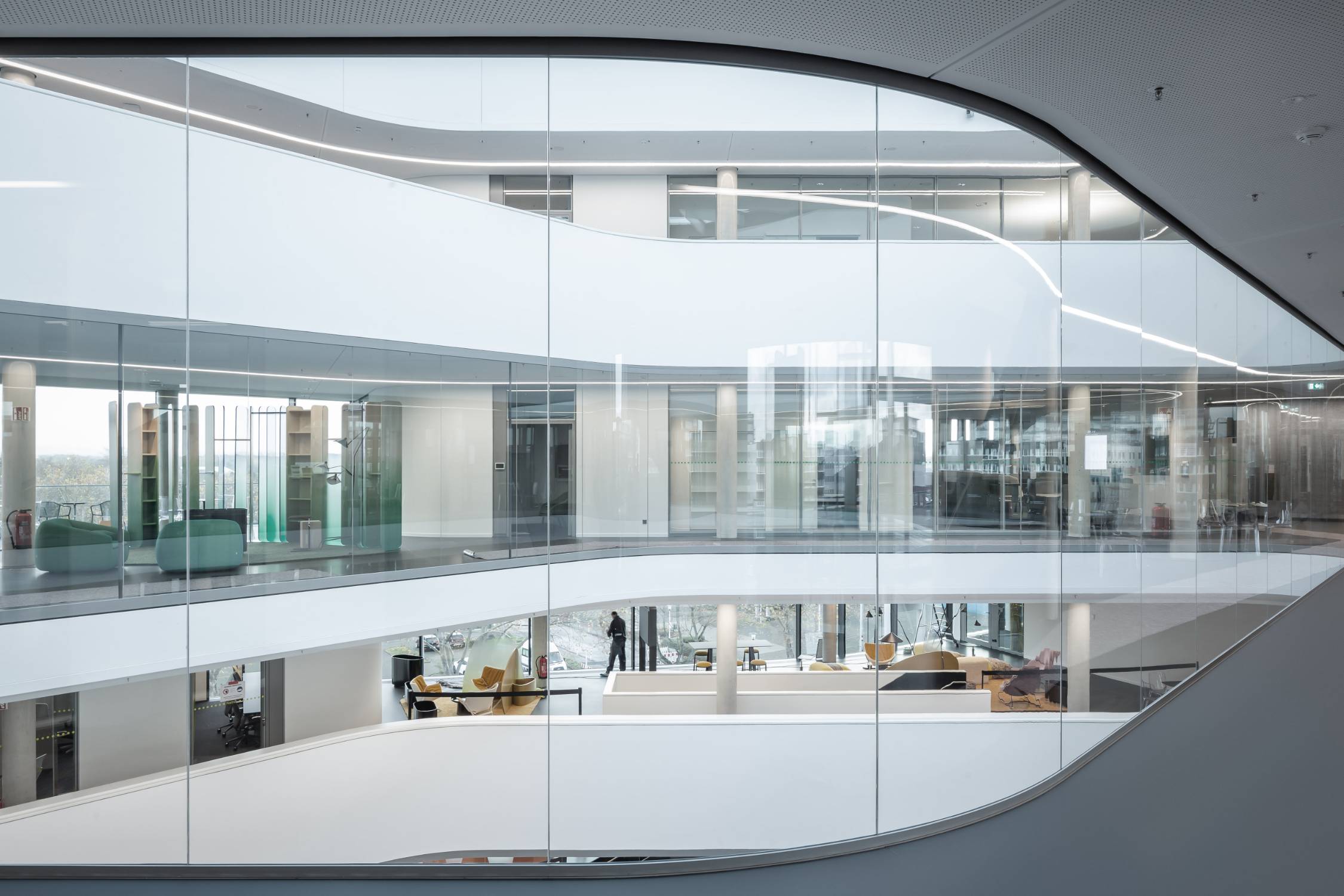

Covestro, Leverkusen -> Ceilings -> Partition -> Floors

Covestro, Leverkusen -> Ceilings -> Partition -> Floors

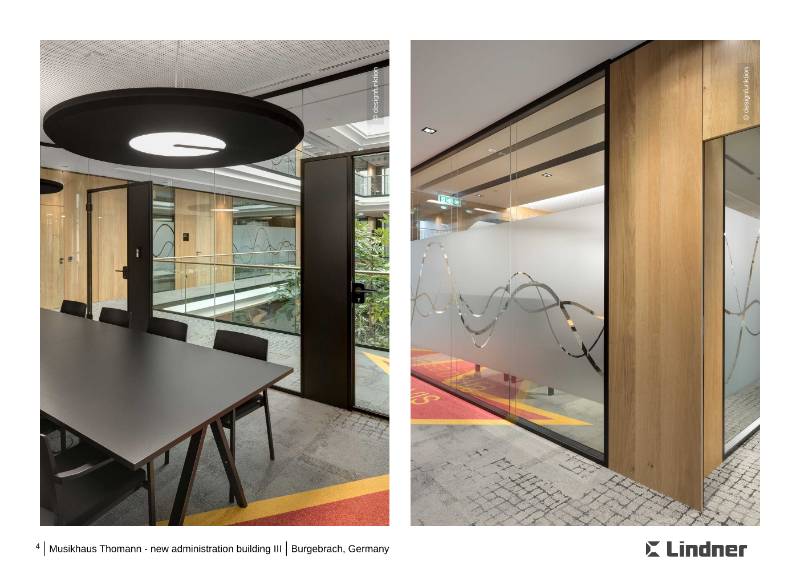

Musikhaus Thomann -> Partitions, Wall and ceiling panels
