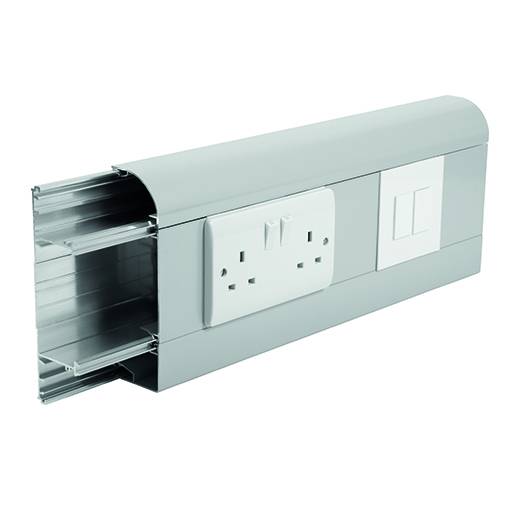

Sterling Curve Profile 2 Aluminium Trunking
Verified by manufacturer 9 days ago
Curved aluminium perimeter dado and skirting systems.
Application
Suitable for use in dado and skirting applications.
Description
Curved aluminium perimeter dado and skirting systems. A sleek and robust data compliant medium sized trunking system. The adaptable system has one or two curved data compartments designed to stop clutter, avoid dust traps and to make cleaning easy.
Features and benefits:
- Three segregated compartments.
- Suitable for dado and skirting applications.
- Tamper proof single piece cover.
- Flush fitting accessories.
- Up to CAT 7a compliant.
- Compatible with MT flush power and data and standard UK wiring accessories.
- First Class EMC/EMI screening performance.
- Part M compliant.
- CE and UKCA marked.
- Compliance with Low Voltage Directive 2014/35/EU and The Electrical Equipment (Safety) Regulations 2016.
Data information:
- Compliant up to Cat 7a.
- Standard bend radius 25 mm.
- Data fittings available for bend radius up to 50 mm.
- Adjustable data box 32-40 mm.
- Screened data boxes.
General information
Color | Silver Guidance for specification option: Silver Grey (RAL9006). |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 3000 mm |
Width | 50 mm |
Height | 167 mm |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Standards | To BS EN 50085-1:2005+A1:2013 BS EN 50085-2-1:2006+A1:2011; BS 7671:2018; IEC 61084-1:2017; IEC 61084-2-1:2017 and BS 5733:2010+A1:2014. |
Installation position | Surface mounted on the wall. |
Resistance to flame propagation | Non-flame-propagating. |
Protection by enclosure | |
Protection against ingress of solid objects (minimum) | IP4X. |
Screening | Aluminium containment will protect all internal circuits from external electromagnetic interference.Guidance for specification option: For internal segregation and screening, use a screened dividing fillet. |
Sizes | 167 x 50 mm. |
Compartments | Three. |
Accessories and fittings | |
Types | Not required.Curve Profile 2Coupler.Curve Profile 2End cap.Curve Profile 2Internal bend.Curve Profile 2Flat angle fabricated.Curve Profile 2Flat tee fabricated.Earth bonding kitCoupler pin.Bonding strap.Main crossover bridge(PVC–U).RCD/MCB housing.1 gang accessory box 30mm deep (polycarbonate).2 gang accessory box 30mm deep (polycarbonate).2 gang adjustable depth box (polycarbonate).1 gang accessory plate (polycarbonate).2 gang accessory plate (polycarbonate).1 gang screened accessory box(polycarbonate).2 gang screened accessory box(polycarbonate). |
Third-party certification | CE & UKCA marked; Low Voltage Directive 2014/35/EU; The Electrical Equipment (Safety) Regulations 2016; ISO 9001, 14001, 45001 and 50001. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Sterling Curve Profile 2 Aluminium Product Data Sheet
