Stöbich System: GCC - Conveyor Fire Protection System
Verified by manufacturer 17 days ago
Horizontal
Horizontal

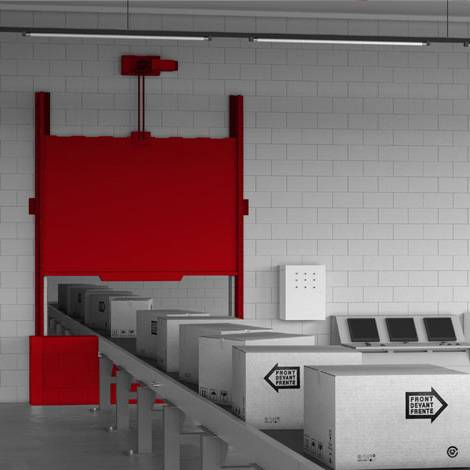

A single-leaf design, vertically or horizontally closing the wall opening of web-bound conveyer systems.
Application
Track-bound conveyor system fire protection.
Description
Single-leaf, vertically and horizontally closing fire protection closure for wall openings of web-bound conveyor systems; separated and unseparated conveyor technology in the closing area.
Features and benefits:
- Specialist building-based conveyor protection system.
- Space-saving.
- Single-leaf design.
- Vertically or horizontally closing.
- Achieves integrity and insulation.
- C5 durability - up to 200 000 operating cycles (vertical) and C4 durability - up to 100 000 operating cycles (horizontal).
- Fire resistance: EI1 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- ETA-16/0851 European Technical Assessment.
General information
Color | Red Grey Other |
Finish | Galvanized |
Material | Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Fire curtain systems
System performance | Manufacturer guidance
|
Fire curtain | Horizontal active fire curtain barriers.Guidance for specification option:
|
Head supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
Side supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Fire resistance | EI1 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Left to right. Right to left. |
Durability Class | C4 (100 000 closing cycles). |
Operation | Motor. Manufacturer guidanceRe-opening operation. |
Dimensions | Guidance for specification option: Clearwall opening - insert requirements.
|
System | Interrupted conveyor system. Inclined conveyor system. Continuous belt conveyor system. Continuous transfer carriage. Continuous suspension chain conveyor system. Manufacturer guidanceConveyor system type. |
Supporting structure | Guidance for specification option: Insert requirements.
|
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Stainless steel |
Recyclability | Manufacturer's standard |
