Super 250 M (Sliding Door Hardware)

Verified by manufacturer 3 months ago

Hawa Sliding Solutions AG Third party certifications:
  • EPD

    EPD

    Certificate type

Door hardware with top-fixed suspension, for use with heavy-weight metal sliding doors weighing up to 250 kg.

Jump to:
+41 44 787 17 17 Website

Application

Suitable for various fire-retarding applications.

Description

Door hardware with top-fixed suspension, for use with heavy-weight metal sliding doors weighing up to 250 kg.


Features and benefits:

  • Suitable for use with fire doors.
  • Simple to install.
  • Robust design.
  • Minimum axis radius of 1000 mm, consult manufacturer for details.
  • Includes steel top brackets for bolting.


Components:

Quantities vary depending on component, consult manufacturer for details.

  • Two-wheeled trolley M12, with steel wheels.
  • Top-fixing plate galvanized steel, with hanger bolt M12, and fixing screws.
  • Track stop, galvanized steel.
  • Screw-on rubber door stop.
  • Guide (14 mm), with bolt M10.

General information

Color

Grey

Silver

Finish

Anodized

Material

Aluminium

Stainless steel

Steel

Shape

Rectangle

Length

6000 mm

Bespoke

Guidance for specification option:

Cut to size

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Product range

Metal Sliding Doors

Specification data - Door track and running gear

Form

Running track: Stainless steel WNR, grade 1.4301 (304), top hung, Bottom guide channel: Aluminium, plain anodized, pre-drilled.

Guidance for specification option:

Bottom guide rail hole positions vary, consult manufacturer for details.

Running track

Side-drilled.

With top mounting flanges.

Length

6000 mm.

Cut to size.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Running track.

Bottom guide channel

Guidance for specification option:

Various configurations available, consult manufacturer's literature and insert requirements.

Accessories/ Other requirements

Not required.

Bottom door stop.

Guidance for specification option:

Available with dull chromium or stainless steel finish; insert requirement.

Floor-mounted guide, plastic.

Guidance for specification option:

Height can be shortened as required.

Manufacturer guidance

Other accessories and spares are also available, consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes

Third party certifications

Third party certifications

EPD

EPD

Hawa EPD Glass door gear EN

Literature

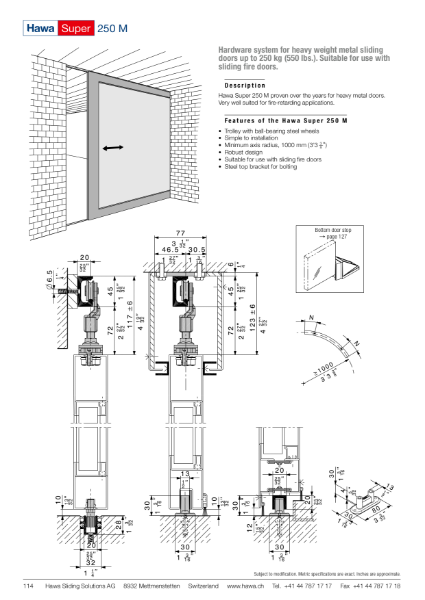

CAT_EN_Hawa_Super_250_M

CAT_EN_Hawa_Super_250_M
