Super 500 A (Sliding Door Hardware)
Verified by manufacturer 3 months ago
EPD
Certificate type

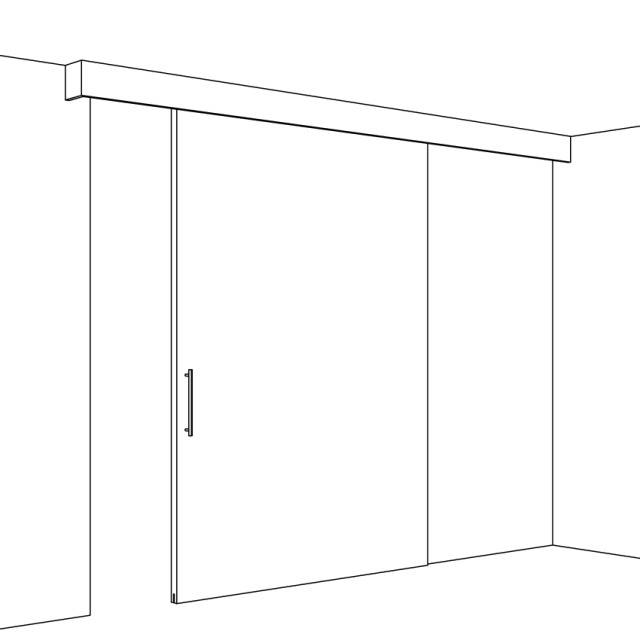

Sliding hardware with bracket suspension, for use with single wooden doors with a panel weight up to 500 kg.
Application
Suitable for use in low headroom applications, and with fire-retarding sliding doors.
Description
Sliding hardware with bracket suspension, for use with single wooden doors with a panel weight up to 500 kg.
Features and benefits:
- Suitable for use with fire-retarding sliding doors.
- Robust.
- Simple to install.
- Vertically adjustable (+12 to -8 mm).
Components:
- Three-wheeled trolley M12, with steel ball bearing wheels.
- Top and edge fixing bracket, with suspension plate and hanger bolt M12.
- Spring-loaded mortise-type door stop, galvanized steel, screw-fit.
- Floor-mounted galvanized steel guide, with groove width 5 mm.
- For two-panel sliding doors.
- Order two sets for single doors.
- Consult manufacturer for further details.
General information
Color | Silver |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 6000 mm Bespoke Guidance for specification option: Cut to size |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Specification data - Door track and running gear
Form | Stainless steel, grade 1.4301 (304), top hung running track.Guidance for specification option: Hole positions vary, consult manufacturer for details. |
Running track | Side drilled. Top mounting flanges. |
Length | 6000 mm. Cut to size. Guidance for specification option: Insert requirements. |
Accessories/ Other requirements | Not required. Cover plate for top and edge fixing bracket. Guidance for specification option: Available with dull chromium or stainless steel finish; insert requirement. Track stop, to be drilled into the track. Guidance for specification option: Galvanized steel. Manufacturer guidanceSpares are also available, consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Third party certifications
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature

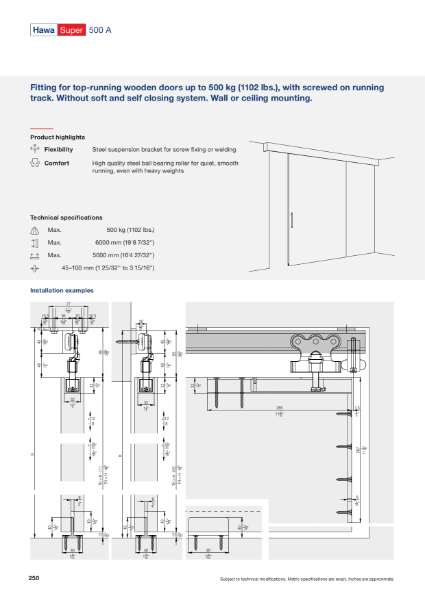

CAT_EN_Hawa_Super_500_A
