NBS Source
I'm a manufacturer

Symphony®

Verified by manufacturer 2 months ago

Autex Acoustics Ltd Third party certifications:
  • Declare

    Declare

    Certificate type

  • Green Tag

    Green Tag

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

Felt acoustic wallcovering

Jump to:
BOS
+44 (0)1422 418 899 Website

Application

  • Education
  • Commercial/office spaces
  • Retail


Description

A roll form acoustic wallcovering with a sleek, flat finish. Designed as a high-performance alternative to paint and wallpaper, Symphony expertly controls interior acoustics.


Features and benefits:

  • Delivers excellent acoustic performance
  • Available in a diverse colour palette
  • Floor to ceiling wall coverage without horizontal joins
  • Pinnable surface
  • Customisable for limitless branding and design options
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Manufacturer guidance

Available in a range of colours.

Material

Polyester

Guidance for specification option:

Polyester fibre (PET).

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form

Fabric.

Rigidity

Flexible.

Application

Wall mounting.

Material

Polyester fibre.

Material density

157 kg/m³.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class D to BS EN ISO 11654.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s1,d0.

VOC emissions

0.01 mg/m³.

Dimensions

-

Size (length x width)

1220 x 25 000 mm.

Thickness (overall)

10 mm.

Profile

Linear.

Surface pattern

Micro perforated.

Colour

Avocado.

Azure.

Bark.

Blazing red.

Blush,

Brilliant orange.

Charcoal.

Chilli red.

Cinder.

Citrus.

Electric blue.

Fawn.

Granny smith.

Jade.

Koala.

Lightsout.

Noir.

Octane.

Phantom.

Paspberry.

Sage.

Silver.

Stately.

Stonewash.

Wasabi.

Accessories

Fittings for wall mounting.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester

Guidance for specification option:

Polyester fibre (PET).

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.95 kg CO₂ eq/kg

Self declared

Recyclability

100

Guidance for specification option:

Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS).

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Minimum 60% post-consumer recycled PET material.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

2

Third party certifications

Declare

Declare

Declare - Composition®, Symphony®, and Visage™

Green Tag

Green Tag

Environmental Product Declaration - Symphony®, Composition®, and Vertiface®

Green Tag

Green Tag

Global Green Tag - Cascade™, Composition®,  Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®

HPDC Certification

HPDC Certification

Health Product Declaration - Symphony®/ Sordino®, Composition®, and Visage™

Literature

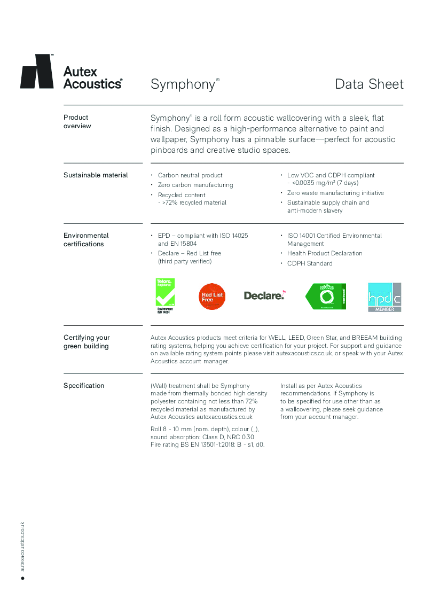

Symphony Datasheet

Symphony Datasheet

Symphony Install Instructions

Symphony Install Instructions

Symphony Lookbook

Symphony Lookbook

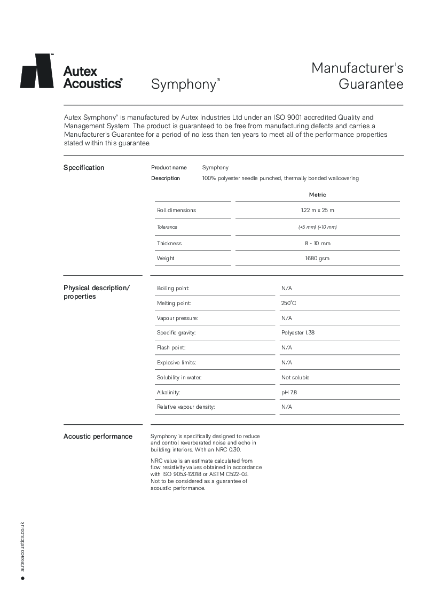

Symphony Manufacturer's Guarantee

Symphony Manufacturer's Guarantee

Colour Guide

Colour Guide
