Table mounted laboratory 0-8.5 bar pressure regulator purity level 2.0 - Regulator

Verified by manufacturer 3 months ago

BROEN-LAB Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

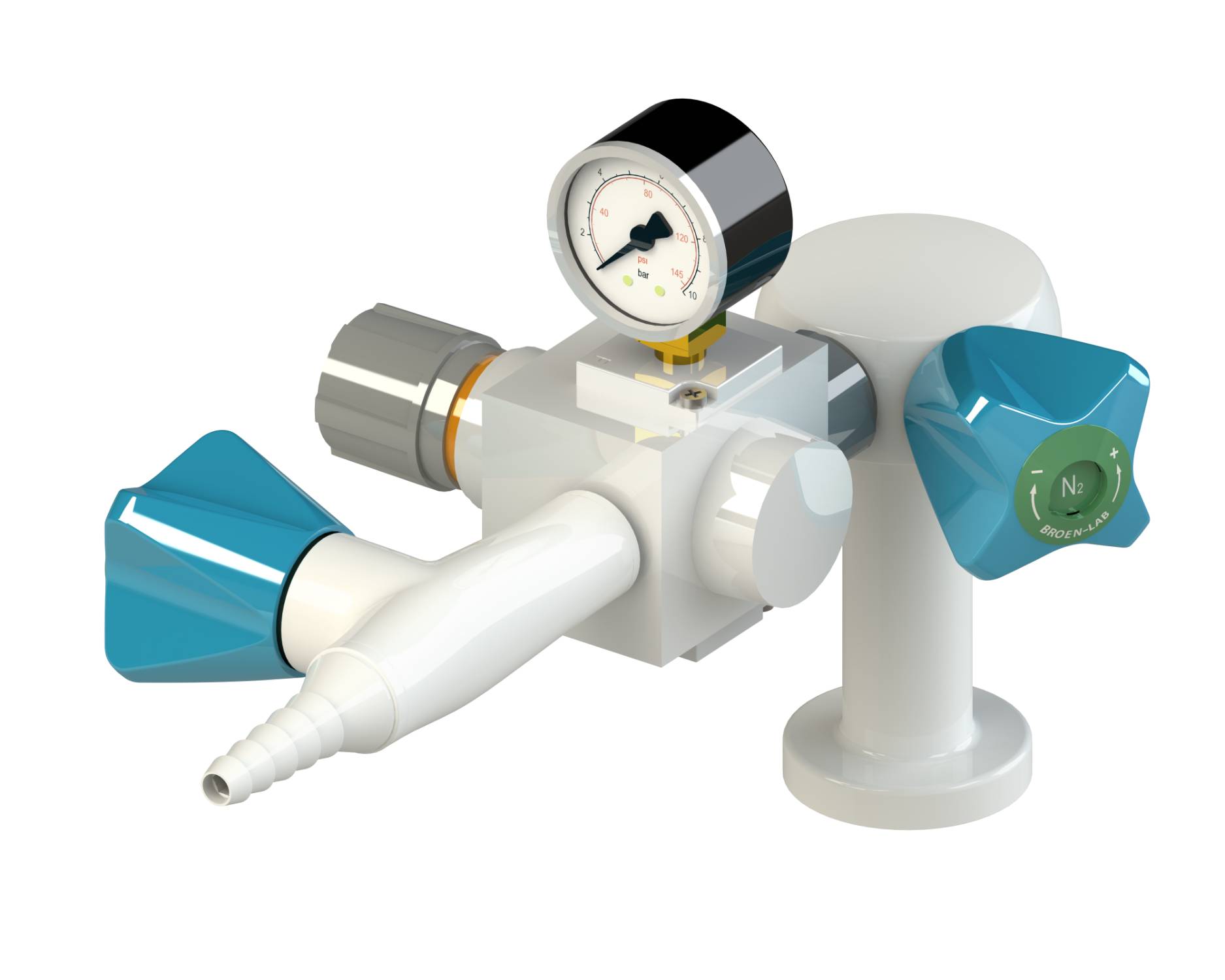

Table mounted laboratory 0-8.5 bar pressure regulator purity level 2.0 (99.00%) for argon, compressed air, nitrogen etc.

Jump to:
+44 (0)121 522 2225 Website

Application

Suitable for professional laboratories in most industries and in the educational sector.

Description

Table mounted laboratory 0-8.5 bar pressure regulator purity level 2.0 (99.00%) for argon, compressed air, nitrogen etc. With stop valve and flow regulator. Mounting kits with anti-rotational pins included. Mounting kit must have 2 screws for safe and easy mounting.

General information

Color

White

Blue

Finish

Powder-coated

Material

Brass

Shape

Other

Length

220 mm

Height

146 mm

Warranty description

Two year

Uniclass

Pr_65_54_33_45 Laboratory gas tapsPrimary

CAWS

N10/130 Laboratory furniture

Specification data - Laboratory gas taps

Mounting

Bench.

Number of outlets

One.

Nozzles

Fixed.

Operation

Handwheel.

Colour coding

To BS EN 13792.

Guidance for specification option:

Three-zone colour.

Inlet connection

UniFlex DIN 12 898 hose nozzle.

Accessories

Shut-off valve, pressure regulator and mounting kit.

MaximumWorkingPressure

17 Bar.

PressureRegulatorSetting

0–8.5 Bar.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Denmark

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO140001

QA Certificate

QA Certificate

ISO9001

Literature

Table mounted laboratory 0-8.5 bar pressure regulator purity level 2.0 TDS

Table mounted laboratory 0-8.5 bar pressure regulator purity level 2.0 TDS
