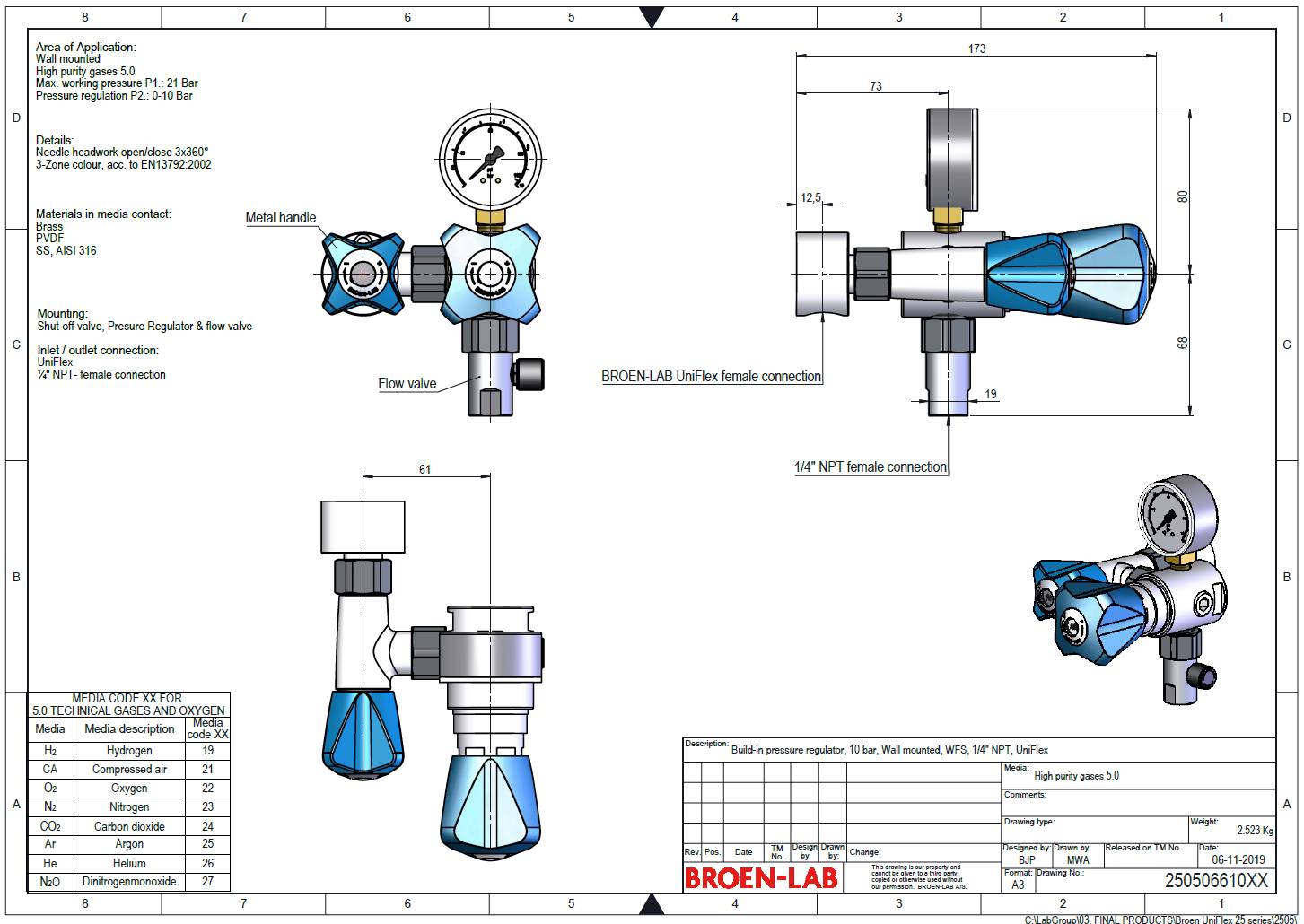

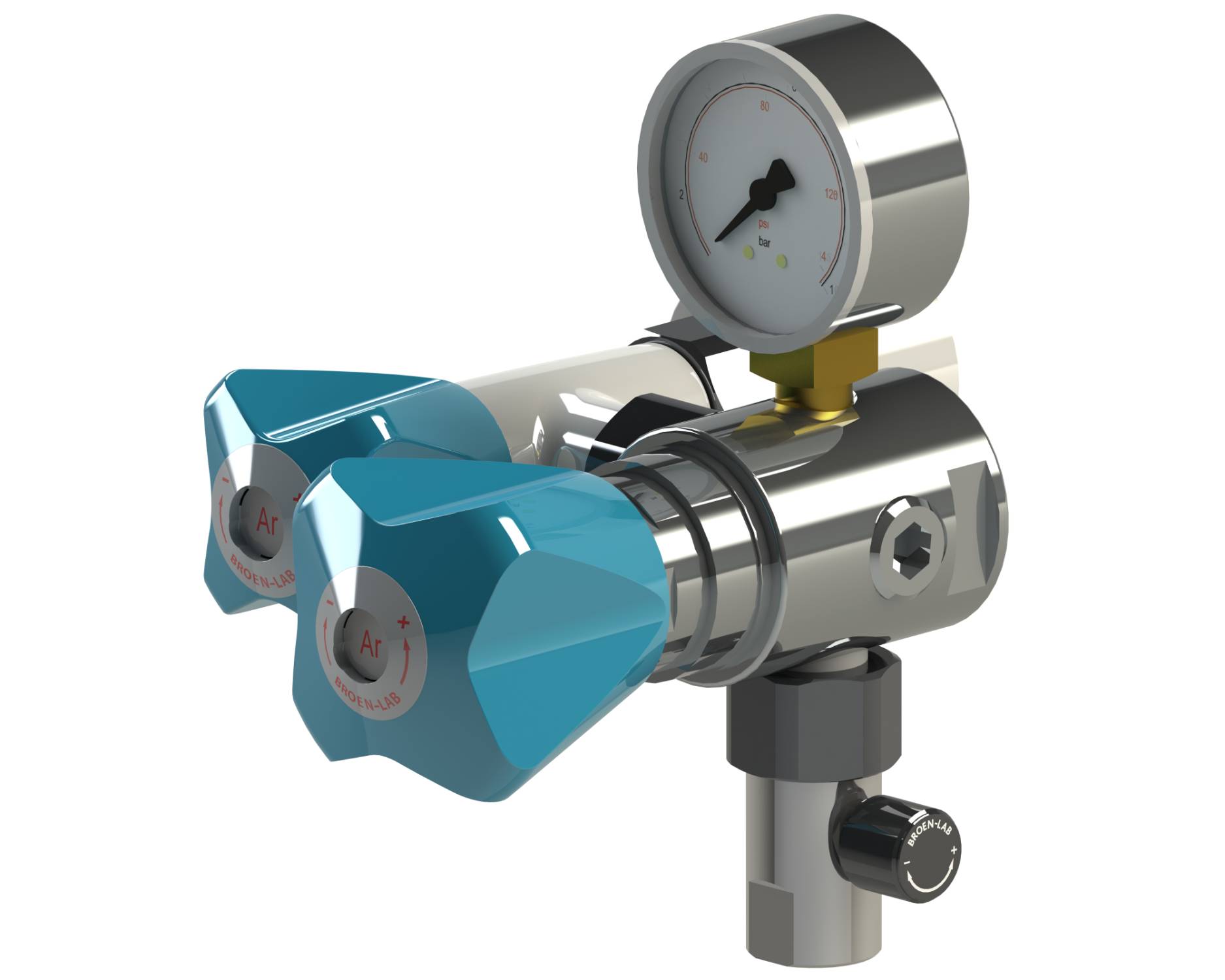

Wall-mounted laboratory 10 bar pressure regulator purity level 5.0 (99.999%) for helium, argon, compressed air, nitrogen etc.
For use with 5.0 gases: see manufacturer's literature for media codes.
Wall-mounted laboratory 10 bar pressure regulator purity level 5.0 (99.999%) for helium, argon, compressed air, nitrogen etc.
Features and benefits:
Installation:
For installation purpose use compression fitting 15212520 for outer diameter (OD) 15 mm CU pipe interface. Other sizes possible on request.
Color | Silver Guidance for specification option: Body. BROEN-LAB colour: 2700 (RAL colour: 0008500). Blue Guidance for specification option: Handles. |
Finish | Powder-coated |
Material | Brass Plastic Guidance for specification option: Plastics: polyvinylidene fluoride (PVDF); Sealing: FKM; Lubricant: Perfluoropolyether based. |
Shape | Other |
Uniclass | |
CAWS | N10/130 Laboratory furniture |
Mounting | Wall. |
Number of outlets | One. |
Nozzles | ¼" National Pipe Tapered (NPT) |
Operation | Turn handles (isolation valve, regulator and flow valve) |
Colour coding | Insert requirements to BS EN 13792Guidance for specification option: See manufacturer's literature for details of two-digit media codes available. Replaces 'XX' in SKU code. |
Inlet connection | Female BROEN-LAB UniFlex™ |
Product Reference | Wall Mounted Pure Gas Tap for Exposed Piping; With Isolation, Regulator and Flow Valve |
Country of product manufacture | Denmark |
