Table Mounted Laboratory Combination Water and Burning Gas Tap

Verified by manufacturer 4 months ago

BROEN-LAB Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

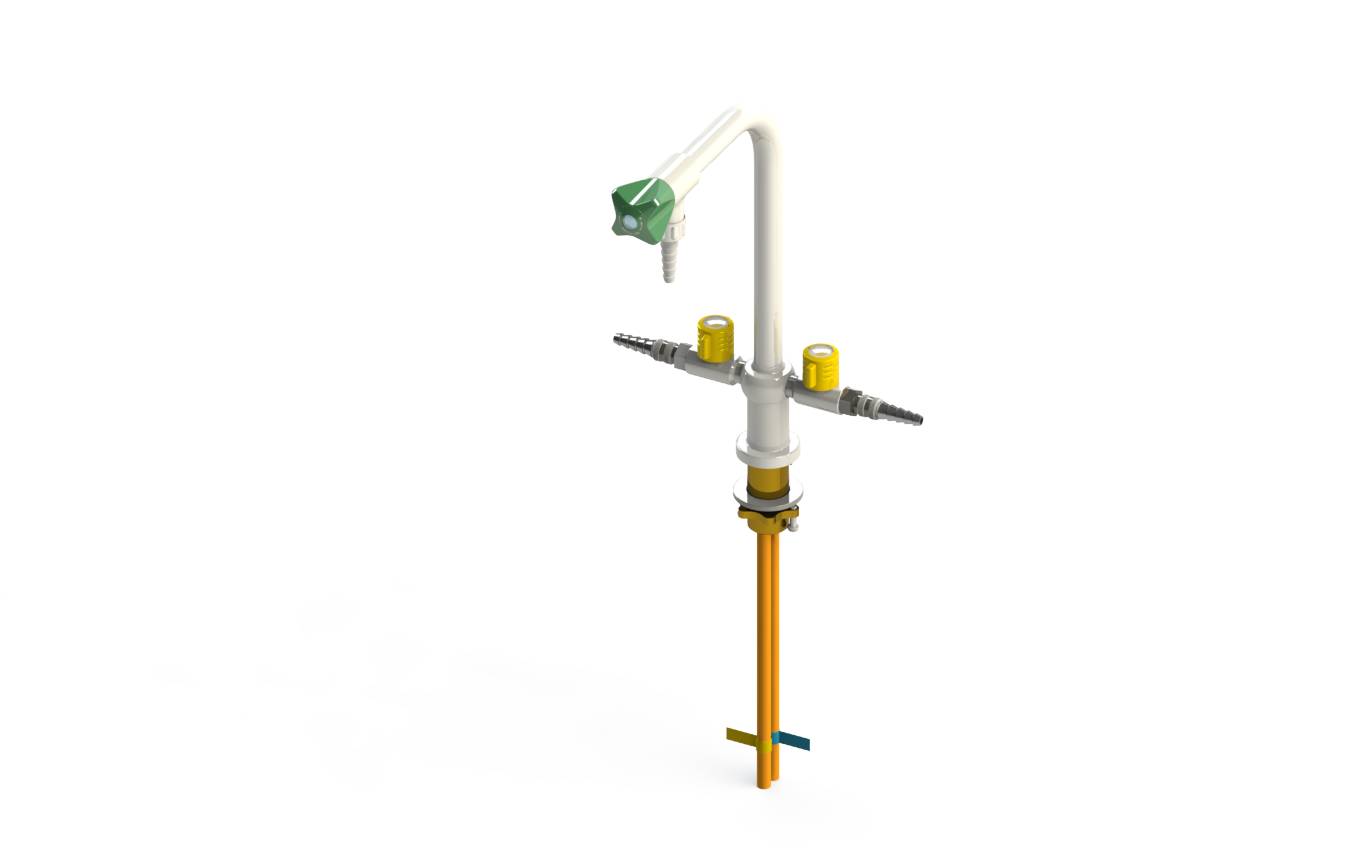

Table-mounted laboratory combination water bib tap and two burning gas taps.

Jump to:
+44 (0)121 522 2225 Website

Application

Laboratory combined burning gas/ water supply. See manufacturer's literature for media codes.

Description

Table-mounted laboratory combination water bib tap and two burning gas taps


Features and benefits:

  • Removable nozzle on water tap for high flexibility.
  • Lift-turn safety handle and quick release metal nozzle for high flexibility.
  • Built-in check valve for vandal resistance.
  • Water spout includes a built-in check valve.
  • Mounting kits with anti-rotational pins included.


Installation:

Mounting kit must have two screws for safe and easy mounting.

General information

Color

White

Guidance for specification option:

Body.

Green

Guidance for specification option:

Handles.

Yellow

Guidance for specification option:

Handles.

Finish

Powder-coated

Material

Brass

Shape

Other

Length

211 mm

Width

245 mm

Height

300 mm

Warranty description

Two year

Uniclass

Pr_65_54_33_45 Laboratory gas tapsPrimary

CAWS

N10/130 Laboratory furniture

Specification data - Laboratory gas taps

Mounting

Table.

Number of outlets

Three.

Nozzles

Metal, quick release

Operation

Turn handles

Colour coding

Insert requirements to BS EN 13792

Guidance for specification option:

See manufacturer's literature for details of media codes available.

Inlet connection

3 x CU pipe, outer diameter (OD) 10 mm

Accessories

-

Manufacturer guidance

Mounting kits with anti-rotational pins included.

Height

300 mm.

Guidance for specification option:

Overall.

Width

245 mm.

Spout projection

150 mm.

Guidance for specification option:

Standout.

Sustainability data

Country of product manufacture

Denmark

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO140001

QA Certificate

QA Certificate

ISO9001
