Telescopic Hoods 90 cm & 60 cm
Verified by manufacturer 2 days ago

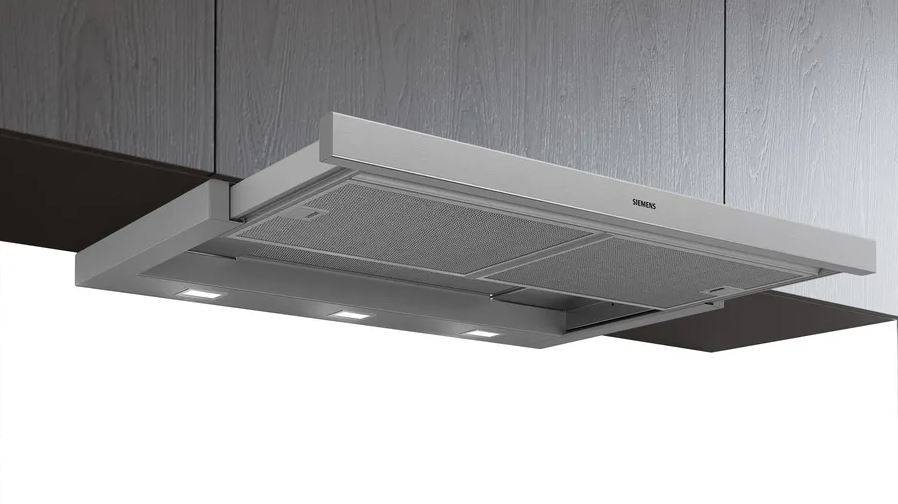

iQ300, Telescopic cooker hood, 90 cm, Silver metallic LI94MA531B
iQ300, Telescopic cooker hood, 90 cm, Silver metallic LI94MA531B
Powerful telescopic cooker hoods that disappears into an upper cabinet, suitable for modern kitchens.
Application
- For domestic applications.
- Suitable for ducted and re-circulating operation.
Description
Telescopic cooker hood, 90 or 60 cm, silver metallic.
Features and benefits:
- iQdrive motor - the quiet, high-performance motor ensures efficient removal of odours and steam.
- LED lights: for optimal visibility and ambience while cooking.
Models:
- LI94MA531B/ LI64MA531B: 90 or 60 cm wide, logo design handle, three speed + one intensive, easy electronic controls, LED lights. Optional CleanAir Standard Recirculation Kit: LZ11ITI14.
General information
Color | Silver |
Finish | Zinc plated |
Material | Metal Stainless steel |
Shape | Rectangle |
Length | 290 mm |
Width | 898 mm 598 mm |
Height | 203 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Kitchen extractor hoods
Standards | |
Performance testing | To BS EN IEC 61591. |
Operation | Extraction.Recirculation.Guidance for specification option: For recirculated extraction various recirculation kits are available as optional accessories. |
Installation | Integrated into wall unit. |
Material and finish | Silver metallic. |
Dimensions | |
Width (maximum) | 898 mm. |
Depth (maximum) | 290 mm. |
Height | 203 mm. |
Capacity (minimum) | 266 m³/h (air extraction); 263 m³/h (recirculating air).Guidance for specification option:
|
Controls | Electronic three-speed.Guidance for specification option: Type of control : Electronic. Number of speed settings : three stages + intensive setting. |
Features | Soft touch button control with electronic display, three power levels plus intensive setting, three 1.5 W LED, efficient BLDC motor, automatic intensive revert (6 mins), automatic after running (automatic after running (10 minutes)), three metal grease filter cassettes - dishwasher safe. |
Rating | 0.076 kW. |
Electrical supply | 220–240 V. |
Noise level at 1 m (maximum) | 63 dB(A) (air extraction); 63 dB(A) (recirculating air). |
Accessories | Not required.LZ49850: Handle strip.LZ49561: Spare part.LZ49521: Spare part.LZ45510: Standard odor filter (replacement).LZ45450: Standard recirculation kit.LZ11ITI14: Clean air standard recirculation kit.LZ11ITB14: Clean air standard odor filter (replacement).. |
Frequency | 50;60 Hz. |
Fuse rating | 10 A. |
Cable length | 175 cm. Manufacturer guidanceLength electrical supply cord. |
Energy rating | A. |
Operating | Convertible. |
Sustainability data
Material | Metal Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
