TETRiS® - Suspended Ground Floor System
Verified by manufacturer 6 months ago
T300.
T300.
BM Trada
Certificate type
Structural floor beam and insulation block flooring system.
Description
A revolutionary patented suspended ground floor system, designed to provide outstanding thermal and structural performance.
Compared with traditional concrete infill blocks, incorporating TETRiS blocks into the design dramatically reduces the static load imposed on the concrete beams, thus reducing the overall quantity of beams required and increasing the span bridged.
Features and benefits:
- 100% recyclable.
- Can achieve U-values as low as 0.11 W/m²K.
- CFC and HCFC free.
- High compressive strength.
- High thermal performance.
- Produces a floor with zero cold bridges.
- Quicker and easier to install than traditional beam and block floor systems.
- The insulation blocks sit on and between standard pre-stressed concrete floor beams and is finished with a structural concrete topping.
- It has been awarded the highest Code for Sustainable Homes construction rating of A+ = 3 Code credits (Element No. 820140051).
- Long term water absorption by immersion (% volume, to BS EN 12087): <0.7%.
Grade (to BS EN 826):
CS300.
General information
Color | Yellow |
Finish | Smooth |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 2500 mm |
Width | 300 mm 600 mm |
Height | 90 mm 100 mm 120 mm 140 mm 160 mm |
Uniclass | |
CAWS | E20/200 Proprietary underslab insulation E20/30 Underslab insulation |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Third-party certification | ISO 9001:2015. ISO 14001:2015. Q-Mark 003. |
Compressive strength (minimum) at 10% compression | To BS EN 826, 300 kPa. |
Thermal conductivity (maximum) | To BS EN 12667, 0.034 W/mK. |
Thickness | 90 mm.100 mm.120 mm.140 mm.160 mm.Manufacturer guidanceThickness above block: 75 mm. |

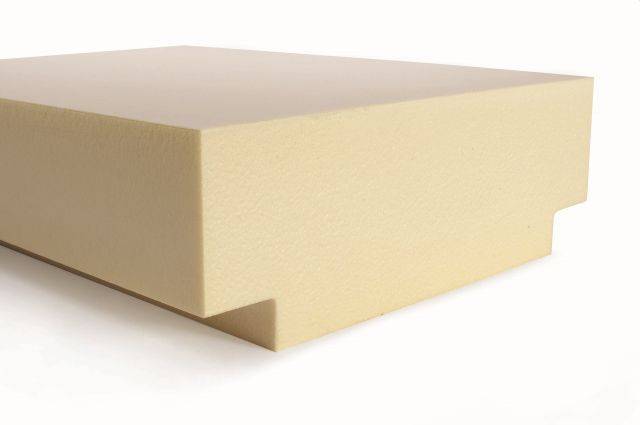

Edges | Rebated. |
Type | T300. Guidance for specification option: 300 mm width. |
Rebate size | Guidance for specification option: Insert requirement, available 30–50 mm to suit beam size. |
Gap strip | Not required. TGS. Guidance for specification option: Width available 53–600 mm. |
Vertical edge strip | Not required. TVES. |
Density | To BS EN 1602, 34 kg/m³ minimum. |
TemperatureRange | -50 to +75°C. |
Water vapour diffusion factor (to EN 12086) | 100—200 µ. |
Size: | 2500 x 300 mm. Guidance for specification option: T300 |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
Third party certifications

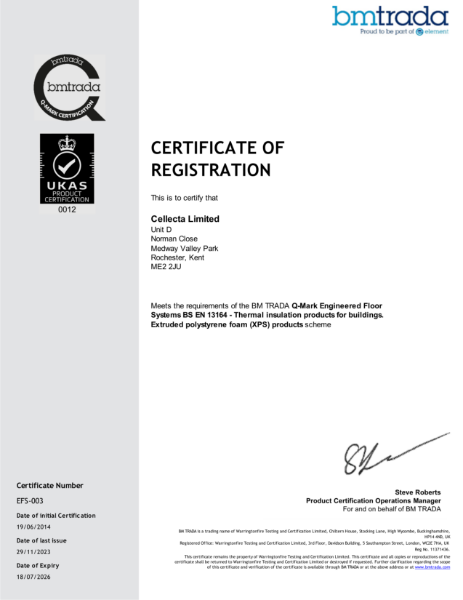

BM Trada
Q-Mark Tetris
Literature
Tetris
Case studies
Arras Way, Folkestone
