Triton Sealing Plug - Part of a Range of One-Step Seals for Formwork Spacers, pipes and ducts

Verified by manufacturer 2 months ago

Triton Systems

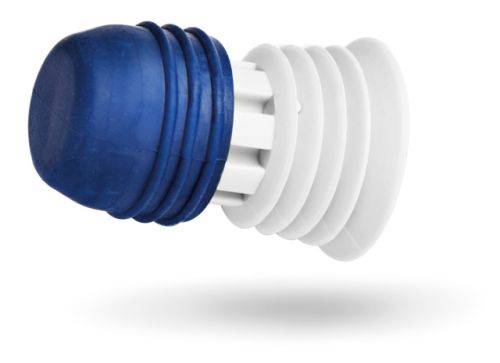

22 mm plug for internal active sealing of formwork spacers within the Watertight Concrete System.

Jump to:
+44 (0)1322 318830 Website

Application

To seal formwork spacers within the Watertight Concrete System.

Description

22 mm plugs for sealing formwork spacers. They are simply hammered in either or both ends of the formwork spacer. The swellable rubber cap prevents water infiltrating the spacer tube and the solid core provides a mechanical anchor under water pressures up to 6 bar.


Features and benefits:

  • They are designed to offer a more effective, quick and secure sealing solution than mastic or a length of water bar, both of which can be dislodged during the concrete pour.
  • Diameter: 22 mm.
  • Supplied in bags of 100.
  • Part of a range of one-step seals for formwork spacers and pipes.
  • Quick and easy installation.
  • No additional finishing or after-treatment required.

General information

Color

Blue

White

Material

Rubber

Guidance for specification option:

Synthetic rubber.

Shape

Circle

Length

-

Manufacturer guidance

22 mm diateter.

Width

-

Manufacturer guidance

22 mm diateter.

Uniclass

Pr_35_90_15_74 Rubber hydrophilic waterstopsPrimary

CAWS

D40/565 Proprietary waterstops

E40/320 Hydrophilic waterstops

Product range

Watertight Concrete Range

Specification data - Rubber hydrophilic waterstops

Cross section

22 mm diameter.

WaterPressureRange

Up to 6 bar.

Sustainability data

Material

Rubber

Guidance for specification option:

Synthetic rubber.
