TS5000-ECline - Overhead Door Closer With Guide Rail EN3-5 For Barrier-Free Opening (HUKP-0404-02) - Door accessories
Verified by manufacturer 2 months ago

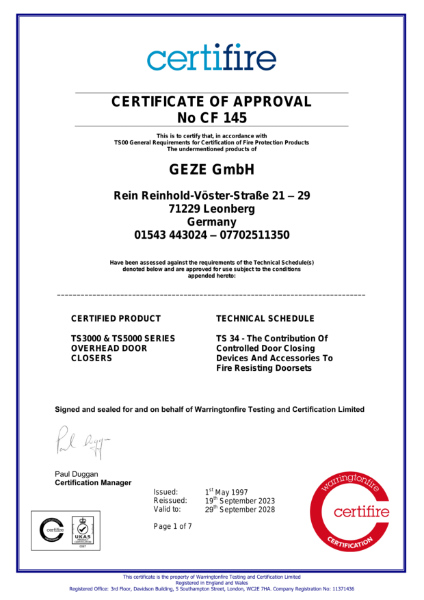

Certifire Certificate
Certificate type

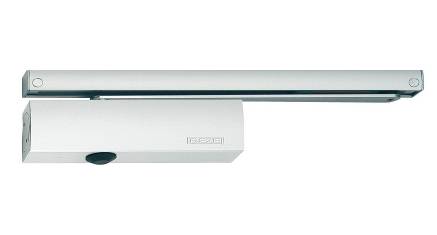

Overhead door closer with guide rail.
Application
- Suitable for up to two hours on timber door sets when closer body is door mounted on pull face and transom mounted on push face of the door.
- For steel doors and frames up to four hours' fire-resistance.
Description
Overhead door closer with guide rail.
Features and benefits:
- Closing force step-less between EN 3-5 visual closing force display.
- Closing speed, closing force, integrated backcheck and latch action.
- Adjustments easily accesses from the front of the unit.
- Maximum 1250 mm door width.
- Opening assistance integral to unit for easy opening of door leaf.
General information
Color | Black Bronze Gold Silver Manufacturer guidanceRAL colour available to special order. |
Finish | Polished Matt Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 287 mm |
Width | 60 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Durability | 8. |
Door closer power size | 5. |
Safety | 1. |
Form | Mounted on pull face and transom mounted on push face of the door. |
Closer functions | Back check and latching. |
Materials and finishes | |
Bodies | Stainless steel.Polished.Matt.Satin. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Satin stainless steel.Polished stainless steel.Silver sprayed.Light bronze.Dark bronze.Hafele black.Matt black.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 145. |
Dimensions | 287 x 60 mm. Guidance for specification option: Length x width. |
Third party certifications
Literature
7. Project - Architectural Door Controls
