Type GBOT

Verified by manufacturer 6 months ago

Cavity Trays Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Preformed linking of vertical and horizontal protective DPC mediums at balcony openings.

Jump to:
+44 (0)1935 474769 Website

Application

  • Traditional and timber frame construction compatible.
  • Suitable for new work applications.
  • Retrofit possible (consult manufacturer for details).

Description

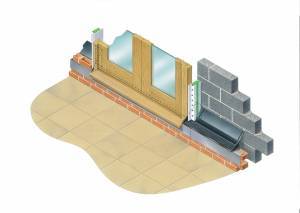

Interfacing between horizontal cavity tray and vertical cavicloser at openings onto balconies preventing closer water gravitating below the critical level of protection.


Features and Benefits:

  • Integrates vertical and horizontal damp proof course (DPC) mediums.
  • Establishes stopends to opening.
  • Prevents cavicloser discharging below the intersection.
  • Does not extrude or compress under load.
  • Chlorofluorocarbons (CFC) free and has Zero Ozone Depletion Potential (ODP).
  • May be used if cavity insulation present, pending type and placement.
  • Two format options available.
  • Arrested water evacuation via Caviweep(s) per tray.
  • Undulating masonry faces: Compatible in most instances.
  • Available for all masonry skin styles.

General information

Color

Black

Grey

Finish

Textured

Material

Polypropylene

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/270 Meshwork joint reinforcement

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Material

Polypropylene.

Petheleyne.

Guidance for specification option:

DPC.

To fit cavity width

50–160 mm.

Length (effective)

Guidance for specification option:

Length and dimensions varied to suit, insert requirements.

ThermalTransmittance

Negligible - 0.15–0.17 W/m²K.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Third party certifications

EPD

EPD

EPD - 0849

Literature

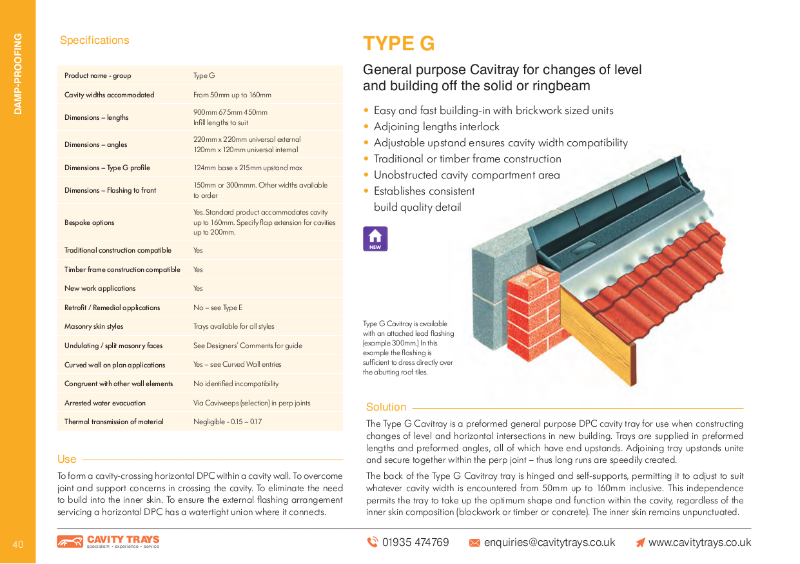

Cavity Trays Ltd Type G horizontal cavity tray lean to flat roof
