Type M Cavitray
Verified by manufacturer 8 months ago
EPD
Certificate type

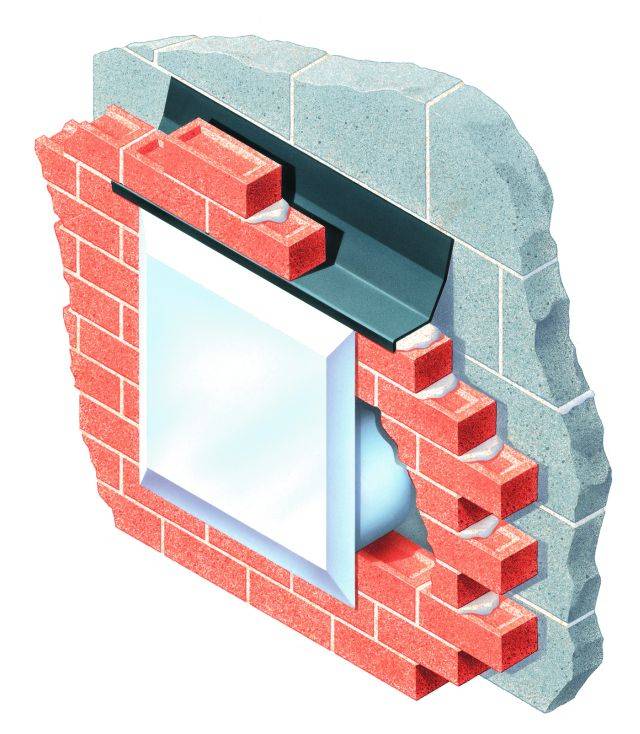

Preformed cavity tray for use above utility meter boxes.
Application
- For use over standard meter boxes (gas or electricity).
- Suitable for traditional masonry cavity or timber frame construction.
Description
Horizontal protection against damp penetration where a cavity wall accommodates an electricity or gas meter consumer supply control unit (meter box).
Features and benefits:
- Self-supporting upstand adjusts to cavity width (50–160 mm).
- Unobstructed cavity compartment area does not encourage mortar bridging.
- Available with flashing attachment.
- Compatible with Type L stop ends and Cavity Tray Ltd weep vents.
- DPC - polypropylene, colour black.
General information
Color | Black |
Material | Polypropylene |
Length | 900 mm |
Width | 160 mm |
Height | 200 mm |
Uniclass | |
CAWS | F30/370 Preformed cavity trays F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/56 Preformed cavity trays |
Specification data - Preformed cavity trays
Material | Polyethylene. |
To fit cavity width | 50–160 mm. |
Height | 210 mm.Guidance for specification option: Cavity upstand. |
Length (effective) | 900 mm.Guidance for specification option: Tray length. |
Attached lead flashings | Not required.Required.Guidance for specification option: Optional flashing attachment: Lead flashing to BS EN 12588 1.75 mm or 1.8 mm blue colour code (equivalent to BS 1178, code 4). |
Drop length | 150 mm. ___ mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.3 kg CO₂ eq/kg |
Recyclability | Material can be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Third party certifications
EPD
EPD - 0848
Literature
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
