Type X Cavitray

Verified by manufacturer 6 months ago

Type X

Cavity Trays Ltd Variant:
Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • EPD

    EPD

    Certificate type

Preformed DPC cavity tray with attached lead flashing.

Jump to:
+44 (0)1935 474769 Website

Application

For use at pitched roof/ gable abutments.

Suitable for traditional masonry cavity construction or timber frame construction.

Description

Preformed DPC cavity tray for use at pitched roof/ gable abutments.


Features and benefits:

  • Attached, shaped flashing secured in bosem jaw.
  • Attached lead flashings available in short or long lengths to suit roof tiling/ slating details.
  • Designed to suit standard 75 mm high brickwork courses.
  • Lead flashings and trays are flush pointed as masonry is raised eliminating the need to rake out joints for insertion/ fixing of lead flashing.
  • Hinged, variable angle upstand accommodates a wide range of cavity widths.
  • Perform flashing - Temperature resistance: -20°C to +70°C.
  • Perform flashing - UV and Ozone resistant.


Range:

  • Catchment trays for building in at the bottom of a slope to catch water and direct it, via weepholes, to the outside of a masonry wall.
  • Intermediate trays available in either hand, and built in at each course over the length of an abutment rake.

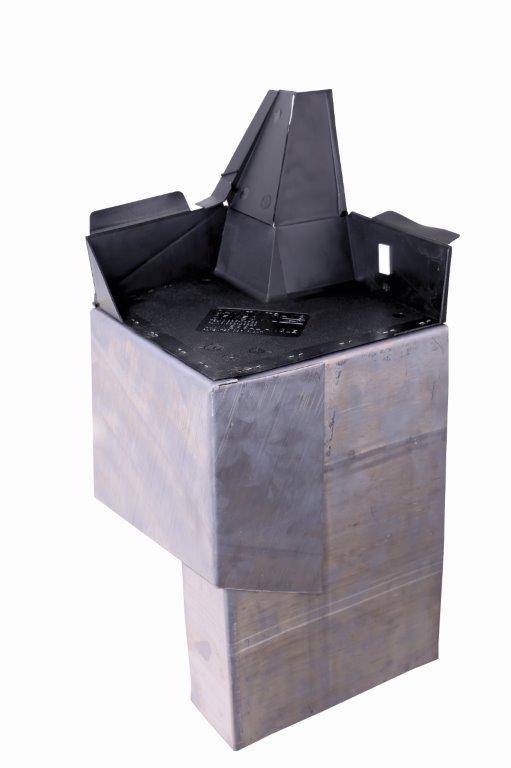

  • Ridge trays used to straddle a roof ridge abutment.
  • External angles used in place of catchment trays when commencing laying from the corner of a building.
  • Internal angles used in place of catchment where gable rises from internal corner of masonry.

General information

Color

Black

Finish

Embossed

Material

Polypropylene

Guidance for specification option:

Injection moulded solid DPC.

Shape

Other

Warranty description

20 year

Guidance for specification option:

Perform® flashing - Type XP Cavitray.

Uniclass

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Material

Petheleyne.

Guidance for specification option:

Injection moulded solid DPC.

To fit cavity width

50 mm.

75 mm.

100 mm.

160 mm.

Attached lead flashings

Required.

Execution

Installing preformed cavity trays.

Roof pitch

15°.

25°.

35°.

45°.

___°.

Material

Lead.

Guidance for specification option:

To BS EN 12588.

Aluminium.

Copper.

Type

Catchment tray.

Guidance for specification option:

Stop end at each end of tray; supplied with weepvents.

External angle.

Guidance for specification option:

Used instead of catchment trays if the abutment ends or returns on a corner. Can also provide a link with horizontal trays.

Intermediate tray, left hand.

Guidance for specification option:

With one stop end on each tray; discharges water to the tray beneath.

Intermediate tray, right hand.

Guidance for specification option:

With one stop end on each tray; discharges water to the tray beneath.

Internal angle.

Guidance for specification option:

Used instead of catchment trays if the abutment ends or returns on a corner. Can also provide a link with horizontal trays.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Guidance for specification option:

Injection moulded solid DPC.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-0.4 kg CO₂ eq/kg

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

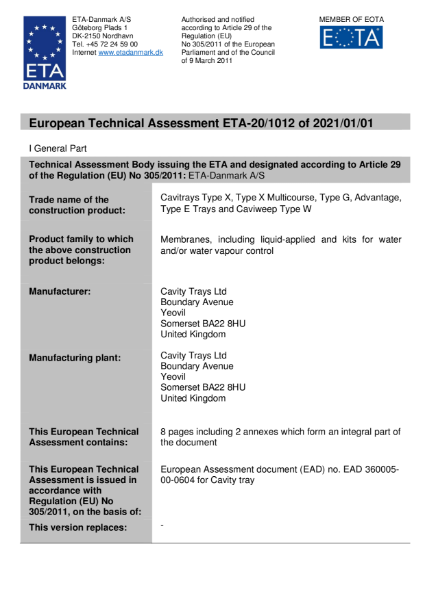

European Technical Approval - Cavity Trays

EPD

EPD

EPD - 0849

Literature

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

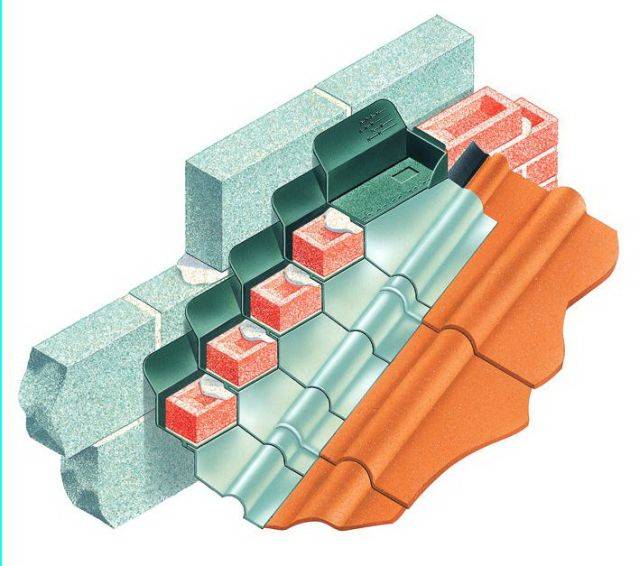

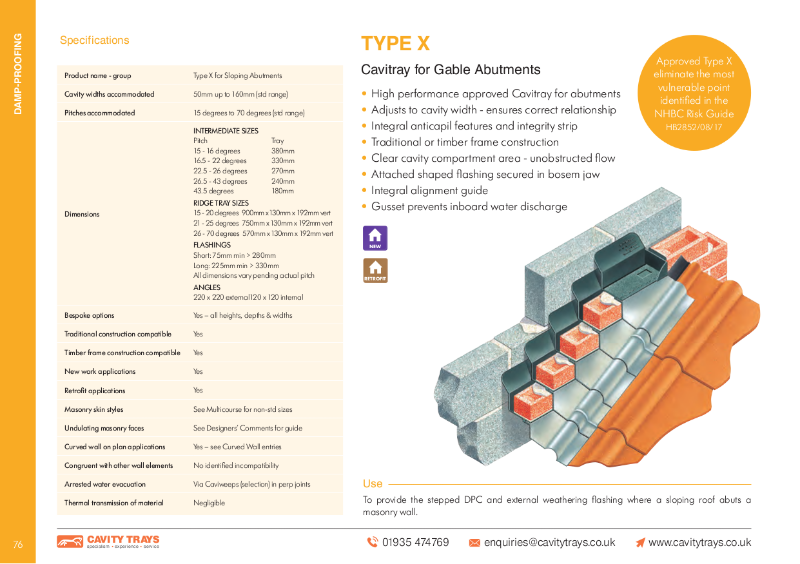

Type X gable abutment stepped cavity tray with attached flashing

Type X gable abutment stepped cavity tray with attached flashing

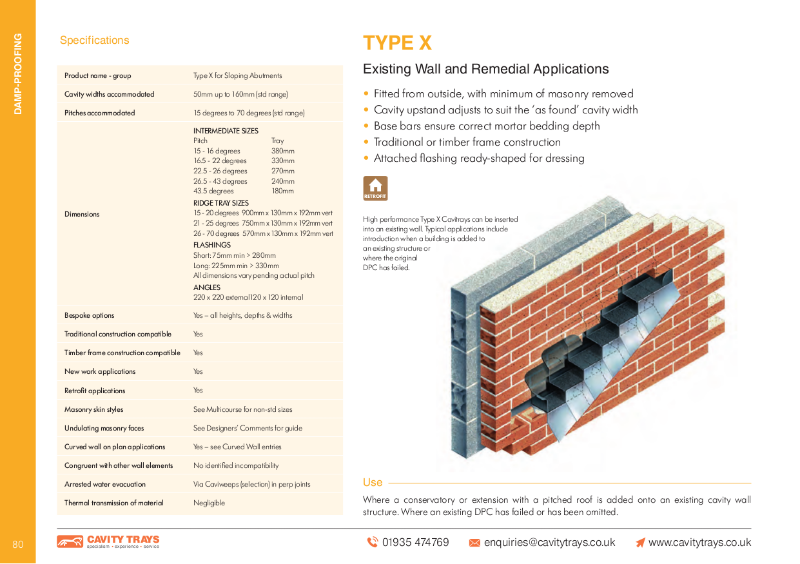

Type X remedial stepped cavity tray sloping pitch roof gable abutment existing wall

Type X remedial stepped cavity tray sloping pitch roof gable abutment existing wall

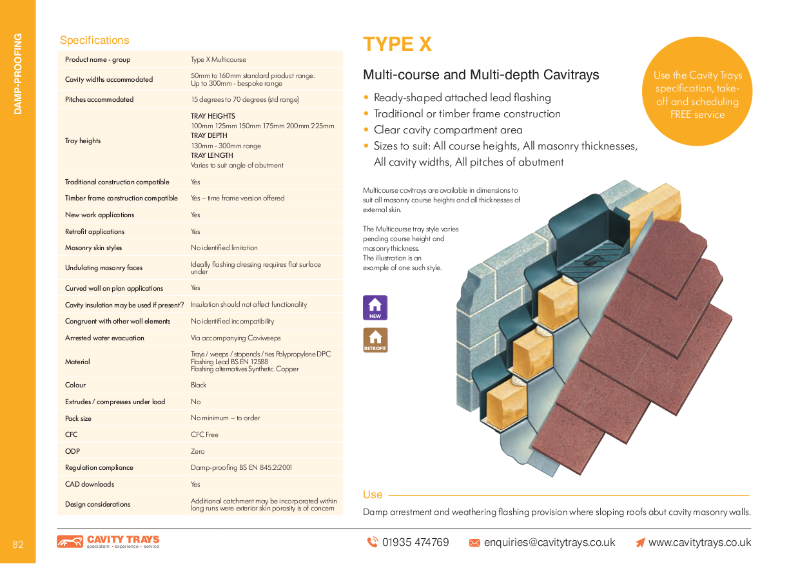

Type X Multicourse cavity tray blockwork

Type X Multicourse cavity tray blockwork
