V1 | Award Shower Cubicle

Name: V1 | Award Shower Cubicle
Brand: Venesta Washroom Systems Ltd
SKU: 64bbcKaHN5qK5FTySkN5C5

Verified by manufacturer 14 days ago

Award SGL Shower Door

Venesta Washroom Systems Ltd

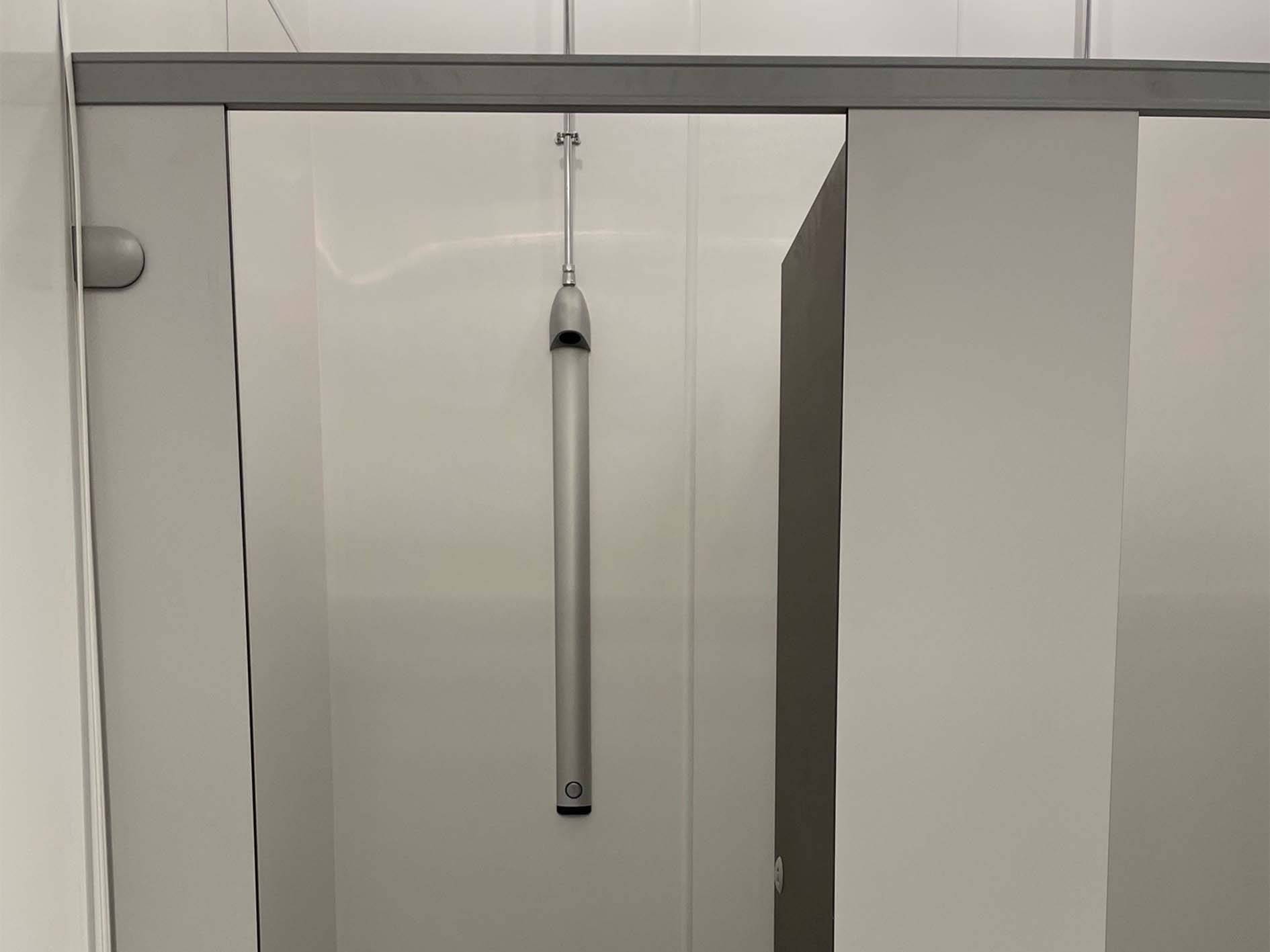

SGL cubicle which can be specified as a shower cubicle with door or shower track option.

Jump to:

+44 (0)1474 353333 Website

Application

Suitable for wet environments when specified in SGL.

Description

Economical but robust bespoke cubicles that are suitable for all kinds of washrooms including wet environments. A popular choice for schools due to the three different height options and can also be finished in 34 vibrant laminate colours.

Manufactured using SGL (solid grade laminate) making the Award cubicles extremely resistant to impact and all surfaces impervious to water.

General information

Color	Black Blue Cream Green Grey Orange Pink Purple Red Turquoise White Yellow Show more
Finish	Laminated
Material	Solid grade laminate (SGL)
Length	1921 mm
Width	850 mm
Height	2100 mm 2000 mm 1300 mm 1100 mm
Warranty description	Ten year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Product range	Cubicles / V1 Toilet Cubicles

Specification data - Panel cubicle systems

Panels	13 mm solid grade laminate (SGL) boards.
Panel supports	ABS pedestals, light grey. Powder-coated zinc pedestals, satin anodized effect.
Pilasters	13 mm solid grade laminate (SGL) boards.
Doors	13 mm solid grade laminate (SGL) boards.
Hardware	Hinges: Satin anodized aluminium anti-finger trap safety hinge.
System accessories	Not required. Venesta Toilet Roll Holder. Venesta Coat Hook. Document M 2004 Compliant grab rails and door pulls.

Headrail	Rigid satin anodized aluminium headrail with matching end cap.
Fixings	Continuous satin anodized aluminium u-channel. Guidance for specification option: Partition to wall fixing, pilaster to partition fixing, pilaster to wall fixing.
Cubicle height (overall)	2100 mm from FFL to top of headrail.
Cubicle depth	1920 mm.
Door	Standard. Guidance for specification option: 2000–2100 mm from FFL to top of door including 100 mm ground clearance. Size C1. Guidance for specification option: 1300–1400 mm from FFL to top of door including 100 mm ground clearance. Size C2. Guidance for specification option: 1100–1200 mm from FFL to top of door including 100 mm ground clearance.
Clearance	Floor: 100 mm; Ceiling: 60 mm (minimum).
Colour/ Finish	Rouge (VEN324 \| LRV 17). Papaya (VEN370 \| LRV 35). Golden (VEN366 \| LRV 52). Canary (VEN365 \| LRV 65). Lime (VEN354 \| LRV 54). Clover (VEN378 \| LRV 20). Olive (VEN367 \| LRV 38). Duck Egg (VEN368 \| LRV 54). Marine Green (VEN360 \| LRV 46). Hydrangea (VEN361 \| LRV 55). Cornflower Blue (VEN359 \| LRV 22). Pacific (VEN353 \| LRV 20). Peacock (VEN371 \| LRV 25). Teal (VEN377 \| LRV 11). Indigo (VEN356 \| LRV 8). Merlot (VEN364 \| LRV 8). Macaroon (VEN348 \| LRV 24). Peony (VEN376 \| LRV 52). Porcelain (VEN352 \| LRV 81). Suede (VEN369 \| LRV 66). Cloud (VEN351 \| LRV 58). Shadow (VEN350 \| LRV 37). Gunmetal (VEN349 \| LRV 10). Noir (VEN337 \| LRV 5). Steel (VEN319 \| LRV 42). Light Parchment (VEN363 \| LRV 57). Grey Parchment (VEN362 \| LRV 31). Vintage Grey (VEN372 \| LRV 27). Weathered Grey (VEN358 \| LRV 21). Black Ash (VEN374 \| LRV 9). African Wenge (VEN373 \| LRV 11). Dark Walnut (VEN355 \| LRV 13). Golden Oak (VEN357 \| LRV 36). Soft Oak (VEN375 \| LRV 45). Show more
Edge treatment	Polished black radiused edge.
