V1 | Unity - Toilet Cubicle

Verified by manufacturer 14 days ago

HPL

Venesta Washroom Systems Ltd Variant:

Unframed panel cubicle systems available in multiple material options.

Jump to:
+44 (0)1474 353333 Website

Application

Suitable for any kind of washroom requirement.

Description

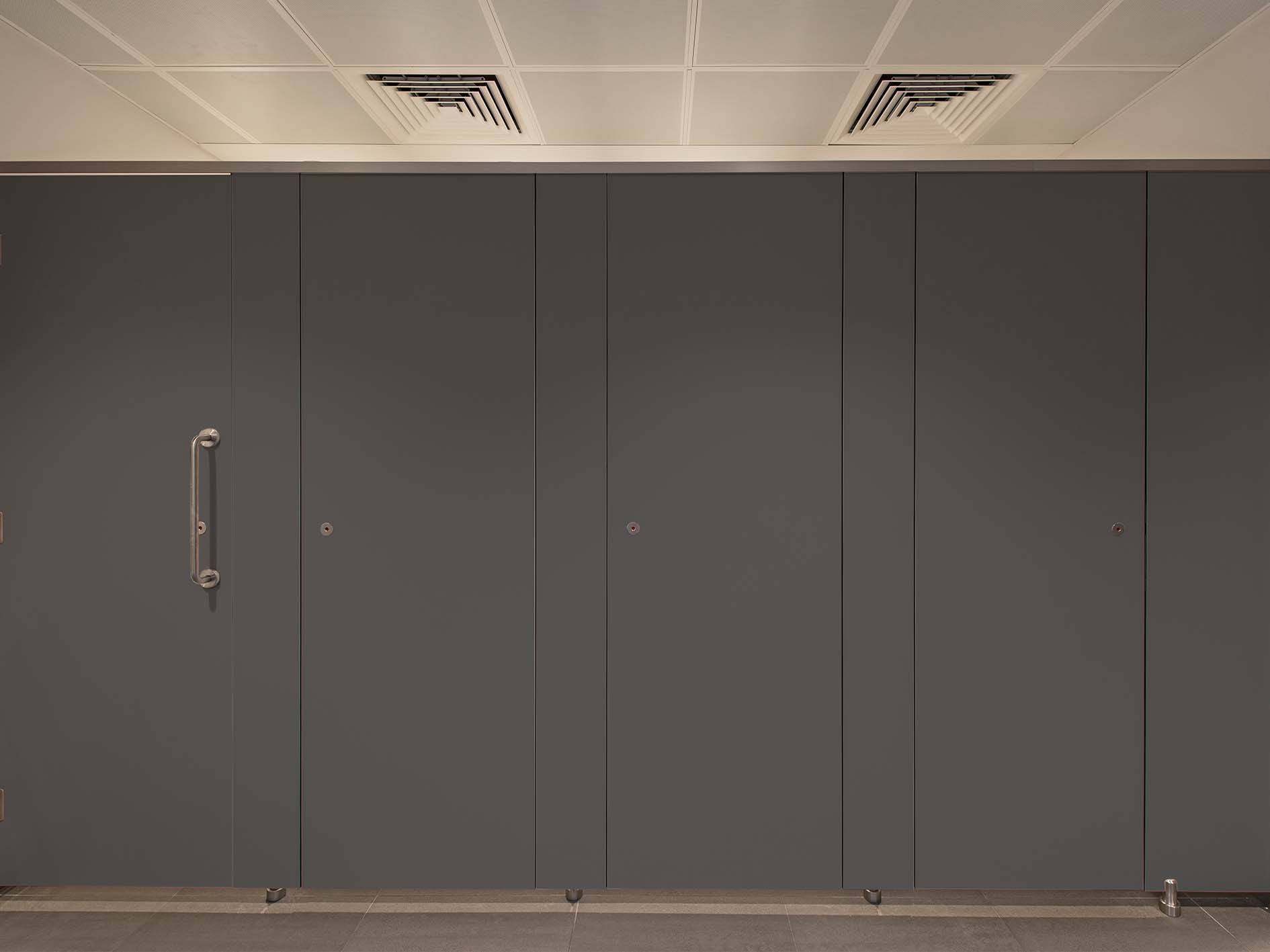

Unity's floating, flush front always makes a big impact. Great value without compromising on quality or functionality, there's multiple material options to choose from, with 34 laminate colours or ten ColourCoat or High Gloss finishes. The design possibilities are endless.


The simple and striking design, which can also be specified in full height, is finished with satin anodized aluminium fittings and always makes an impact.


HPL:

For more heavily used washrooms, panels are heat, scratch, impact and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters are 35 mm nominal thickness with an MDF core, partitions are 18 mm nominal thickness.


SGL:

Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges.


ColourCoat:

Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer. Doors and pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness.


High Gloss:

Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer. Doors and pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness.


Features and benefits:

  • V1 - Low cost cubicle range.
  • Suitable for every type of washroom environment.
  • Full height options available, with reduced floor clearance for increased privacy.
  • Satin anodized aluminium fittings.
  • Slimline aluminium profile headrail in satin anodized finish.
  • Flush fronted, floating finish in a wider choice of colours and laminates.

General information

Color

Black

Blue

Brown

Cream

Green

Show more

Finish

Gloss

Laminated

Material

High pressure laminate (HPL)

Guidance for specification option:

For more heavily used washrooms, panels are heat, scratch, impact

and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters

are 35 mm nominal thickness with an MDF core, partitions are 18 mm

nominal thickness.

Solid grade laminate (SGL)

Guidance for specification option:

Solid grade laminate is extremely resistant to impact and all surfaces

are impervious to water. Panels are 13 mm nominal thickness with

polished black radiused edges.

Medium density fibreboard (MDF)

Guidance for specification option:

Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer. Doors and

pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness.

Length

1921 mm

2084 mm

Width

850 mm

Height

2070 mm

2065 mm

Warranty description

Ten year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles / V1 Toilet Cubicles

Specification data - Panel cubicle systems

Panels

18 mm moisture resistant medium density fibreboard (MR MDF) faced with high pressure laminate (HPL).

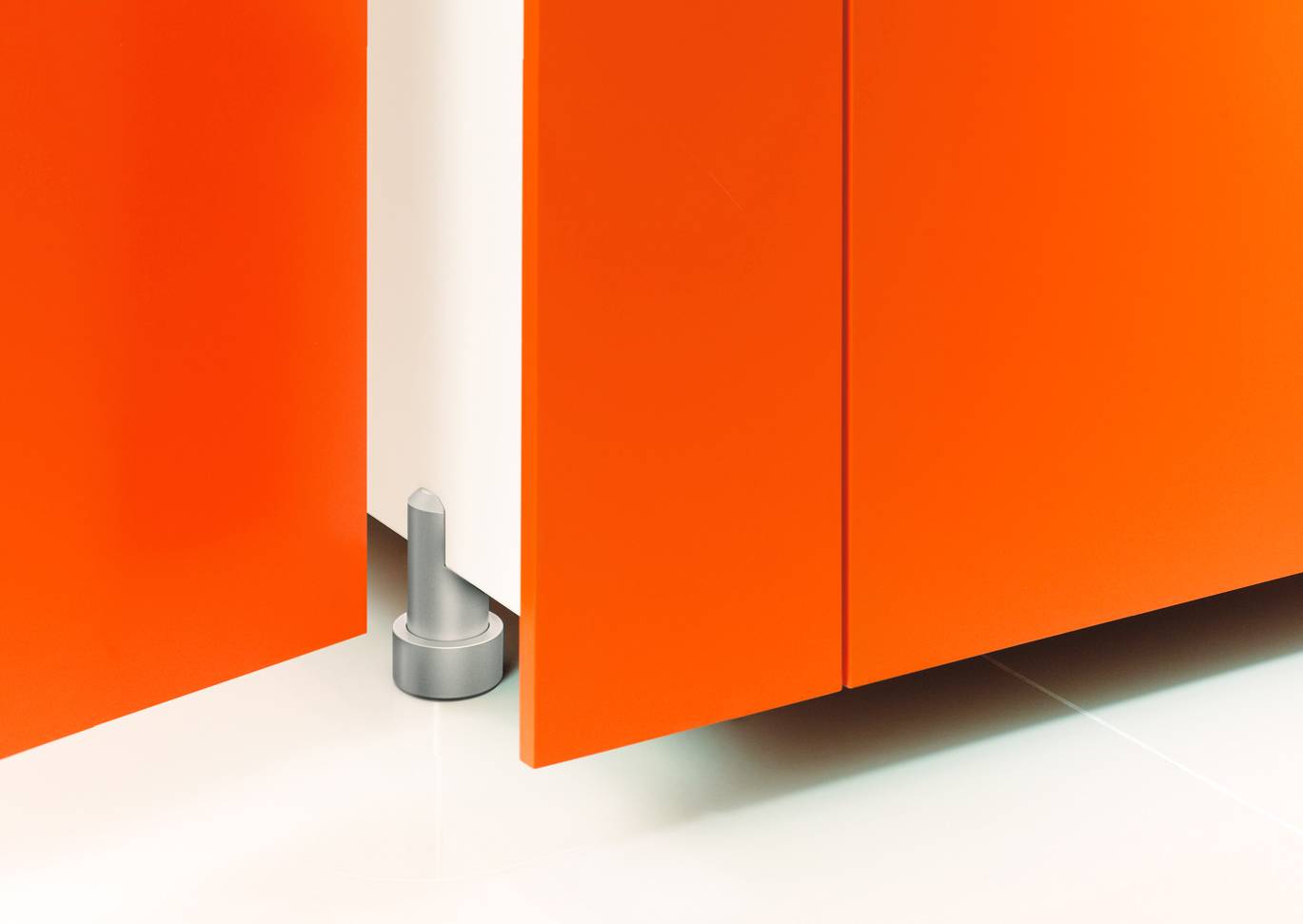

Panel supports

Adjustable pedestals.

Guidance for specification option:

 Adjustable by ± 5 mm. Finished in chosen hardware finish.

Pilasters

35 mm moisture resistant medium density fibreboard (MR MDF) faced with high pressure laminate (HPL).

Doors

35 mm moisture resistant medium density fibreboard (MR MDF) faced with high pressure laminate (HPL).

Lippings

1 mm nominal matching ABS.

Hardware

Lock and keep (Slimline lever operated mortice lock incorporating face plate and wrap round keep); indicator bolt (flip style indicator bolt with circular face plate and emergency release facility); aluminium fixing U-channels; aluminium fixing E-channels.

Guidance for specification option:

Finished in chosen hardware finish.

System accessories

Not required.

Venesta Toilet Roll Holder.

Venesta Coat Hook.

Document M 2004 Compliant grab rails and door pulls.

Headrail

Slimline aluminium profile.

Guidance for specification option:

Three part fixing system which allows cubicles to finish 20 mm below ceiling height. Finished in chosen hardware finish.

Fixings

Partition to wall fixing and pilaster to partition fixing: Satin anodized aluminium u-channel; Pilaster to wall fixing: Satin anodized aluminium e-channel.

Cubicle height (overall)

2070 mm from FFL to top of headrail.

Cubicle depth

2084 mm.

Clearance

Floor, 50 mm; Ceiling, 20 mm (minimum).

Colour/ Finish

Rouge (VEN324 | LRV 17).

Papaya (VEN370 | LRV 35).

Golden (VEN366 | LRV 52).

Canary (VEN365 | LRV 65).

Lime (VEN354 | LRV 54).

Show more

Hinges

Modular rise and fall butt hinge.

Guidance for specification option:

Can be set to fall open or closed. Finished in chosen hardware finish.

Hardware

Satin anodized aluminium.

Black effect powder-coated aluminium.

Brass effect powder-coated aluminium.

Bronze effect powder-coated aluminium.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

High pressure laminate (HPL)

Guidance for specification option:

For more heavily used washrooms, panels are heat, scratch, impact

and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters

are 35 mm nominal thickness with an MDF core, partitions are 18 mm

nominal thickness.

Solid grade laminate (SGL)

Guidance for specification option:

Solid grade laminate is extremely resistant to impact and all surfaces

are impervious to water. Panels are 13 mm nominal thickness with

polished black radiused edges.

Medium density fibreboard (MDF)

Guidance for specification option:

Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer. Doors and

pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness.
