V1 | Unity Full Height - Toilet Cubicle

Name: V1 | Unity Full Height - Toilet Cubicle
Brand: Venesta Washroom Systems Ltd
SKU: 7GeKV2fuMpFSSyhzSmoKL6

Verified by manufacturer 2 months ago

HPL

Venesta Washroom Systems Ltd

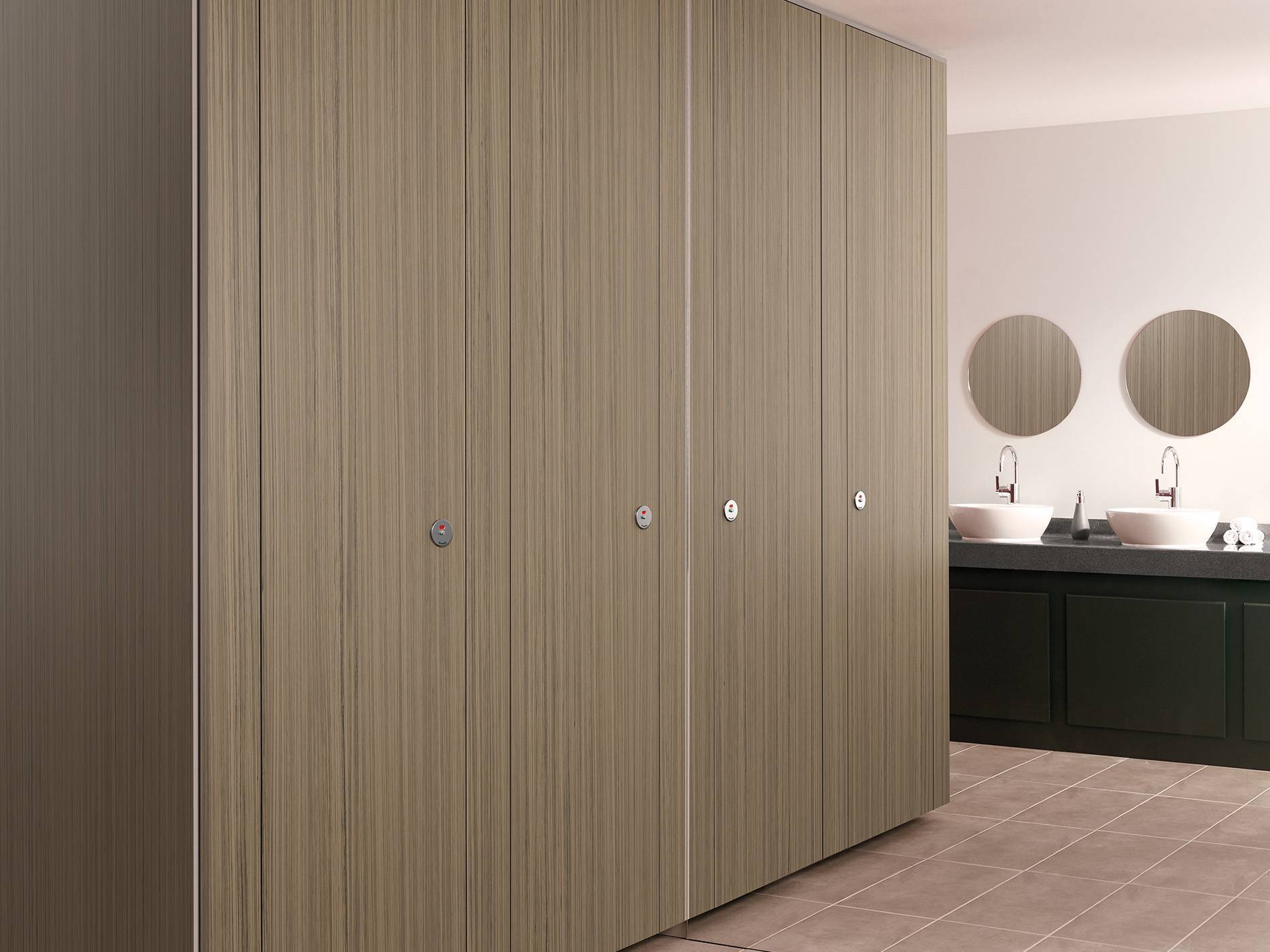

Full height, flush fronted universal toilet cubicle.

Jump to:

+44 (0)1474 353333 Website

Application

Suitable for any kind of washroom requirement.

Description

Economical, flush-faced, full-height cubicle system.

Functional, high-quality, toilet cubicles with the added benefit of reduced floor clearance for increased privacy. A simple and contemporary design, Unity Full-height cubicles are available in four materials with 34 laminate colours and 10 ColourCoat or High Gloss finishes to choose from.

HPL:

Particularly suitable for heavy use areas, Unity HPL is heat, scratch, impact and moisture resistant.

SGL:

Manufactured using solid grade laminate for heat, scratch and moisture resistance. Impact resistant so particularly suitable for areas of regular, heavy use such as schools and public areas.

ColourCoat:

Doors and panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.

ColourCoat High Gloss:

High Gloss panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.

General information

Color	Black Blue Cream Green Grey Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Laminated
Material	High pressure laminate (HPL) Guidance for specification option: For more heavily used washrooms, panels are heat, scratch, impact and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters are 35 mm nominal thickness with an MDF core, partitions are 18 mm nominal thickness. Solid grade laminate (SGL) Guidance for specification option: Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges. Medium density fibreboard (MDF) Guidance for specification option: Unity Full Height ColourCoat: Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer. Doors and pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness. Unity Full Height High Gloss: Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer. Doors and pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness.
Length	2084 mm 1921 mm
Width	850 mm
Height	2840 mm 2822 mm
Warranty description	Ten year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Product range	Cubicles / V1 Toilet Cubicles

Specification data - Panel cubicle systems

Panels	18 mm moisture resistant chipboard faced with high pressure laminate (HPL).
Panel supports	Adjustable pedestals. Guidance for specification option: Pedestal adjustment, ± 5 mm. Manufacturer guidance Pedestal adjustment: ± 5 mm.
Pilasters	35 mm moisture resistant medium density fibreboard (MR MDF) faced with high pressure laminate (HPL).
Doors	35 mm moisture resistant medium density fibreboard (MR MDF) faced with high pressure laminate (HPL).
Lippings	1 mm nominal matching ABS.
Hardware	Lock and keep (Slimline lever operated mortice lock incorporating face plate, wrap around keep); indicator bolt (flip style indicator bolt with circular face plate and emergency release facility); modular rise and fall butt hinge (can be set to fall open or closed). Guidance for specification option: Finished to selected hardware finish.
System accessories	Not required. Venesta toilet roll holder. Venesta coat hook. Document M 2004 Compliant grab rails and door pulls.

Headrail	Slimline aluminium profile. Guidance for specification option: Three part fixing system allows cubicles to finish 20 mm below ceiling height. Finished to chosen hardware finish.
Fixings	Partition to wall fixing: Aluminium u-channel. Pilaster to partition fixing: Aluminium u-channel. Pilaster to wall fixing: Aluminium e-channel.
Cubicle height (overall)	2840 mm from FFL to top of headrail.
Cubicle depth	2084 mm.
Clearance	Floor, 50 mm; Ceiling, 20 mm (minimum).
Colour/ Finish	Rouge (VEN324 \| LRV 17). Papaya (VEN370 \| LRV 35). Golden (VEN366 \| LRV 52). Canary (VEN365 \| LRV 65). Lime (VEN354 \| LRV 54). Clover (VEN378 \| LRV 20). Olive (VEN367 \| LRV 38). Duck Egg (VEN368 \| LRV 54). Marine Green (VEN360 \| LRV 46). Hydrangea (VEN361 \| LRV 55). Cornflower Blue (VEN359 \| LRV 22). Pacific (VEN353 \| LRV 20). Peacock (VEN371 \| LRV 25). Teal (VEN377 \| LRV 11). Indigo (VEN356 \| LRV 8). Merlot (VEN364 \| LRV 8). Macaroon (VEN348 \| LRV 24). Peony (VEN376 \| LRV 52). Porcelain (VEN352 \| LRV 81). Suede (VEN369 \| LRV 66). Cloud (VEN351 \| LRV 58). Shadow (VEN350 \| LRV 37). Gunmetal (VEN349 \| LRV 10). Noir (VEN337 \| LRV 5). Steel (VEN319 \| LRV 42). Light Parchment (VEN363 \| LRV 57). Grey Parchment (VEN362 \| LRV 31). Vintage Grey (VEN372 \| LRV 27). Weathered Grey (VEN358 \| LRV 21). Black Ash (VEN374 \| LRV 9). African Wenge (VEN373 \| LRV 11). Dark Walnut (VEN355 \| LRV 13). Golden Oak (VEN357 \| LRV 36). Soft Oak (VEN375 \| LRV 45). Show more
Hardware	Satin anodized aluminium. Black effect powder-coated aluminium. Brass effect powder-coated aluminium. Bronze effect powder-coated aluminium. Manufacturer guidance Hardware finish and colour.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	High pressure laminate (HPL) Guidance for specification option: For more heavily used washrooms, panels are heat, scratch, impact and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters are 35 mm nominal thickness with an MDF core, partitions are 18 mm nominal thickness. Solid grade laminate (SGL) Guidance for specification option: Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13 mm nominal thickness with polished black radiused edges. Medium density fibreboard (MDF) Guidance for specification option: Unity Full Height ColourCoat: Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer. Doors and pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness. Unity Full Height High Gloss: Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer. Doors and pilasters are 35 mm nominal thickness, partitions are 18 mm nominal thickness.
