VARA FLUID SPRAY - Liquid Airtight Membrane - Vapour Control Layer

Verified by manufacturer 21 hours ago

PARTEL Third party certifications:
  • Passivhaus

    Passivhaus

    Certificate type

  • DoP

    DoP

    Certificate type

A spray applied air and vapour control layer (AVCL). Smart membrane. Passive House Certified Airtight System.

Jump to:
+44 20 3740 1918 Website

Application

VARA FLUID is an air and vapour control layer designed for use internally and externally on the warm side of insulation on wall, ceiling, roof and floor applications. It is easily applied with either an airless paint spray device or roller, and dries to an airtight flexible coating.


Suitable for:

  • Application on various surfaces – masonry concrete, silicate, OSB, plywood etc.
  • Wall, ceiling, roof and floor applications
  • Externally vapour open and vapour closed structures
  • Wall to floor connections
  • Wall to ceiling connections
  • Wall to timber connections
  • General construction joints
  • Residential and commercial buildings

Description

VARA FLUID Spray is a is a humidity variable airtight vapour control layer (AVCL) designed to ensure seamless airtightness in both new build and retrofit projects.


Features and benefits:

  • Innovative liquid airtight membrane that changes vapour permeability according to the ambient relative humidity (RH). This contributes to maximum protection in the building envelope where moisture levels are critical, allowing vapour to escape and dry the structure.
  • Ensures optimum moisture flow through building structures with a Sd range of 0.15m to 16m.
  • Hygrovariable Technology - Extremely safe airtight system.
  • phA Class Passive House Certified airtight system, featuring an air permeance value of 0.00 m³/(m²h)
  • Flexible and durable.
  • LOW VOC polymer-based liquid.
  • Class W1 resistance to water penetration.
  • Excellent adhesion on various surfaces .
  • Fast application – speeds up construction.
  • Ready-to-use product – vertical or horizontal application.

General information

Color

Beige

Material

Polymer

Shape

Formless

Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary
Pr_25_57_10_94 Vapour-permeable sheets

CAWS

P10/60 Air and vapour control layer

P10/310 Air and vapour control layer

Product range

Vapour Control Layers

Specification data - Plastics sheets

Material

Polymer-based liquid.

Purpose

Airtight vapour control layer.

Performance characteristics

-

Resistant to underground gases

Radon.

Guidance for specification option:

Radon diffusion coefficient to K124/02/95, 6.5.10-12 D(m2/s).

Water vapour resistance (minimum)

g value: 80 MNs/g; g value, humidity variable: 0.75–80 MNs/g.

UV stabilization

3 months.

Third-party certification

GEV-EMICODE certifed, phA certified component.

Form

Liquid.

Physical properties

-

Colour

Beige.

Weight (minimum)

11.5 kg.

Dimensions

-

Thickness (minimum)

0.3–1.0 mm.

Manufacturer guidance

Coating thickness.

Air permeability

To EN 12114, 0.00 m³/(m²h).

Guidance for specification option:

phA certified.

Water resistance

To EN 1928, W1.

Sd value

To EN 1931, 16 @ 0.3 mm. SD vapour variability range to EN ISO 12572, 0.15–16 @ 0.3 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Polymer

Expected Life

Lifetime

Third party certifications

Passivhaus

Passivhaus

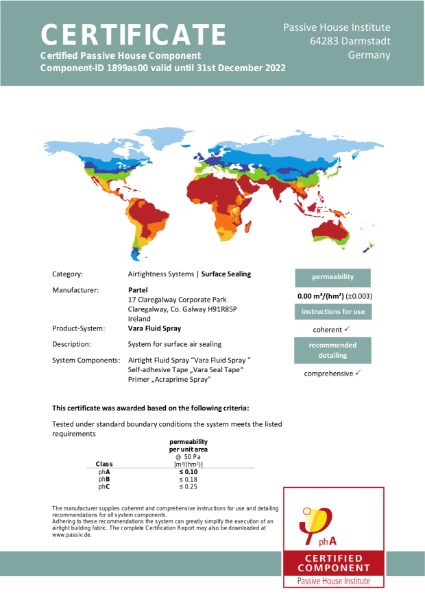

VARA FLUID SPRAY - Certified Passive House Component

DoP

DoP

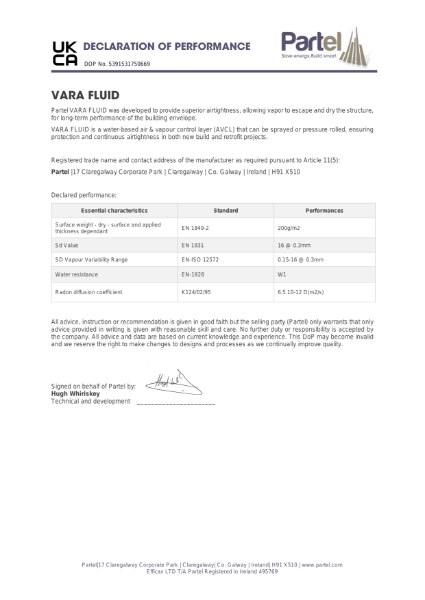

VARA FLUID DoP

Literature

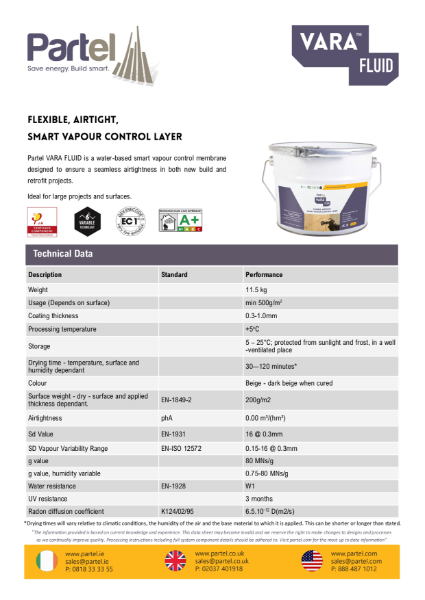

VARA FLUID SPRAY Technical Data Sheet

VARA FLUID SPRAY Technical Data Sheet

VARA FLUID Product Brochure

VARA FLUID Product Brochure
