VEGA 1500 Series Riser Doors - Non Fire Rated

Verified by manufacturer 3 months ago

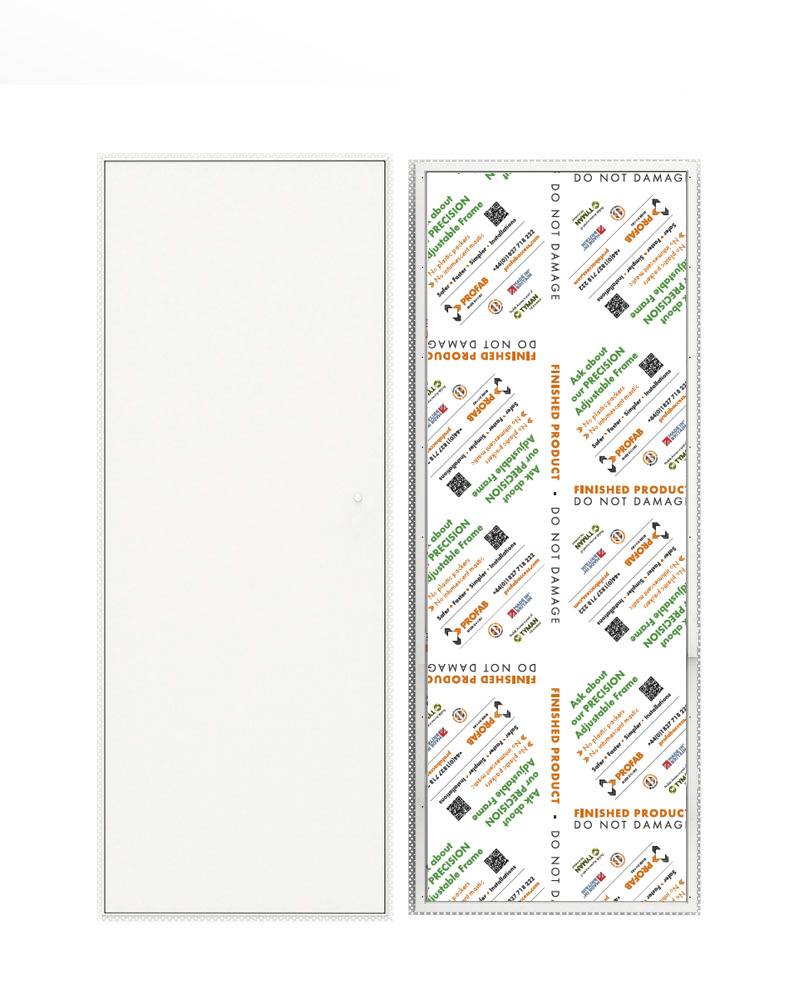

VEGA 1500 Series Riser Doors NFR - Single door

Access 360 Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

A non-fire-rated riser door, manufactured and tested to meet standards suitable for a wide range of non-fire rated market applications.

Jump to:
+44 (0)1827 718222 Website

Application

Suitable for use within student halls of residence, care homes and hotels.

Description

Quick release, light weight, engineered riser doors supplied with adjustable frames that require no packers for simple, faster and safer installations.

Single or double, quick release, light weight door configurations, including lock and frame options to suit finishing requirements, can be supplied.


Features and benefits:

  • Fast and simple to install.
  • Quick release pivot hinge with retractable flush bolt.
  • Hinge pin for easy positioning and door alignment.
  • Light weight door for easy handling.
  • Single door and double door configurations.
  • Fully recyclable at end of life.

General information

Color

White

Guidance for specification option:

RAL 9010.

Other

Guidance for specification option:

Any RAL colour available on request.

Finish

Matt

Powder-coated

Material

Carbon steel

Guidance for specification option:

Electro-galvanized.

Shape

Rectangle

Width

938 mm

Guidance for specification option:

Maximum door leaf width, suitable for 2493 mm height.

1035 mm

Guidance for specification option:

Maximum door leaf width, suitable for 2750 mm height.

Manufacturer guidance

Unequal width double leaf dooresets are also allowable, provided that the secondary leaf shall have a minimum width of 350 mm, and shall be a minimum of 40% the width of the primary leaf.

Height

2750 mm

Guidance for specification option:

Maximum door leaf height, suitable for 938 mm width.

2493 mm

Guidance for specification option:

Maximum door leaf height, suitable for 1035 mm width.

Manufacturer guidance

Unequal width double leaf dooresets are also allowable, provided that the secondary leaf shall have a minimum width of 350 mm, and shall be a minimum of 40% the width of the primary leaf.

Warranty description

Five year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

K10/125 Metal stud partition system

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/155 Wall lining system (metal studs)

K10/430 Access panels

L20/630 Hatches

K10/15 Lining on timber

K10/30 Metal stud

K10/115 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/25 Ceiling lining on timber

K10/50 Suspended ceiling system on metal framing

Specification data - Carbon steel doorsets

Configuration

Single door (SD).

Doorset size

2750 x 938 mm.

Guidance for specification option:

Maximum door leaf height x suitable width.

2493 x 1035 mm.

Guidance for specification option:

Maximum door leaf height x suitable width.

Performance

-

Fire resistance

-

Integrity

Non-fire rated (NFR).

Acoustic performance

31 dB (Rw).

Frame

-

Material

Electro-galvanized mild steel.

Perimeter seals or inserts

Acoustic, intumescent and smoke seal.

Finish

-

Coating

Powder-coated.

Guidance for specification option:

Fully powder coated matt RAL 9010.

Texture

Matt.

Colour

White (RAL 9010).

Guidance for specification option:

Fully powder coated matt RAL 9010.

RAL.

Guidance for specification option:

Suitable for finishing on site or other RAL colours available on request.

Door leaf

-

Thickness

1.2 mm.

Material

Electro-galvanized mild steel door leaf, Rockwool core.

Beading

-

Type

Beaded frame (BF).

Guidance for specification option:

Suitable for tape and jointing/ skimming.

Picture frame (PF).

Guidance for specification option:

Suitable for retrofitting/ finished areas.

Material

Steel.

Fixing

Fully welded.

Finish

-

Coating

Powder-coated.

Texture

Matt.

External colour

White (RAL 9010).

Guidance for specification option:

Fully powder coated matt RAL 9010.

RAL.

Guidance for specification option:

Suitable for finishing on site or other RAL colours available on request.

Door accessories

Acoustic, intumescent and smoke seal to frame.

Collar

Stainless steel.

White plastic.

Guidance for specification option:

Standard.

Manufacturer guidance

Lock.

Weight

17.5 kg/m².

Guidance for specification option:

Including frame.

FrameDepth

66 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Guidance for specification option:

Britain.

Recyclability

98%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Manufacturer guidance

20–25%

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management Systems
