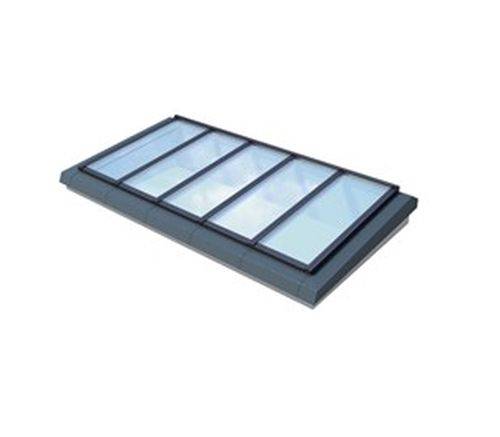

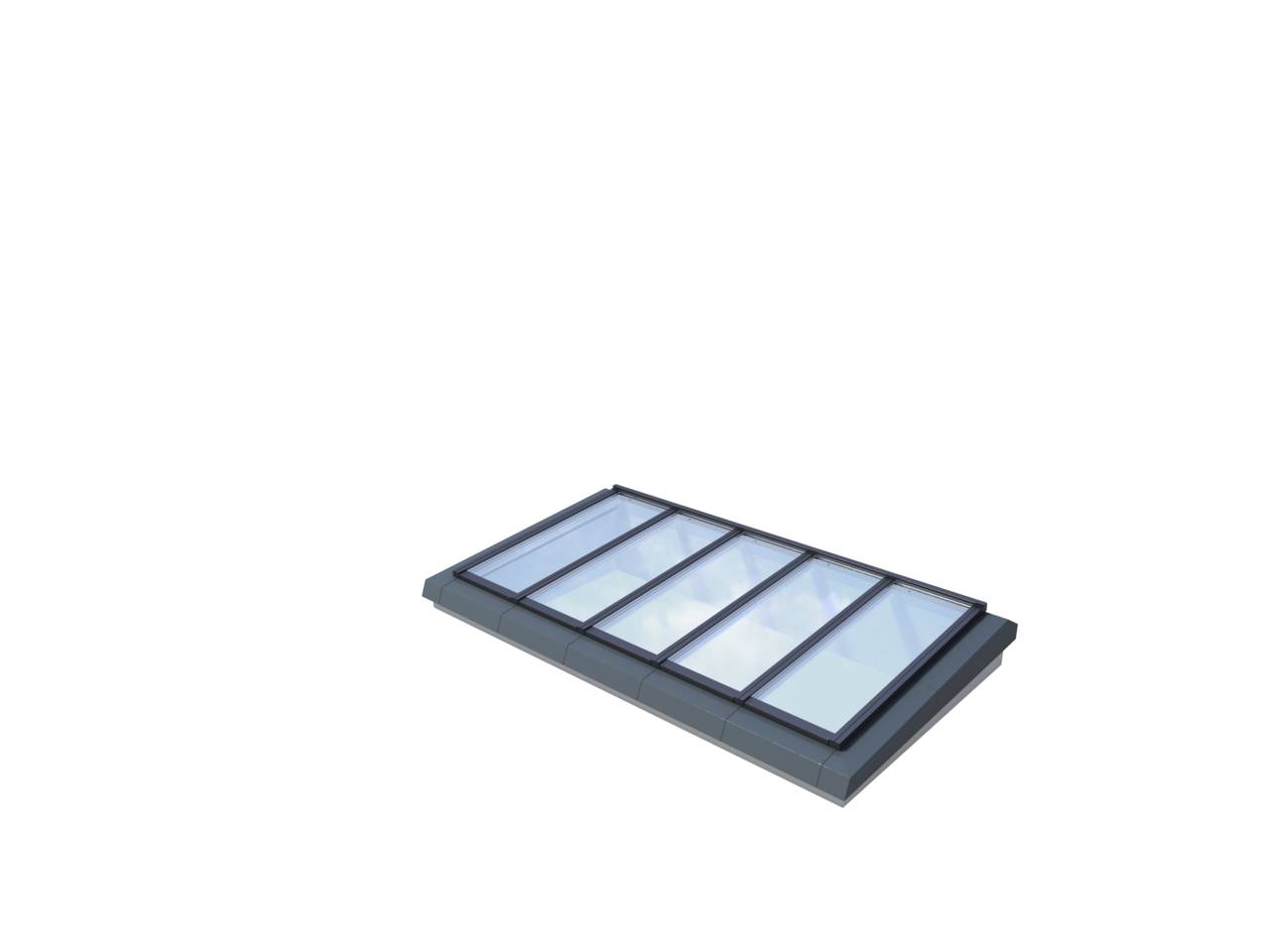

VMS Longlight 5-25° - Rooflight
Verified by manufacturer 1 month ago
Modular rooflight.
Application
A roof light system for commercial and public buildings. Ideal for flat and sloped roofs. Ideal for spaces that require soft light for optimum indoor conditions, e.g. at schools, offices, museums and galleries.
Description
The system consists of prefabricated modular skylights, including profiles, panes, flashings, control systems for natural and smoke ventilation and roller blinds.
Perfect for larger rooms and corridors, longlights are bands of modular skylights pre-fitted with installation brackets and clamps that guarantee a fast and secure installation.
The design of the flashing allows for configurations with pitches between 5° and 25°.
Features and benefits:
- Framing material ensures very low U-value.
- Complete daylight and ventilation control.
- Superior environmental profile compared to aluminium rooflights.
- Slim profiles and flush exterior surface provide an elegant appearance.
- Integrated chain actuator creates an identical look for fixed and venting modules.
- Internal blinds complete the interior with a 'free-floating' design.
General information
Color | Grey White Black |
Finish | Powder-coated Lacquered |
Material | Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane). |
Shape | Rectangle |
Width | 675 mm 750 mm 800 mm 900 mm 1000 mm |
Height | 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm |
Warranty description | Ten year Guidance for specification option: On modules and flashings. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Longlight modular skylight. |
Size | Available in modules from 675 x 1200 mm to 1000 x 2400 mm. |
Product performance | |
Fire performance | |
Fire resistance | To EN 1365-2 / EN 13501-2 + A1. |
Reaction to fire | To EN ISO 11925-2 / EN 13823, Class B. |
Whole window U-value | 1.1 W/m²K / 1.4 W/m²K.Guidance for specification option: Double glazed 0.7 W/m²K / 1.0 W/m²K.Guidance for specification option: Triple glazed |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Scratch-resistant powder lacquer. |
Colour | White.Guidance for specification option: Inside surface / Granite grey – cladding. |
Film thickness (minimum) | 40 μm. |
Glazing or infill | |
Type | Mono-pitched toughened outer glass and laminated inner safety glass solution. |
Construction | Double glazed.Triple glazed. |
Colour | Not required.Grey (4083).White (4084).Black (4085).White, fire resistant (4094). |
Coating | Not required.Low E coating.Sun 1.Guidance for specification option: Light sun protection Sun 2.Guidance for specification option: Advanced sun protection. |
Integral kerb | Timber with metal plate.Guidance for specification option: not suitable for Ridgelight or Atrium Ridgelight Structural steel.Concrete with metal plate. |
Operation | |
Type | HFC, Fixed.HVC, Smoke ventilation.HVC, Natural ventilation. |
Control | Not required.Chain actuator. |
Accessories | Not required.Control Unit (KLC 400).Control Pad (KLR 200).Rain and wind sensor set (KLA S105).Control Switch (KLI 110). |
Execution | Installation of framed rooflights. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Denmark |
Material | Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane). |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012 |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
 ARCHICAD | - | 1 |
Literature
VELUX Modular Skylights

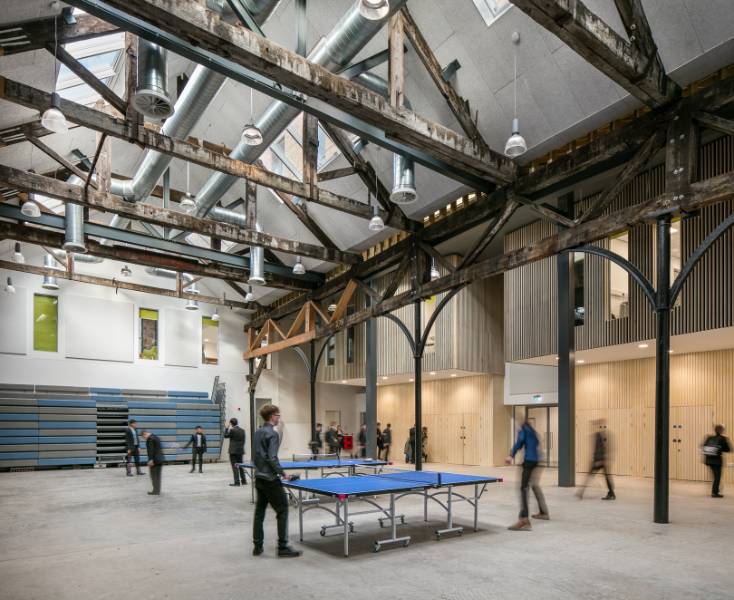

Case studies
