VMS Ridgelight 25-40° - Rooflight

Name: VMS Ridgelight 25-40° - Rooflight
Brand: VELUX Commercial
SKU: sF3sVkJVjh2bke5zAcRPBm

Verified by manufacturer 2 months ago

VELUX Commercial

Modular rooflight.

Jump to:

BOS

+44 (0) 1592 778916 Website

Application

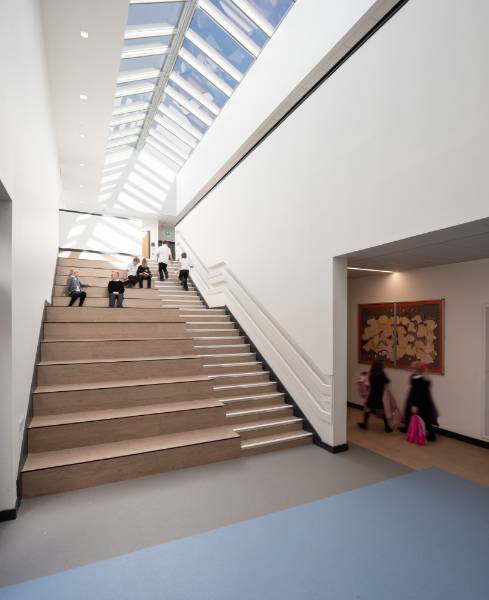

For commercial and public buildings. Suitable for a wide variety of circulation spaces, gallery spaces and small internal courts where people meet or pass in transit.

Description

A roof light system for commercial and public buildings.

The system consists of prefabricated modular skylights, including profiles, panes, flashing, control systems for comfort and smoke ventilation and roller blinds.

Features and benefits:

Framing material ensures very low U-value.
Complete daylight and ventilation control.
Superior environmental profile compared to aluminium rooflights.
Slim profiles and flush exterior surface provide an elegant appearance.
Integrated chain actuator creates an identical look for fixed and venting modules.
Internal blinds complete the interior with a 'free-floating' design.

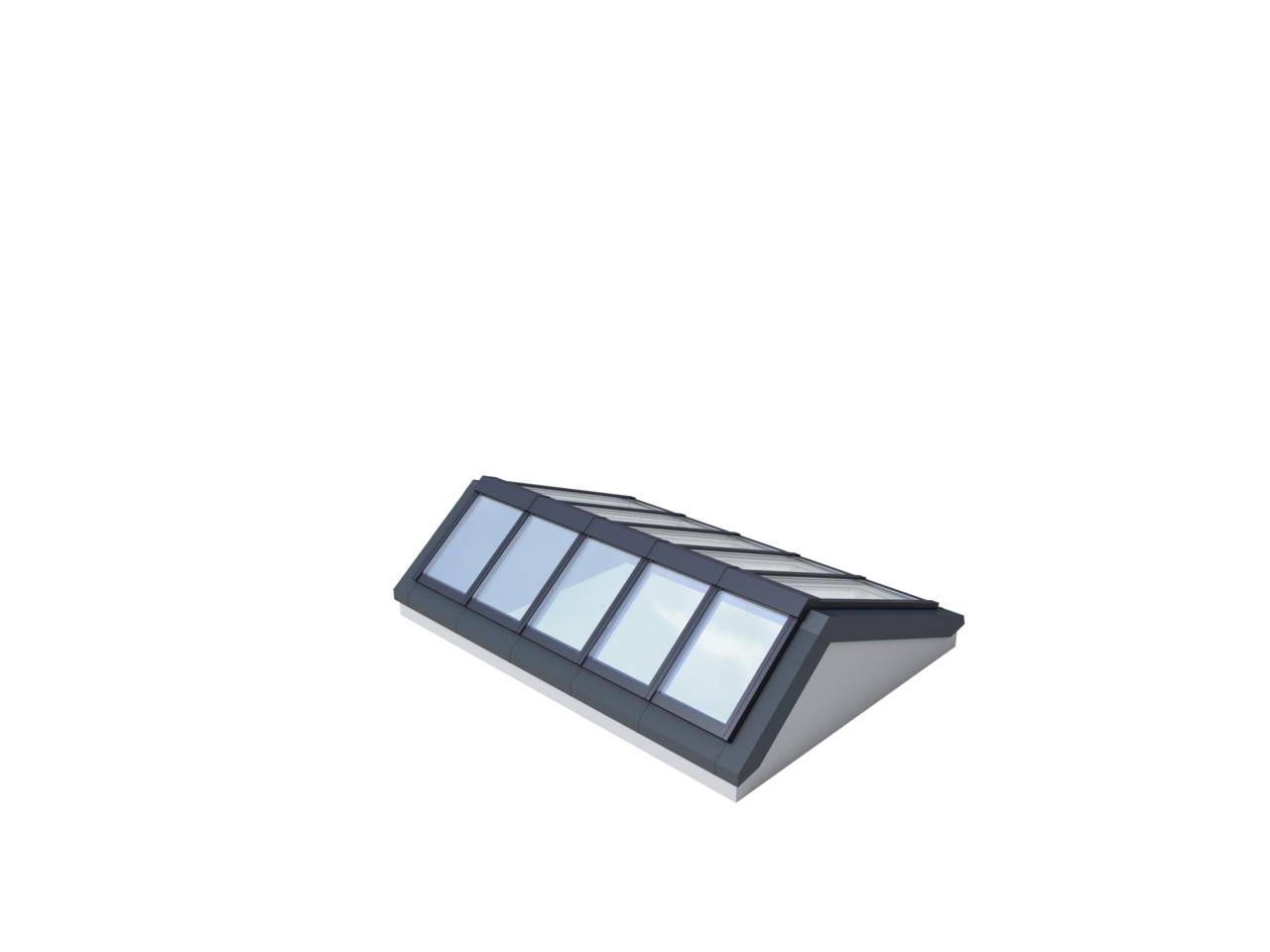

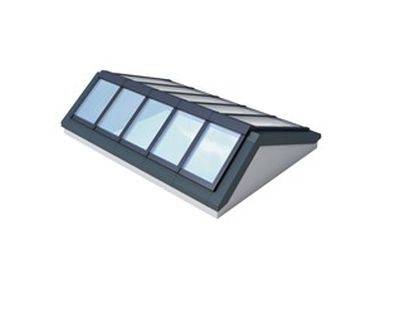

Ridge light is a classic looking solution, consisting of two rows of skylights that support each other in the ridge. The flashing allows for installations with a pitch of 25–40°.

General information

Color	Grey White Black
Finish	Powder-coated Lacquered
Material	Aluminium Composite Guidance for specification option: Pultruded Composite - (80% Fibreglass / 20% Polyurethane).
Shape	Rectangle
Width	675 mm 750 mm 800 mm 900 mm 1000 mm
Height	1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm 2400 mm 2600 mm 2800 mm 3000 mm Show more
Warranty description	Ten year Guidance for specification option: On modules and flashings.

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Form	Ridgelight modular skylight.
Size	675 x 1200 mm. Guidance for specification option: Minimum size. 1000 x 2400 mm. Guidance for specification option: Maximum size.
Product performance	-
Fire performance	-
Fire resistance	To EN 1365-2 / EN 13501-2 + A1.
Reaction to fire	To EN ISO 11925-2 / EN 13823, Class B.
Whole window U-value	1.1 W/m²K / 1.4 W/m²K. Guidance for specification option: Double glazed 0.7 W/m²K / 1.0 W/m²K. Guidance for specification option: Triple glazed
Frame	-
Finish	-
Coating	Scratch-resistant powder lacquer.
Colour	White. Guidance for specification option: Inside surface / Granite grey – cladding
Film thickness (minimum)	40 μm.
Glazing or infill	-
Type	Mono-pitched toughened outer glass and laminated inner safety glass solution.
Construction	Double glazed. Triple glazed.
Colour	Not required. Grey (4083). White (4084). Black (4085). White, fire resistant (4094).
Coating	Not required. Low E coating. Sun 1. Guidance for specification option: Light sun protection Sun 2. Guidance for specification option: Advanced sun protection
Integral kerb	Structural steel. Concrete with metal plate.
Operation	-
Type	HFC, Fixed. HVC, Smoke ventilation. HVC, Natural ventilation.
Control	Not required. Chain actuator.
Accessories	Not required. Control Unit (KLC 400). Control Pad (KLR 200). Rain and wind sensor set (KLA S105). Control Switch (KLI 110).
Execution	Installation of framed rooflights.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Denmark
Material	Aluminium Composite Guidance for specification option: Pultruded Composite - (80% Fibreglass / 20% Polyurethane).
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012
