VMS Step Longlight 5–25° - Rooflight

Name: VMS Step Longlight 5–25° - Rooflight
Brand: VELUX Commercial
SKU: MvXuKvwuQ9ahLTZDGJ29

Verified by manufacturer 26 days ago

VELUX Commercial

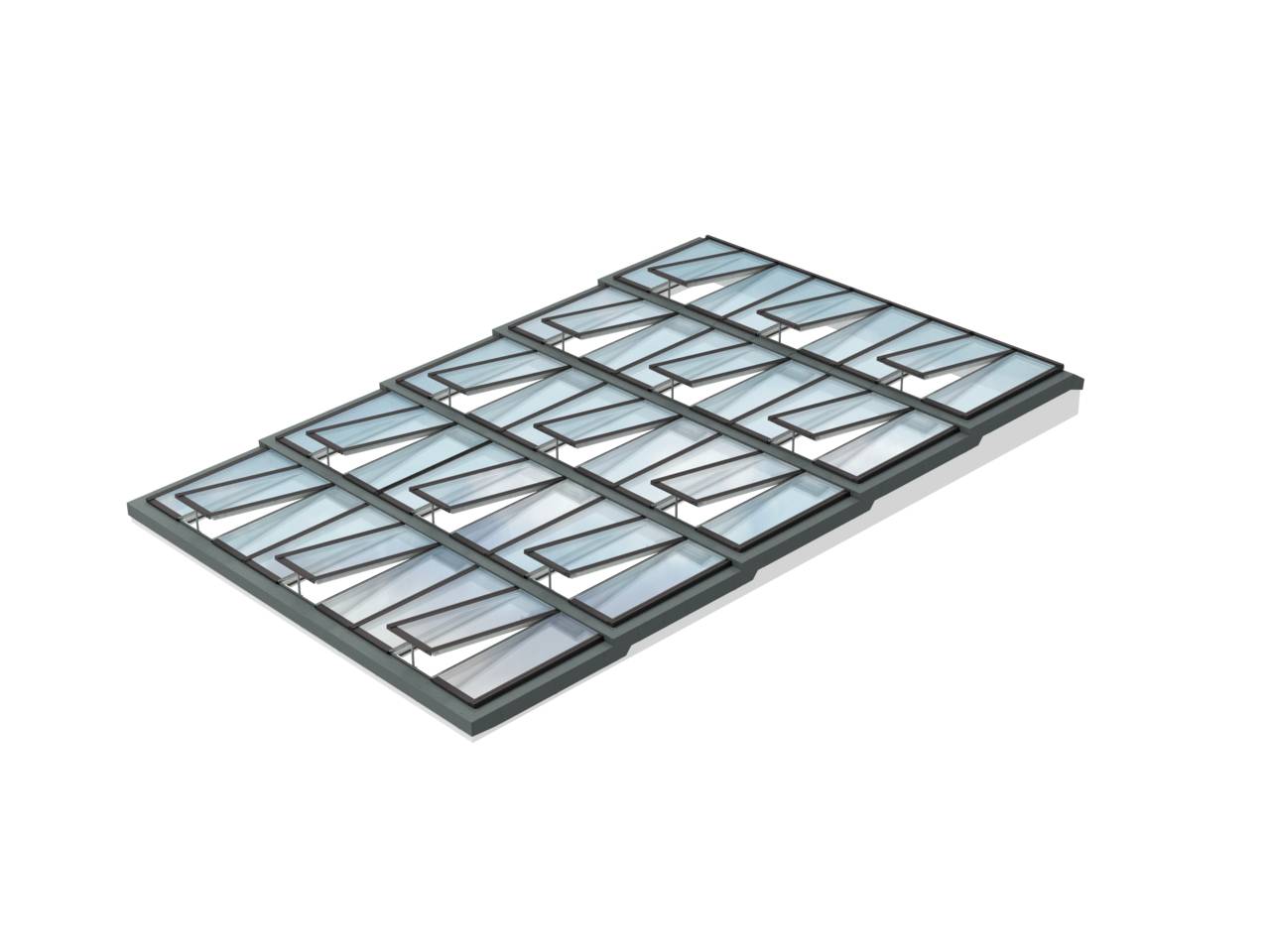

Multiple rows of skylight modules connected to create a large glass roof.

Jump to:

BOS

+44 (0) 1592 778916 Website

Application

Flat roof.

Rooflight installation pitch 5-25°.

Description

The Step Longlight and Step Ridgelight solutions enable great daylight design in buildings with large, open atriums.

The solution consists of multiple rows of VELUX modular skylights connected as Step Longlights 5-25°, Step Ridgelights 25° or as Step Ridgelight 5-25° on Girder.

The rows are connected by a factory finished flashing that ensures drainage of water between the rows. The rows must be supported by structural beams on the inside of the building.

Features and benefits:

Prefabricated solution for large, glazed roofs.
Elegant design with option of slim beams between the rows/ steps.
Maximum daylight through the roof.

Glazing:

Insulated glazing (Ug values down to 0.5 W/m²K).
Toughened outer glass.
Laminated inner safety glass.
Falling through safety.
Sound insulation (traffic, rain and hail).
Warm edge spacer (protects insulation properties over time and minimizes the risk of condensation at pane edges).
Step pane (leads water off the unit).
Sun protection coating (optional).

General information

Color	Other Guidance for specification option: RAL colours available.
Finish	Powder-coated Lacquered Guidance for specification option: Scratch-resistant powder lacquer. Coated Guidance for specification option: Sun protection coating (optional).
Material	Aluminium Composite Guidance for specification option: (80% Fibreglass/20% Polyurethane).
Shape	Rectangle Guidance for specification option: Modules in a step formation.
Width	675 mm 750 mm 800 mm 900 mm 1000 mm
Height	1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm 2400 mm 2600 mm 2800 mm 3000 mm Show more
Warranty description	Ten year

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/460 Rooflights

Specification data - Framed rooflights

Form	Modular rooflights.
Size	675 x 1200 mm. 675 x 1400 mm. 675 x 1600 mm. 675 x 1800 mm. 675 x 2000 mm. 675 x 2200 mm. 675 x 2400 mm. 750 x 1200 mm. 750 x 1400 mm. 750 x 1600 mm. 750 x 1800 mm. 750 x 2000 mm. 750 x 2200 mm. 750 x 2400 mm. 800 x 1200 mm. 800 x 1400 mm. 800 x 1600 mm. 800 x 1800 mm. 800 x 2000 mm. 800 x 2200 mm. 800 x 2400 mm. 900 x 1200 mm. 900 x 1400 mm. 900 x 1600 mm. 900 x 1800 mm. 900 x 2000 mm. 900 x 2200 mm. 900 x 2400 mm. 900 x 2600 mm. 900 x 2800 mm. 1000 x 1200 mm. 1000 x 1400 mm. 1000 x 1600 mm. 1000 x 1800 mm. 1000 x 2000 mm. 1000 x 2200 mm. 1000 x 2400 mm. 1000 x 2600 mm. 1000 x 2800 mm. 1000 x 3000 mm.
Product performance	-
Fire performance	-
Fire resistance	REI 30.
Reaction to fire	Class B, s1-d2.
Whole window U-value	Double glazed - 1.1 W/m²K (centre pane) / Uw: 1.4 W/m²K; Triple Glazed - 0.7 W/m²K (centre pane) / Uw: 1.0 W/m²K (glazed module).
Frame	-
Material	Pultruded composite. Guidance for specification option: (80% Fibreglass/20% Polyurethane) high strength, low thermal conductivity, low linear expansion coefficient frame.
Finish	-
Coating	Polyester powder coated.
Colour	Scratch-resistant powder lacquer.
Glazing or infill	-
Type	Toughened outer glass and laminated inner safety glass solution.
Construction	Double glazed. Triple glazed.
Colour	RAL Colours available.
Coating	Low E coating. Sun 1. Sun 2.
Operation	-
Type	HFC. HVC.
Control	Actuator chain stroke.
Execution	Installation of framed rooflights.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Denmark
Material	Aluminium Composite Guidance for specification option: (80% Fibreglass/20% Polyurethane).

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1
