EasyGate Elite
Verified by manufacturer over a year ago
Narrow swing barrier speedgate.
Application
- Corporate Offices
- Government buildings.
- Airports.
- Leisure clubs
- VIP Areas
Description

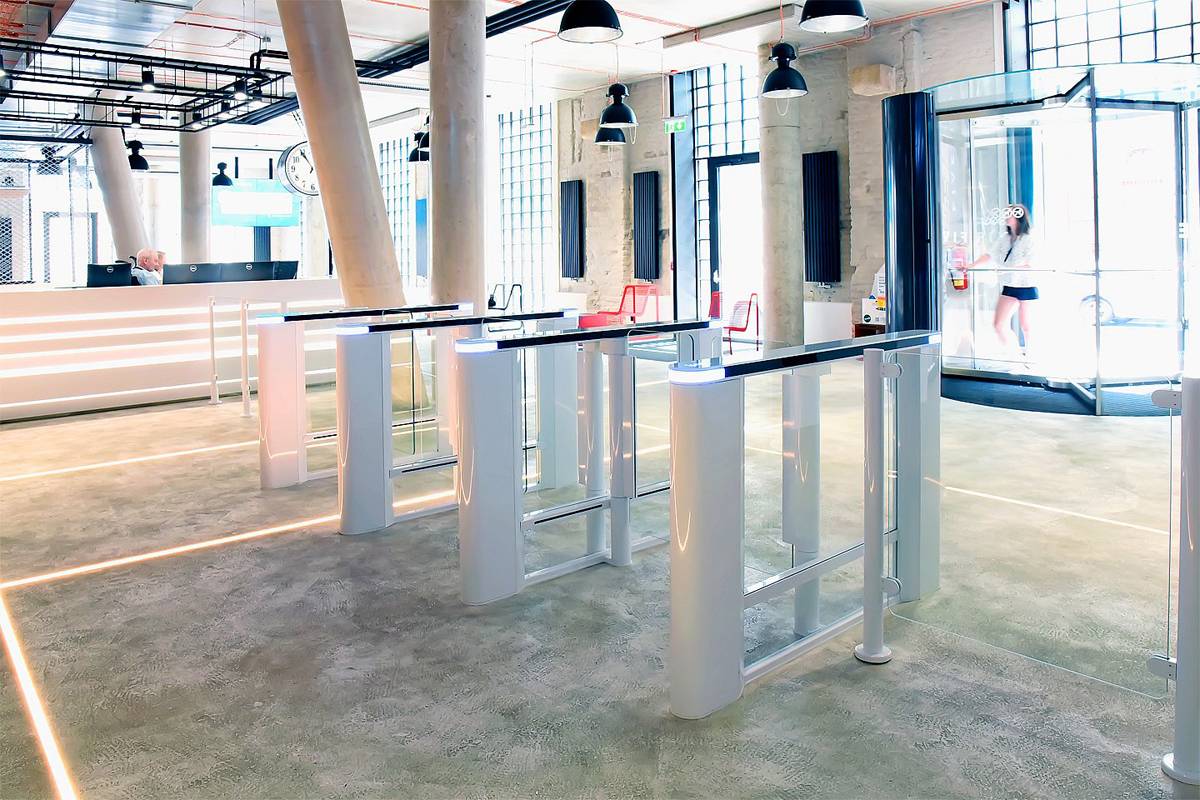

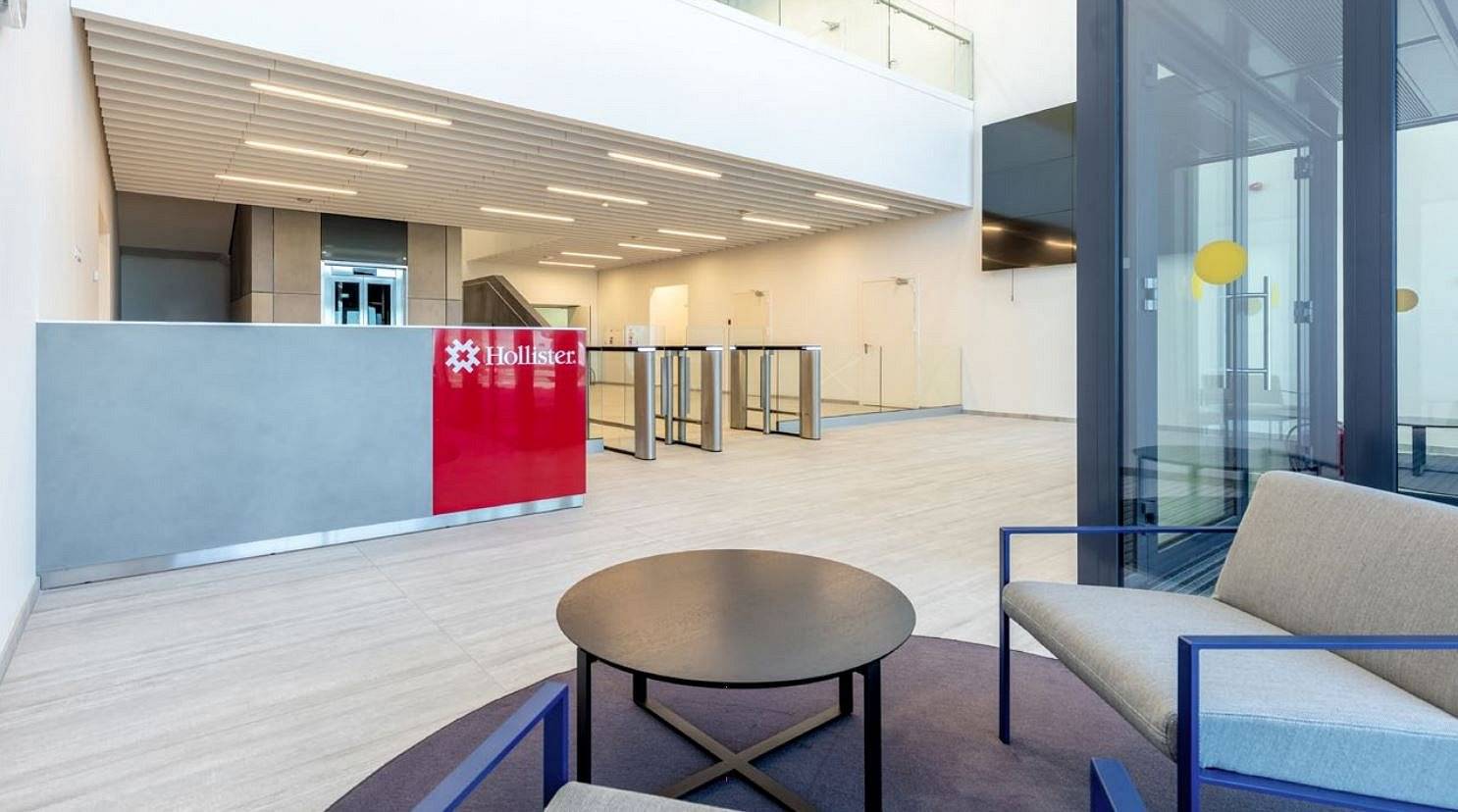

The Centurion EasyGate ELITE is our architecturally inspired swing barrier speedgate designed to ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers that swing away from an authorised user in a friendly door like motion in conjunction with optical tailgate detection technology to provide a high throughput / high security gate. The swing barrier design ensure the same narrow pedestal can be used for both standard width and DDA lanes.
General information
Warranty description | One year |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpecPack | 08200 Doors, Door Frames and Hatches |
Specification data - Glazed half-height turnstiles
Leaves | |
Type | Toughened Clear Safety Glass.Manufacturer guidanceOptions for adding custom logos on glass barriers. |
Thickness | 8 mm. |
Finish | |
Colour | Natural. |
Surrounds | |
Type | Sheet metal. |
Material | Stainless Steel (304 Brushed).Manufacturer guidancecoloured stainless steel as a cost option. 316 stainless steel - Marine grade. RAL powder coat paint finishes. |
Rotation | Card In / Card OutCard In / Free Exit |
Operation | Electrical.Manufacturer guidanceDoors will default to open in a fire emergency. |
Dimensions | |
Overall depth | 1400 mm. |
Overall height | 990 mm.Manufacturer guidancePedestal height is 990 mm. glass barrier heights range from 990 - 1800 mm. |
Passage width | 550 mm650 mm750 mm900 mm1000 mm1100 mmManufacturer guidanceCustomisable between 500 mm and 1100 mm. |
Control units | |
Device acceptance | Biometric controls.Card reader.Coin acceptance units.Intercom.Proximity detection devices.Remote controls. |
Operational voltage | 230 Volts operational voltage. Control electronics 12 Volts DC. |
Finish | |
Worked finish | Brushed. |
Accessible design | DDA compliant. Manufacturer guidanceDDA compliance only applies when gates are at the correct spacing. |
Operating temperature range | 10°C to 50°C (with heater). |
Base options | Anti-climb pressure sensors. Expanded alarm output with WAV player to record messages (Alarm alerts / invalid card warnings). |
Security | Fast-acting barriers close behind authorised users to deter tailgating. |
Sensors | 30 IR sensors detect tailgating and unauthorised entry. |
Accessories | Smoked glass top. Manufacturer guidanceColour glass top options (Low Iron glass with custom paint finish). |
Opening speed | 0.7 seconds. |
LED pictograms | Wait Mode (White Indicator). |
MeanTimeBetweenFailure | 3,000,000 operations. |
Operation | Normally closed. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
