Application

Designed for use in fast throughput environments including office lobby and leisure applications.

Description

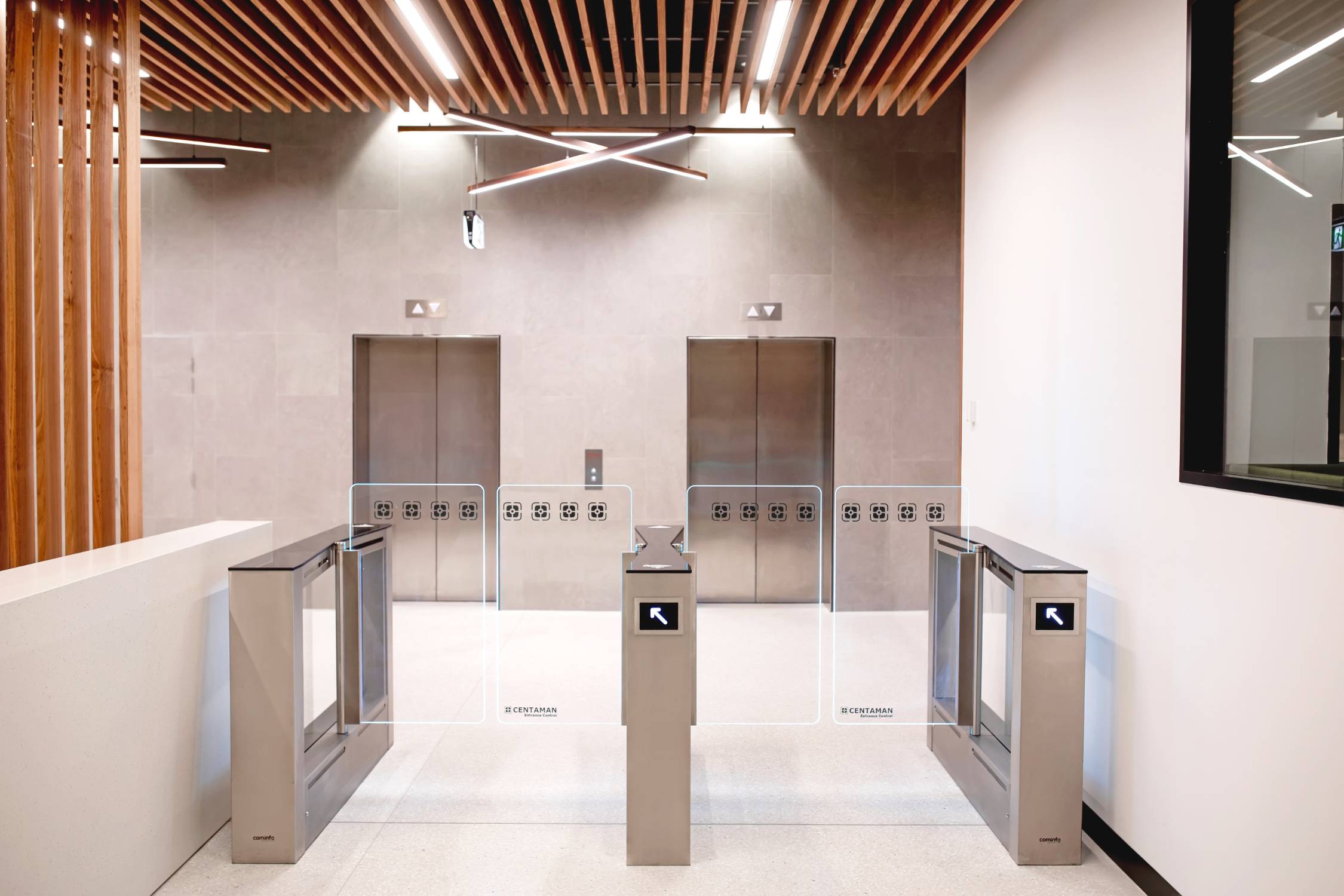

The Centurion Easygate SPT is our state-of-the-art swing barrier speedgate designed to ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers that swing away from an authorised user in a friendly door like motion in conjunction with optical tailgate detection technology to provide a high throughput / high security gate. The Swing barrier design ensure the same narrow pedestal can be used for both standard width and DDA lanes. This gate is available in square-edged cabinet profiles or rounded-edged profiles.

General information

Warranty description

Three year

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Toughened Clear Safety Glass.

Manufacturer guidance

Options for adding custom logos on glass barriers and/or colour LED indicators.

Thickness

8 mm.

Surrounds

-

Type

Sheet metal.

Material

Stainless steel (304 Brushed).

Rotation

Card In / Card Out

Card In / Free Exit

Operation

Electrical.

Dimensions

-

Overall width

1500 mm.

Overall depth

1260 mm (max).

Overall height

999 mm.

Manufacturer guidance

Pedestal height is 990 mm. glass barrier heights range from 990 - 1800 mm.

Passage width

550 mm

650 mm

750 mm

900 mm

920 mm

1000 mm

Manufacturer guidance

Lane width is customisable within the ranges of 550-1050 mm

Control units

-

Device acceptance

Card reader.

Biometric controls.

Coin acceptance units.

Intercom.

Proximity detection devices.

Remote controls.

Operational voltage

Power supply: 230 Volts. Control Electronics: 13.8 Volts DC.

Finish:

Top Cover: 8 mm Tempered Safety Glass.

Accessible design

DDA compliant.

Manufacturer guidance

DDA compliance only applies when gates are at the correct spacing.

Security

Fast-acting barriers close behind authorised users to deter tailgating.

Sensors

36 IR sensors detect tailgating and unauthorised entry.

Opening speed

0.5 Seconds.

LED pictograms

Wait Mode (White Indicator).
Access Granted (Green Indicator).
Illegal Transaction (Red Indicator).

MeanTimeBetweenFailure

5,000,000 operations.

Operation:

Normally Closed.

Profile

cabinet: rounded edged

cabinet: square edged

BIM objects

Platform Compatible Version
Revit
-

1

Literature

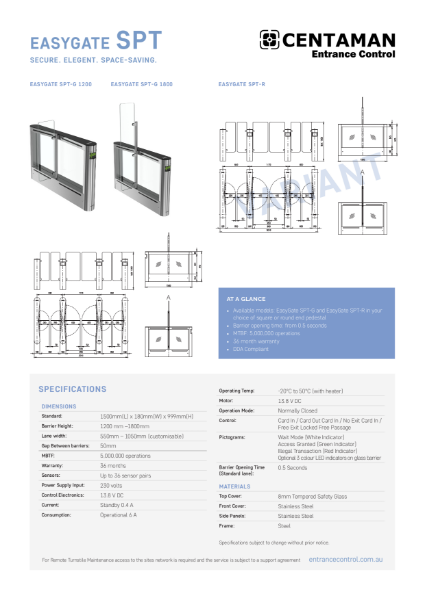

EasyGate SPT - Technical specification

EasyGate SPT - Technical specification

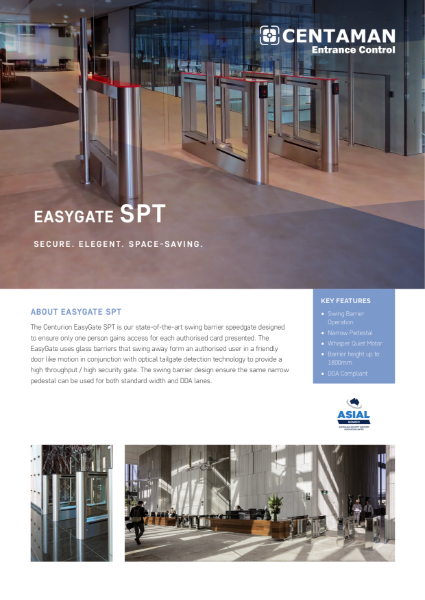

EasyGate SPT - Brochure
