EasyGate IM

Verified by manufacturer over a year ago

Centaman Entrance Control

Swing barrier speed gate with intelligent traffic control features.

Jump to:
+61 2 9906 7522 Website

Application

  • Corporate Offices
  • Government buildings
  • Sports stadia
  • Leisure clubs
  • Manufacturing plants

Description

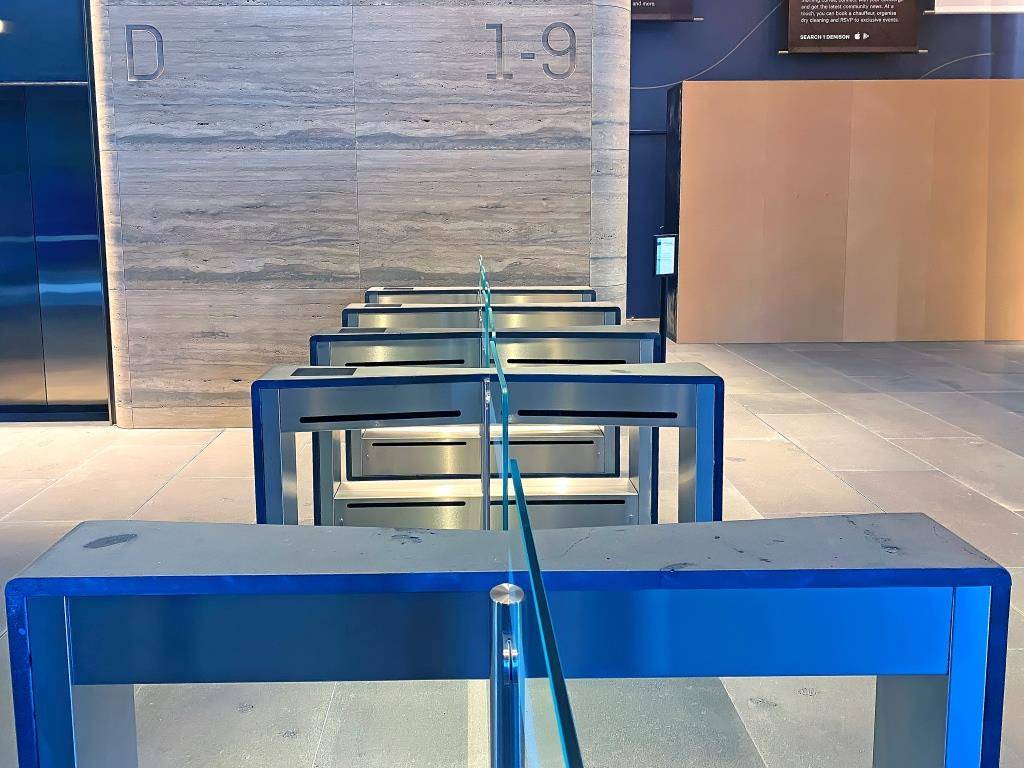

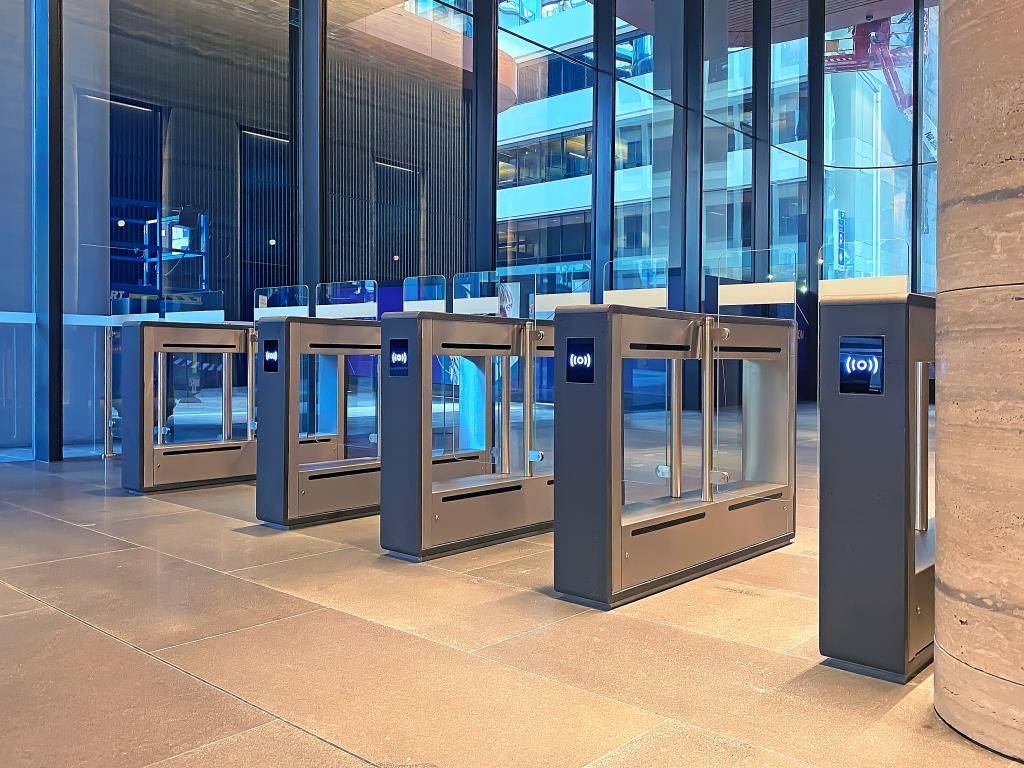

The Centurion EasyGate IM is our state-of-the-art swing barrier speedgate designed to ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers that swing away from the authorised user in a friendly door like motion in conjunction with optical tailgate detection technology to provide a high throughput / high security gate. The swing barrier design ensure the same narrow pedestal can be used for both standard width and DDA lanes. This gate has the added aesthetic versatility of having multiple cladding options to tie in with the surrounding lobby design. Options include but are not limited to; marble, granite, wood, and corian.

General information

Warranty description

Three year

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Toughened Clear Safety Glass.

Manufacturer guidance

Options for adding custom logos on glass barriers.

Thickness

8 mm.

Surrounds

-

Type

Sheet metal.

Material

Stainless steel (304 Brushed).

Rotation

Card In / Card Out

Card In / Free Exit

Operation

Electrical.

Manufacturer guidance

Doors will default to open in a fire emergency.

Dimensions

-

Overall width

995 mm.

Overall depth

1500 mm.

Overall height

995 mm.

Manufacturer guidance

Pedestal height is 990 mm. glass barrier heights range from 990 - 1800 mm.

Passage width

550 mm

650 mm

750 mm

900 mm

920 mm

1000 mm

Manufacturer guidance

Lane width can be modified to 1200 mm and 1500 mm with special add-ons - refer to EasyGate SPT WIDE Technical data sheet for further information.

Control units

-

Device acceptance

Card reader.

Biometric controls.

Coin acceptance units.

Intercom.

Proximity detection devices.

Remote controls.

Operational voltage

Power supply Input: 230 volts. Control electronics: 12 V DC.

Finish

-

Worked finish

Brushed.

Finish

Top cover: Corian. Front Cover: Corian. Mulitple finishes available- corian granite, wood, stone, marble.

Manufacturer guidance

Other options are available for top cover.

Accessible design

DDA compliant.

Manufacturer guidance

DDA compliance only applies when gates are at the correct spacing.

Security

Fast-acting barriers close behind authorised users to deter tailgating.

Sensors

36 IR sensors detect tailgating and unauthorised entry.

Opening speed

0.5 seconds.

LED pictograms

Wait Mode (White Indicator).
Access Granted (Green Indicator).
Illegal Transaction (Red Indicator.

MeanTimeBetweenFailure

5,000,000 operations.

Operation:

Normally Closed.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

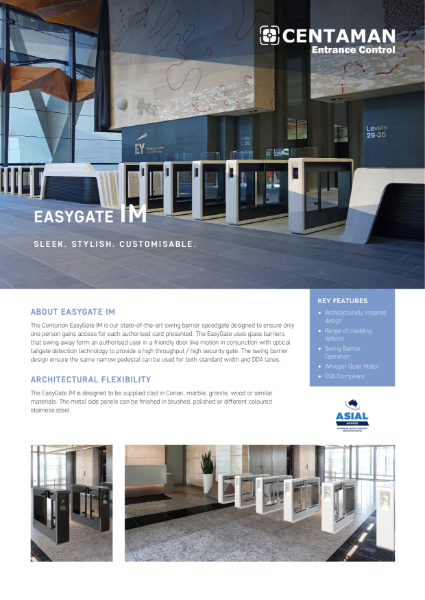

EasyGate IM Brochure

EasyGate IM Brochure

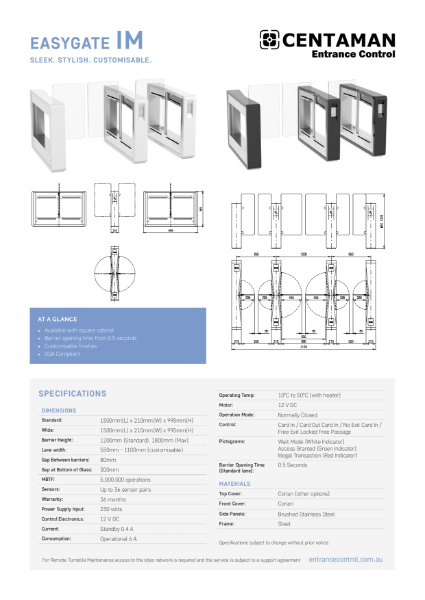

EasyGate IM - Technical specification
