EasyGate LC / Lift Call
Verified by manufacturer over a year ago
Swing barrier speedgate with options for building in 3rd party hardware.
Application
Most suitable for corporate offices.
Description

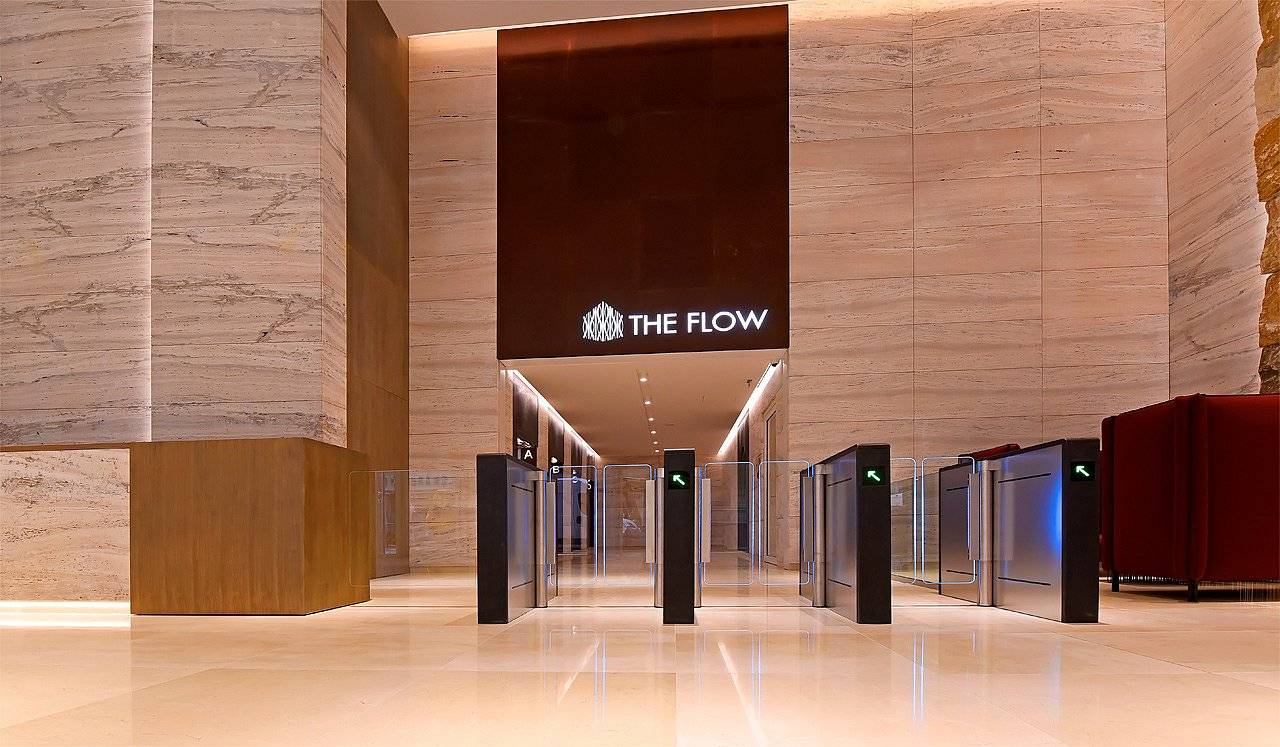

The Centurion EasyGate LiftCall is a designed orientated swing barrier speedgate intended to ensure only one person gains access for each authorised card presented. The EasyGate uses glass barriers that swing away from authorised user in a friendly door like motion in conjunction with optical tailgate detection technology to provide a high throughput / high security gate.

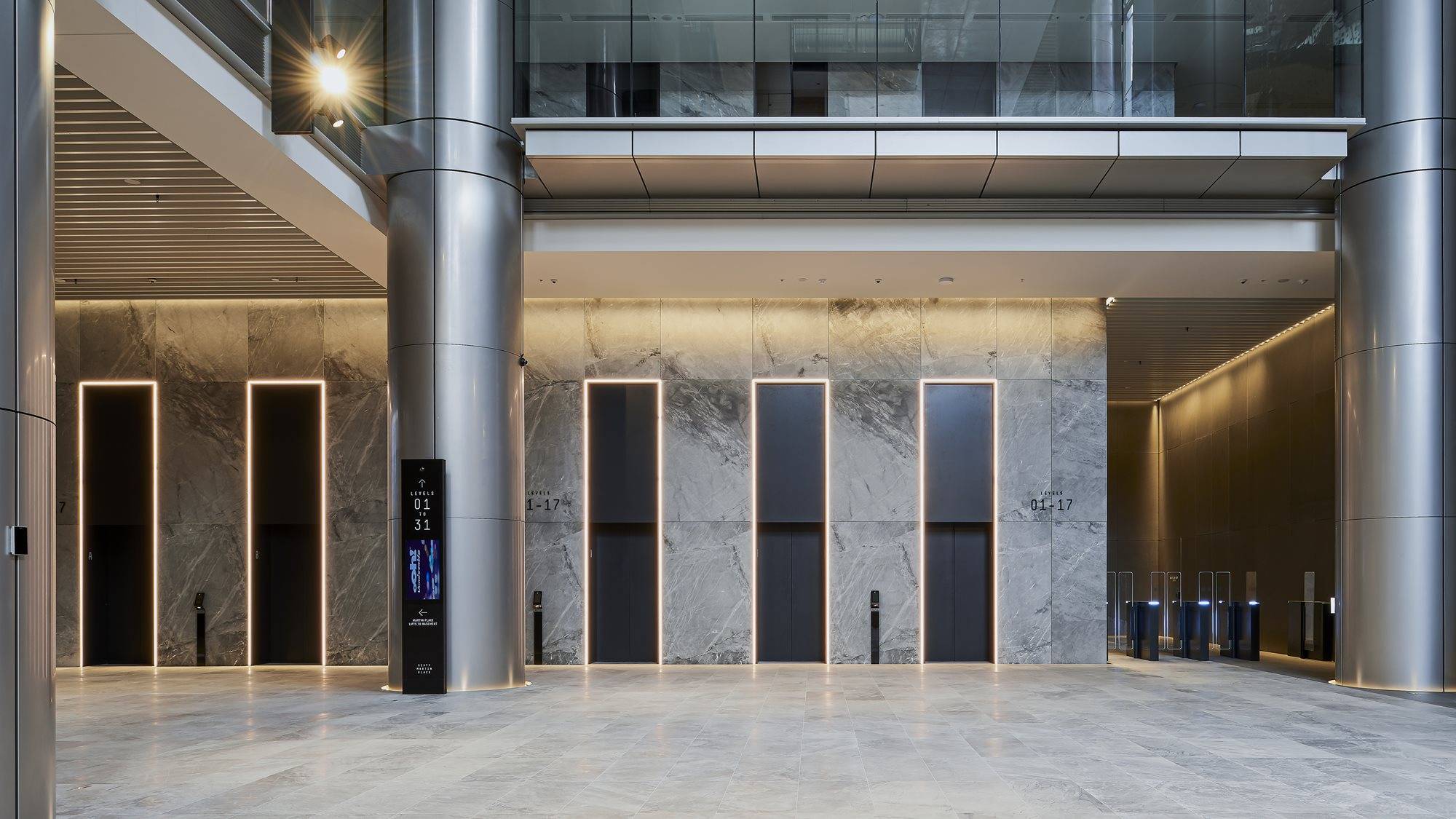

The EasyGate LiftCall is designed to be integrated with destination lift control system. The pedestal is designed to be as narrow as possible but wide enough to fit a 3rd party destination lift control display.
General information
Warranty description | Two year |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpecPack | 08200 Doors, Door Frames and Hatches |
Specification data - Glazed half-height turnstiles
Leaves | |
Type | Toughened Clear Safety Glass.Manufacturer guidanceOptions for adding custom logos on glass barriers and/or colour LED indicators. |
Thickness | 8 mm. |
Surrounds | |
Type | Sheet metal. |
Material | Stainless steel (304 Brushed). |
Rotation | Card In / Card OutCard In / Free Exit |
Operation | Electrical. |
Dimensions | |
Overall depth | 1400 mm. |
Overall height | 990 - 1800 mm. |
Passage width | 550 mm650 mm750 mm900 mm920 mm1000 mmManufacturer guidanceCustomisable |
Control units | |
Device acceptance | Card reader.Biometric controls.Coin acceptance units.Intercom.Proximity detection devices.Remote controls. |
Operational voltage | Power supply: 230 Volts. Control Electronics: 12 Volts DC. |
Finish | |
Worked finish | Brushed. |
Finish: | Top Cover: 8 mm Smoked Glass. Front Cover: Smoked glass. Manufacturer guidanceOther options available |
Accessible design | DDA compliant. Manufacturer guidanceDDA compliance only applies when gates are at the correct spacing. |
Security | Fast-acting barriers close behind authorised users to deter tailgating. |
Sensors | Up to 30 sensor pairs. |
Opening speed | 0.7 Seconds. |
LED pictograms | Wait Mode (White Indicator). |
MeanTimeBetweenFailure | 3,000,000 operations. |
Operation: | Normally Closed. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

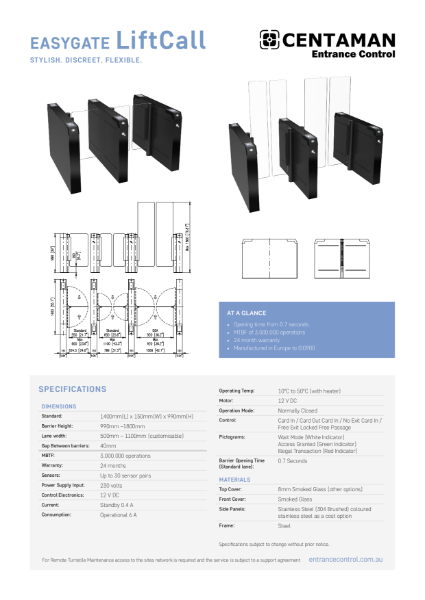

Easygate LC- Technical Specification
EasyGate Lift call - Brochure
